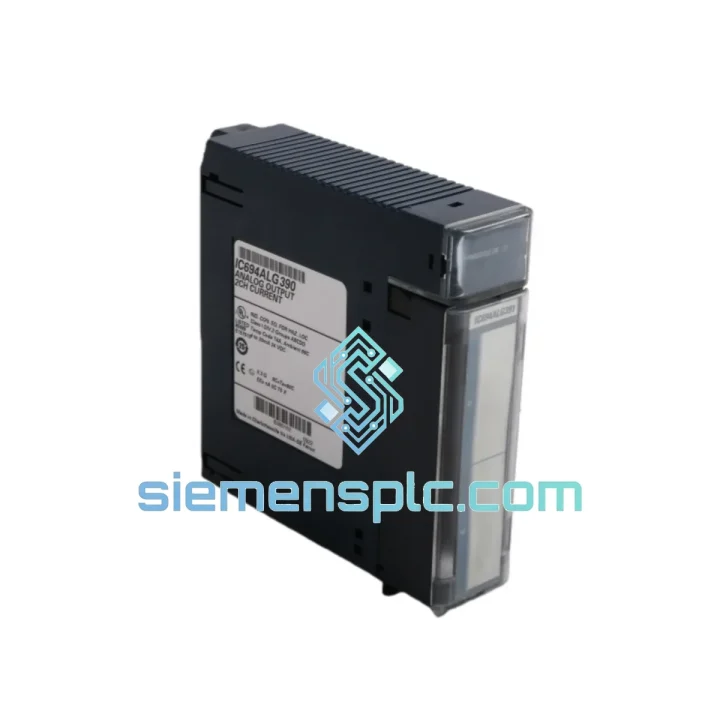

GE IC694ALG390 Analog Output Module

GE IC694ALG390 — Stop the Clock on Your Downtime. Ship Today.

Your Series 90-70 rack just threw a fault. The analog output channels are dead. The control valve is stuck. The line is down. Every hour costs you money — and you already know it. The GE IC694ALG390 is in stock at our Xiamen warehouse right now. We’ve done this hundreds of times. We know what you need: the right module, verified, boxed, and moving toward your dock before end of business.

This is not a catalog listing. This is a live spare. If you’re reading this at 2 AM during a shutdown, send the email. We respond fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Series 90-70 systems teach you patterns. Here’s what actually goes wrong with the IC694ALG390 and what to check before you pull the module:

Fault Code 0x0083 / Analog Output Channel Fault: Nine times out of ten this is a wiring issue before it’s a module issue. Check your field loop resistance. The IC694ALG390 current output has a compliance voltage ceiling — if your total loop resistance (cable + load) pushes the required drive voltage above that ceiling, the channel will fault and report an error. Measure loop resistance at the terminal block before condemning the module.

All 8 Channels Dead After CPU Restart: Check your hardware configuration in Proficy ME. The IC694ALG390 supports configurable fault-state behavior — channels can be set to hold last value, go to a defined safe-state output, or zero out on CPU fault or STOP mode. If someone changed this setting and the process expects hold-last-value, a CPU restart will drive all outputs to zero and look like a dead module. Verify the fault-state configuration before swapping hardware.

Replacement Procedure — Field Checklist:

• Power down the rack or use hot-swap procedure if your system supports it. The IC694 backplane does not natively support hot-swap on I/O modules — confirm with your system integrator before attempting live swap.
• Document the slot position. The IC694ALG390 is rack-slot addressed; the CPU maps I/O by physical slot. Reinstall the replacement in the identical slot number or update your hardware configuration in Proficy ME.
• There are no DIP switches or rotary address switches on this module. Addressing is entirely backplane-based and managed through the hardware configuration tool. No physical configuration required on the module itself.
• After seating the replacement, perform a hardware configuration download from Proficy ME to ensure the CPU recognizes the new module and re-initializes all channel parameters including fault-state behavior and output type (mA vs V) per channel.
• Verify firmware revision. If your replacement unit carries a different firmware suffix than the original (e.g., IC694ALG390D vs IC694ALG390), confirm compatibility with your CPU firmware version. Mismatched firmware can cause intermittent channel errors or configuration rejection.
• Run a forced-output test on all 8 channels from the programmer before returning the loop to automatic control. Confirm field device response at both 4 mA (0%) and 20 mA (100%) endpoints.

Common Mistake: Engineers sometimes order the IC694ALG221 or IC694ALG222 (analog input modules) when they mean the IC694ALG390 (analog output). Double-check your module label — the suffix ALG390 is output only. It cannot read field signals.

Reliability in Harsh Conditions

The Series 90-70 platform was engineered for the plant floor, not the server room. The IC694ALG390 reflects that design philosophy. The module’s PCB is conformally coated to resist moisture ingress and condensation — a real concern in coastal chemical plants, offshore platforms, and food processing environments where humidity swings are constant.

Vibration tolerance is built into the IC694 mechanical design. The rack-and-backplane connector system uses a robust edge connector with positive retention, maintaining signal integrity under the continuous low-frequency vibration typical of compressor rooms, pump stations, and heavy press lines. We’ve seen IC694ALG390 units pulled from 20-year-old installations in steel mills that still test within specification.

Thermal performance is equally solid. The 0°C to 60°C operating range covers the vast majority of industrial panel environments, and the module’s power dissipation is low enough that it does not require forced-air cooling in standard rack configurations. In high-ambient installations, ensure your panel HVAC is maintaining rack inlet temperature below 55°C with adequate margin.

Every unit we ship from Xiamen is tested in a live Series 90-70 rack. We don’t bench-test with a power supply and a meter. We seat the module, download a hardware configuration, and force all 8 output channels through their full range — 4 mA to 20 mA on current channels, 0 V to 10 V on voltage channels — and verify the output at the terminal block with calibrated instrumentation. If it doesn’t pass, it doesn’t ship.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. For urgent orders, here’s how the timeline works:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
• DHL Express transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 3–4 days, Australia 3–4 days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage. Transit times comparable to DHL.
• Commercial invoice and packing list prepared to your specifications. We can declare as spare parts for industrial machinery (HS Code 8537.10) to facilitate customs clearance in most jurisdictions.
• Tracking number provided within 4 hours of dispatch. We monitor shipments and proactively contact you if customs holds or delays occur.
• Emergency freight: For multi-unit orders or time-critical plant restarts, contact us directly for charter freight or hand-carry options. We’ve done it before.

We understand that a module sitting in customs is as useless as a module sitting on a shelf. Our logistics team handles export documentation daily and knows the paperwork requirements for industrial electronics in your destination country.
