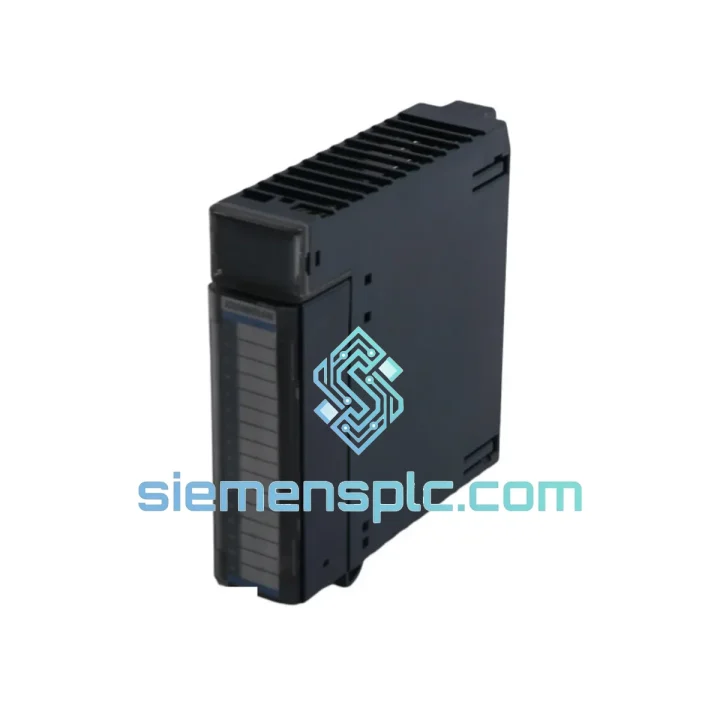

GE IC694MDL646 PLC Output Module

GE IC694MDL646 — Line Down? Sixteen Outputs Silent? Ship It Today Before the Next Shift Starts

You are not reading a product page. You are looking at the fastest path back to production. The IC694MDL646 is a 16-point, 24 VDC PNP sourcing output module for the GE PACSystems RX3i platform. When this card fails, every solenoid valve, actuator, and relay coil wired to it goes dark simultaneously. Sixteen points. One module. One failure that shuts down an entire process cell.

We hold physical stock of the GE IC694MDL646 in our Xiamen warehouse — not a purchase order pending with a distributor, not a unit allocated to another customer. It is on the shelf, serialized, inspected, and ready to pack. Orders confirmed before 15:00 CST ship the same business day via DHL Express or FedEx International Priority. Tracking is issued within two hours of dispatch. No broker chain. No “we’ll check availability” reply. One message, one confirmation, one shipment.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on RX3i systems produce a short, repeatable list of IC694MDL646 failure signatures. Matching the symptom to the root cause before pulling the module is the difference between a 20-minute recovery and a four-hour diagnostic loop.

All 16 outputs dead, slot LED off, no CPU fault logged. Measure 24 VDC directly at the field terminal block — not at the panel power supply, not upstream at the breaker. A dark LED with confirmed backplane power and zero field voltage at the terminals means the field supply circuit has opened: tripped breaker, blown fuse, or a wiring break between the supply and the module’s field power terminals. Restore field power first. If field voltage is confirmed present and the LED stays off, the module has failed internally. Order the replacement now — do not waste time on further in-situ testing.

CPU Fault 0x0083 — Internal hardware fault. Reseat the module once. If the fault clears and holds through a complete production cycle, a connector seating issue was the cause. If the fault returns within two scan cycles of reinsertion, the module has failed. Stop reseating — repeated extraction on a failed module risks damaging the backplane connector pins. Escalate to procurement immediately.

CPU Fault 0x0085 — Backplane communication loss. Before ordering a replacement, physically inspect the backplane slot. Bent pins, metallic debris, or oxidation on the connector will fault every module inserted into that slot. Clean with contact cleaner and a non-metallic brush. Inspect under magnification if available. Insert the replacement only after the slot is confirmed clean. If the fault persists with a known-good module, the backplane itself is the fault source — not the IC694MDL646.

Intermittent dropout on specific output points. Clamp-meter the load current on the affected outputs under normal operating conditions. The IC694MDL646 applies electronic current limiting at 0.5 A per point. Solenoid coils with shorted turns, actuators with mechanical binding, or undersized field wiring with resistive heating can exceed this threshold intermittently. Repeated overcurrent events degrade the output driver transistor progressively. Identify and correct the load fault before installing the replacement — the same point will fail again if the root cause is not addressed.

Outputs switching correctly, field device not responding. Verify the COM terminal wiring. An open or floating common on a PNP sourcing output module is the most common wiring error encountered during commissioning and after panel modifications. The module is operating correctly — the return path is broken. This is a wiring fault, not a module fault.

Step-by-Step Replacement Procedure

Step 1. Open Proficy Machine Edition. Record the slot number and the I/O reference address range assigned to the IC694MDL646. Screenshot the hardware configuration. You need this to verify the replacement maps identically after power-up.

Step 2. Confirm whether the backplane is configured for hot-swap in PME. If hot-swap is enabled and the CPU is in RUN mode, replacement under power is supported. If there is any uncertainty about the configuration, coordinate a controlled shutdown. A planned 10-minute stop is better than an uncontrolled fault cascade during module extraction.

Step 3. Disconnect the removable field wiring terminal block from the module face. The IC694MDL646 uses a plug-in terminal block — the wiring harness stays intact and connected to your field devices. Label the block if adjacent modules use identical connectors.

Step 4. Press the module release latch and extract the failed unit. Before inserting the replacement, inspect the backplane connector slot for bent pins, debris, or corrosion. A damaged backplane connector will fault the replacement module immediately on insertion.

Step 5. Insert the replacement IC694MDL646 into the same slot. The module is mechanically keyed and cannot be inserted in the wrong orientation. Apply firm, even pressure until the latch engages with an audible click.

Step 6. Reconnect the terminal block. Restore field power. The RX3i CPU auto-configures the replacement module within 2 to 3 scan cycles. In PME, verify the slot status returns to OK and that the I/O reference address range matches your pre-replacement record exactly.

Step 7. Before releasing the line to automatic mode, use the PME Force Table to test each of the 16 output points individually. Force each point ON and confirm the corresponding field device responds. Force OFF and confirm de-energization. A wiring error on a single point can cause a process safety event when the line restarts — do not skip this step.

Configuration note: The IC694MDL646 carries no DIP switches, rotary selectors, or jumpers. Slot position in the IC694 backplane determines the I/O address automatically. If the original module had a non-default reference address override set in PME, that override lives in the CPU hardware configuration file — not on the module. The replacement inherits the same address automatically. No re-download of the hardware configuration is required unless the slot assignment changed. There is no firmware version matching requirement — any production revision of the IC694MDL646 is compatible with any RX3i CPU firmware version currently in service. If migrating from an IC693MDL646 (Series 90-30 platform), confirm your rack is an IC694 universal backplane before ordering — the backplane connector and form factor differ between platforms.

Reliability in Harsh Conditions

The IC694MDL646 was engineered for environments that destroy cheaper output modules within a single production season. Every unit leaves the factory with the optical isolation barrier tested at 1500 VAC for one full minute — not sampled, not batch-tested, every unit. That barrier absorbs the inductive kickback generated when solenoid valves, motor contactors, and relay coils de-energize: the voltage transients that degrade unprotected output drivers across thousands of switching cycles.

Solid-state output drivers carry no mechanical contacts to erode. Relay output modules fail from contact wear; the IC694MDL646 does not have that failure mode. In high-vibration installations — press lines, compressor skids, conveyor drives, and mobile equipment — the RX3i backplane’s positive-latch connector system maintains electrical contact integrity under continuous mechanical stress. The module does not loosen, does not intermittently disconnect, and does not generate nuisance faults from vibration-induced contact bounce.

Thermal performance is rated to 60 °C ambient. Real-world panel installations typically run 10 to 20 °C above ambient inside the enclosure due to heat accumulation from drives, power supplies, and adjacent modules. The IC694MDL646 operates within this range without derating output current. Solid-state outputs generate significantly less heat than relay-based alternatives, reducing the thermal load on the enclosure and extending the service life of adjacent components.

For coastal, tropical, and high-humidity installations, the conformal-coated PCB provides protection against moisture-induced leakage currents that cause spurious output triggering on uncoated boards. Units stored in our Xiamen warehouse are maintained in climate-controlled conditions and inspected before dispatch. What arrives at your facility is not a module pulled from a forgotten shelf — it is a unit that has been handled correctly from the moment it left the original production line.

Global Express Logistics

Our warehouse operates out of Xiamen, Fujian Province — a primary export hub with direct access to DHL, FedEx, and UPS international gateway facilities. Orders confirmed before 15:00 CST are dispatched the same business day. Every shipment leaves with a commercial invoice, packing list, and certificate of origin prepared by our in-house logistics team. No third-party freight forwarder unfamiliar with industrial control hardware is handling your documentation.

Estimated transit times from Xiamen: Southeast Asia (Singapore, Vietnam, Thailand, Malaysia, Indonesia) via DHL Express — 1 to 2 business days. Middle East (UAE, Saudi Arabia, Qatar, Kuwait) via FedEx International Priority — 2 to 3 business days. Europe (Germany, Netherlands, Poland, UK, France) via DHL Express — 3 to 4 business days. North America (USA, Canada, Mexico) via FedEx Priority — 3 to 5 business days. Australia and New Zealand via DHL Express — 3 to 4 business days. South America (Brazil, Chile, Colombia, Peru) via FedEx International — 4 to 6 business days.

For customers requiring DDP (Delivered Duty Paid) terms, we provide full HS code documentation and arrange duty-inclusive delivery — the module arrives at your facility with no additional customs handling required on your end. Tracking numbers are issued within two hours of dispatch and sent directly to your contact email. For time-critical shipments, our logistics team monitors the consignment actively and contacts the carrier directly if any transit delay is flagged.
