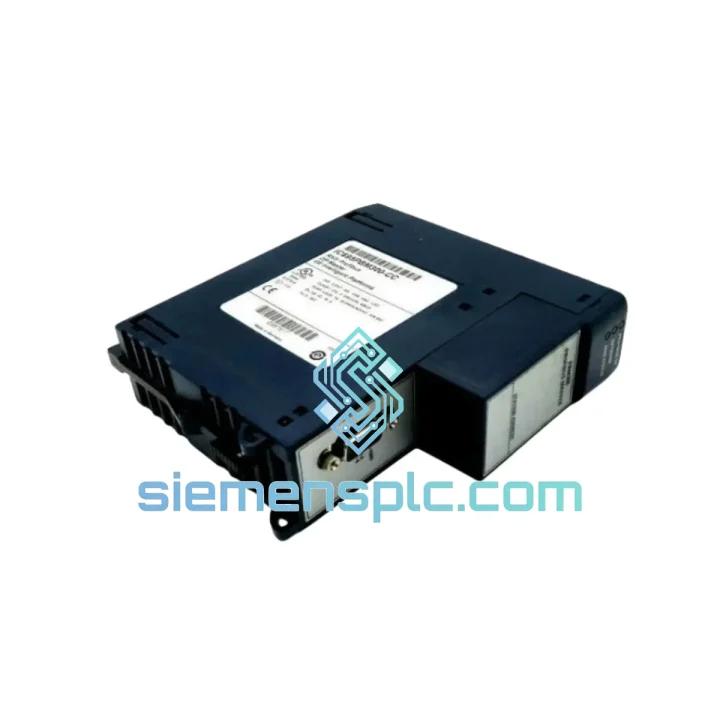

GE IC695PBM300 PROFIBUS DP Master Module – PACSystems RX3i

GE IC695PBM300 – PROFIBUS DP Master Module for PACSystems RX3i Distributed Control Architecture

The IC695PBM300 is GE’s Class 1 PROFIBUS DP Master module designed exclusively for the PACSystems RX3i universal backplane platform. It provides a direct, gateway-free interface between the RX3i CPU’s high-speed backplane bus and field-level PROFIBUS DP networks, supporting up to 125 slave nodes per master instance. In distributed manufacturing and process control environments where deterministic scan cycles and transparent diagnostics are non-negotiable, the IC695PBM300 delivers the protocol depth and hardware reliability that field engineers require.

Unlike external PROFIBUS gateways that introduce additional failure points and communication latency, the IC695PBM300 occupies a single slot in the RX3i universal backplane and exchanges I/O data with the CPU at backplane bus speeds. The module supports both DP-V0 cyclic I/O and DP-V1 acyclic services, enabling parameterization and diagnostic reads of intelligent field devices — valve positioners, variable frequency drives, distributed I/O stations — without interrupting the cyclic data exchange. This dual-service capability is critical in process industries where device health monitoring must coexist with real-time control loops.

The module’s auto baud rate detection spans 9.6 kbps to 12 Mbps, accommodating legacy PROFIBUS segments operating at lower speeds alongside modern high-density I/O racks at 12 Mbps. Configuration is performed entirely within Proficy Machine Edition (PME) using standard GSD/GSDML device description files, eliminating proprietary toolchain dependencies and reducing commissioning time on multi-vendor PROFIBUS networks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC695PBM300 implements a dual-processor architecture internally: a dedicated PROFIBUS protocol processor handles all fieldbus timing, token passing, and slave polling independently of the RX3i CPU’s application scan cycle. This separation is architecturally significant — it means PROFIBUS bus cycle jitter does not propagate into the RX3i CPU’s deterministic task scheduler, and conversely, CPU load spikes do not degrade PROFIBUS scan consistency.

The RS-485 physical layer interface incorporates galvanic isolation between the PROFIBUS segment and the module’s internal logic circuitry. This isolation barrier — typically rated at 500 V DC or higher in GE’s RX3i module family — protects the backplane and CPU from ground potential differences common in industrial environments where field wiring spans large physical distances across multiple electrical panels. In facilities with heavy motor drives or welding equipment, this isolation is not optional; it is the primary defense against common-mode noise injection into the control system.

EMC performance is addressed through the module’s shielded connector design and the RX3i backplane’s grounded card guide system. The 9-pin D-sub connector shell provides a low-impedance shield termination point, and GE’s recommended cable shield grounding practice — single-point grounding at the master end — minimizes shield current loops that would otherwise generate conducted emissions on the PROFIBUS segment. The module’s internal filtering on the RS-485 lines suppresses high-frequency transients from inductive switching events on the fieldbus cable.

DP-V1 acyclic services are managed through a dedicated message buffer separate from the cyclic I/O data area. The IC695PBM300 queues acyclic read/write requests from the RX3i CPU and executes them between cyclic polling intervals, ensuring that device parameterization or diagnostic reads do not consume cyclic bus bandwidth. This is particularly relevant in high-density slave configurations (80+ nodes) where bus utilization is already high and any additional acyclic traffic must be carefully arbitrated.

The module’s GSD file parser within PME validates slave device configurations at compile time, flagging address conflicts, baud rate mismatches, and I/O data length overruns before the configuration is downloaded to the module. This compile-time validation reduces commissioning errors that would otherwise only surface during live bus operation.

System Integration Benefits

• Elimination of External Gateways: Native backplane integration removes the serial-to-Ethernet or serial-to-backplane gateway layer, reducing BOM cost, panel space, and mean time between failures (MTBF) for the communication path.
• Deterministic Cyclic I/O Exchange: The dedicated PROFIBUS protocol processor maintains consistent bus scan cycles independent of RX3i CPU load, supporting time-critical control loops in motion and process applications.
• DP-V1 Device Diagnostics Without Cycle Interruption: Acyclic services allow engineers to read device health registers, fault counters, and parameterization data from intelligent slaves during live production without halting cyclic I/O.
• Scalable Multi-Master Configurations: Multiple IC695PBM300 modules can be installed in a single RX3i chassis, each managing an independent PROFIBUS segment, enabling architectures with 250+ total slave nodes under one CPU.
• Integrated Fault Diagnostics in CPU Fault Table: Module-level and slave-level PROFIBUS faults are surfaced directly in the RX3i CPU’s fault table, eliminating the need for separate diagnostic tools during troubleshooting.
• Hot-Swap Module Replacement: The IC695PBM300 supports RX3i hot-swap procedures, allowing module replacement during system operation with minimal process interruption — critical in continuous-process industries where planned shutdowns are costly.
• GSD/GSDML Compatibility with All Standard Slaves: Full compliance with IEC 61158 GSD file standards ensures interoperability with PROFIBUS DP slaves from any manufacturer, protecting existing field device investments during control system upgrades.
• Auto Baud Rate Detection Across Legacy and Modern Segments: The module automatically negotiates baud rate with the PROFIBUS segment, simplifying integration of legacy 93.75 kbps segments alongside modern 12 Mbps high-speed I/O racks without manual configuration changes.
• Reduced Commissioning Time via PME Integration: Hardware configuration, GSD import, slave address assignment, and I/O mapping are performed within a single engineering environment (Proficy Machine Edition), reducing the tool-switching overhead common in multi-vendor fieldbus projects.
• Long-Term Platform Availability: As part of the PACSystems RX3i product family, the IC695PBM300 benefits from GE/Emerson’s extended product lifecycle commitments, reducing obsolescence risk for long-duration plant assets.
