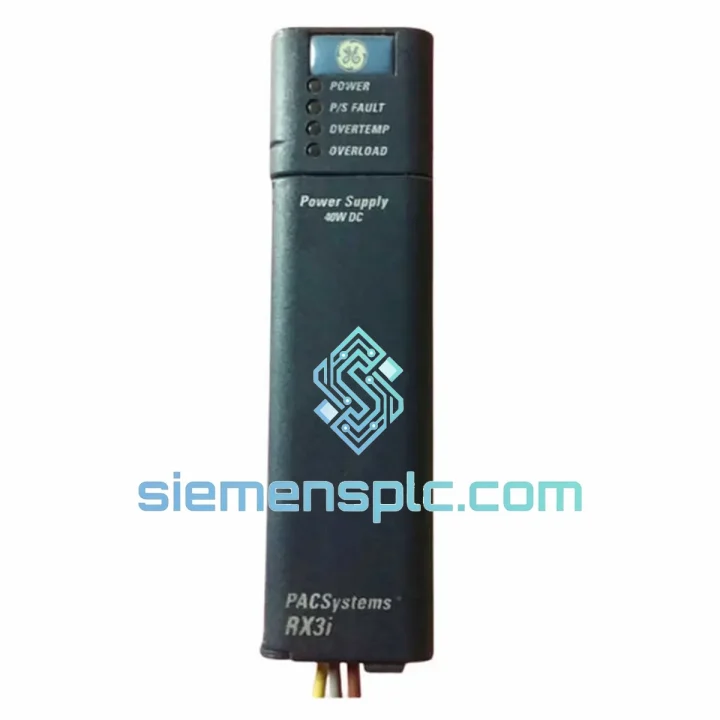

GE IC695PSD040F PLC Power Supply Module

GE IC695PSD040F PACSystems RX3i 40W DC Power Supply — Stop the Clock on Your Downtime

Every minute an RX3i rack sits dark costs money. The IC695PSD040F is the single-slot 40 W DC power supply that keeps your PACSystems RX3i backplane alive. When this module fails — and the symptoms are unmistakable: backplane LED extinguished, CPU unresponsive, all I/O offline — you need a verified replacement on your bench within 24–48 hours, not in three weeks. We stock IC695PSD040F at our Xiamen warehouse and ship globally via DHL/FedEx Express. This page is written for the engineer who has already confirmed the fault and needs to move fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the IC695PSD040F as the failed component

Before pulling the module, rule out upstream causes. Measure the 24 VDC feed at the PSU input terminals with a calibrated multimeter. Voltage must be within 18–30 VDC under load — a sagging UPS or undersized DIN rail supply is a common misdiagnosis. If input voltage is confirmed good and the backplane OK LED remains off, the PSU is the fault source.

Fault indicators specific to this module:

• Backplane OK LED (green) — extinguished or intermittent flicker at startup
• CPU module PWR LED off despite confirmed 24 VDC input
• All I/O modules unresponsive; no backplane communication
• Proficy Machine Edition reports “Controller Not Found” or “Hardware Fault” on power cycle
• Thermal shutdown: module body hot to touch (> 70 °C surface) — indicates failed internal regulation stage

Step-by-step replacement procedure:

1. Initiate controlled shutdown. If the CPU is still partially responsive, execute a controlled program stop via Proficy ME or the front-panel STOP switch. Log the current I/O state if process conditions allow.
2. Isolate 24 VDC input. Open the upstream circuit breaker feeding the PSU input terminals. Verify zero volts with a multimeter before proceeding. Do not rely on the panel main breaker alone — confirm at the module terminals.
3. Discharge backplane capacitance. Wait a minimum of 30 seconds after power removal before handling the module. The internal bulk capacitors hold charge that can damage replacement hardware if inserted prematurely.
4. Remove the faulty IC695PSD040F. Loosen the two captive screws (top and bottom of the module face). Pull the module straight out — do not rock side-to-side, as the backplane connector pins are fragile. Inspect the backplane connector for bent pins or carbon tracking before inserting the replacement.
5. Revision compatibility check. The IC695PSD040F (Revision F) is a direct drop-in replacement for all prior revisions (no suffix, A through E). No firmware update, no configuration file change, no GSD re-import required. The CPU will recognize the new PSU automatically on power-up.
6. Insert replacement module. Align the keying tab, seat firmly until both captive screws engage, then torque to 0.5 N·m. Do not overtighten — the plastic housing will crack.
7. Restore power and verify. Apply 24 VDC input. Observe the OK LED — it should illuminate solid green within 2 seconds. If it flashes, check input voltage under load; a flashing OK LED indicates the input is below the 18 VDC undervoltage lockout threshold.
8. Redundant PSU note. If your system runs dual IC695PSD040F modules for N+1 redundancy, the second module will have maintained backplane power throughout. After inserting the replacement, verify both PSU OK LEDs are solid before returning the system to AUTO.

Common misdiagnosis to avoid: A failed IC695ETM001 Ethernet module drawing excessive current can pull down the 5 V backplane rail and mimic a PSU failure. If the replacement PSU also fails to bring up the OK LED, remove all I/O modules except the CPU and retest — isolate the load before condemning a second PSU.

Reliability in Harsh Conditions

The IC695PSD040F is not a commercial-grade power supply repackaged for industrial use. GE designed the RX3i power supply family to operate continuously in environments that would degrade standard electronics within months.

Vibration and mechanical shock: The module meets IEC 61131-2 vibration requirements — 10–57 Hz at 0.075 mm displacement, 57–150 Hz at 1 g. The internal PCB uses conformal coating on all primary components, and the backplane connector is a high-retention, gold-plated design rated for a minimum of 200 insertion cycles. In mobile or high-vibration installations (compressor skids, offshore platforms), the captive screw retention system prevents the module from working loose under sustained mechanical excitation.

Thermal performance: The 40 W output rating is sustained across the full 0–60 °C operating range without derating. The internal topology uses a high-frequency switching design with a thermally optimized transformer and synchronous rectification on the output stage, minimizing heat generation at the component level. The module does not require forced-air cooling in standard panel installations — convection cooling within the backplane enclosure is sufficient up to the rated ambient.

Humidity and condensation resistance: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing. For installations in coastal or high-humidity environments (water treatment, marine), the coating prevents surface leakage currents that would otherwise cause intermittent faults on the low-voltage backplane rails.

EMC and noise immunity: The galvanic input-to-output isolation eliminates ground loops between the 24 VDC plant supply and the backplane logic rails. The module passes IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) tests, making it suitable for installation in panels adjacent to variable-frequency drives, contactors, and other high-noise switching loads without additional filtering.

Revision F improvements: GE’s Revision F designation reflects component-level changes addressing thermal cycling fatigue observed in early production units (revisions A–C) and a ripple reduction improvement introduced in Revision D. Specifying Revision F ensures you receive the most mature, field-proven build of this module.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major export hub with direct access to DHL, FedEx, and UPS international express networks. When you confirm an order for IC695PSD040F, the following process begins immediately:

• Same-day dispatch cutoff: 16:00 CST. Orders confirmed with payment before 16:00 CST on business days ship the same evening. Orders after cutoff ship the following morning.
• Packaging: Each module is individually wrapped in anti-static foam, sealed in a moisture-barrier bag with a humidity indicator card, and packed in a double-wall corrugated carton. The carton is labeled with the part number, serial/date code, and your PO reference.
• Carrier selection: DHL Express is the default carrier for most destinations — typical transit times are 2–4 business days to Europe, 3–5 days to North America, and 1–3 days to Southeast Asia. FedEx International Priority is available on request. For destinations with DHL/FedEx restrictions, we route via UPS or TNT.
• Export documentation: Commercial invoice, packing list, and certificate of origin (CO) are prepared as standard. HS code 8537.10 is declared. For customers requiring ATA Carnet, CITES, or specific import permits, notify us at order placement.
• Tracking: A tracking number is emailed within 2 hours of dispatch. We monitor shipments proactively — if a customs hold or delivery exception occurs, we contact you before you need to chase us.
• Incoterms: DAP (Delivered At Place) is standard. DDP (Delivered Duty Paid) is available for EU, UK, and Australian destinations — we handle import duties and VAT on your behalf, eliminating customs clearance delays on your end.

For genuine production-line emergencies, contact us via WhatsApp before placing the order — we can confirm stock, generate a proforma invoice, and initiate packing within the hour.
