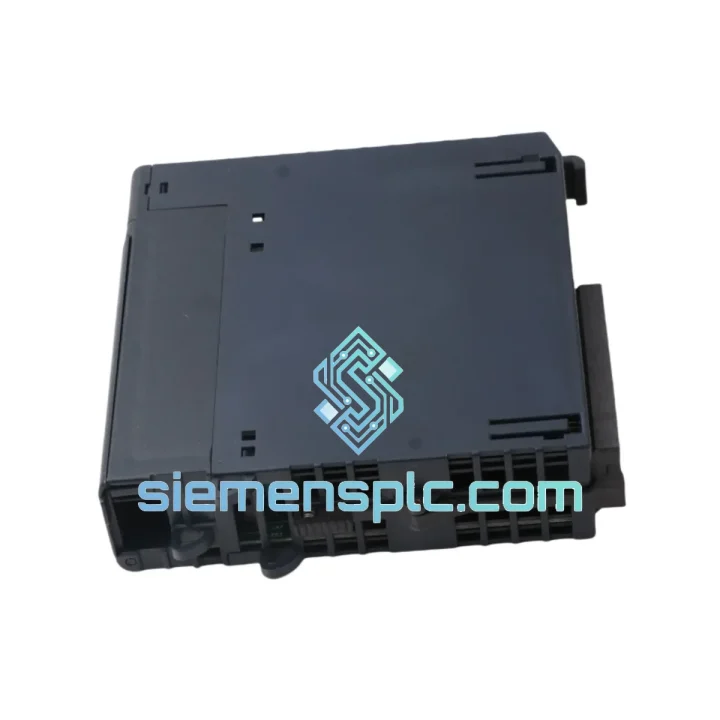

GE IC695PSD140B PLC Power Supply Module – PACSystems RX3i

GE IC695PSD140B — Regulated 40W Backplane Power for PACSystems RX3i Control Architecture

The IC695PSD140B is the primary AC-input power supply module for GE’s PACSystems RX3i platform. It occupies the dedicated power supply slot at the left-most position of the RX3i backplane and converts 120VAC or 240VAC mains input into the regulated multi-rail DC voltages required by every module installed in the rack. Without a functioning unit in this slot, the entire RX3i chassis — CPU, I/O modules, communication cards, and motion controllers — loses its power source. There is no redundant path within a single-chassis configuration; this module is the sole power conversion stage between the facility’s AC distribution panel and the PLC’s internal logic bus.

The IC695PSD140B is rated for 40W total backplane output, distributed across the +5VDC, +3.3VDC, and ±12VDC rails that the RX3i backplane exposes to installed modules. Its auto-sensing input stage accepts 120VAC at 47–63Hz and 240VAC at 47–63Hz without any hardware reconfiguration — no jumper selection, no DIP switch, no manual range setting. This characteristic makes it the standard choice for OEM machine builders and system integrators who ship equipment to both North American and European grid environments under a single part number.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC695PSD140B employs a flyback converter topology with a photocoupler-isolated feedback path. The primary-side switching transistor operates at a fixed frequency in the range of 100–200 kHz, and the output voltage regulation loop samples the +5VDC rail through an optocoupler, feeding error signal back to the primary-side PWM controller IC. This architecture ensures galvanic isolation between the AC mains and the DC logic rails — a non-negotiable requirement in industrial environments where ground potential differences between the AC distribution panel and the PLC chassis can reach tens of volts under fault conditions.

The +3.3VDC rail is derived from the +5VDC rail through a synchronous buck regulator on the secondary side, rather than a separate transformer winding. This design choice reduces transformer complexity and improves cross-regulation between the two most heavily loaded rails. The ±12VDC rails, used primarily by analog I/O modules for their signal conditioning circuitry, are generated from separate secondary windings and are lightly loaded in most configurations — typically drawing less than 15% of their rated current in a standard mixed I/O rack.

EMC performance is addressed at both the input and output stages. On the AC input side, a common-mode choke and X/Y capacitor network attenuate conducted emissions and provide immunity against fast transients per IEC 61000-4-4 (EFT/Burst, 2kV). On the DC output side, bulk electrolytic capacitors combined with ceramic bypass capacitors at each output rail suppress high-frequency switching noise to levels compatible with the RX3i backplane’s noise budget. The module’s metal housing provides shielding continuity with the backplane chassis ground, contributing to the system’s overall radiated emissions performance.

The front-panel LED indicators — OK (green) and FAULT (red) — are driven directly from the secondary-side supervisory circuit. The OK LED illuminates only when all four output rails are within their regulation windows simultaneously. The FAULT LED activates on any single-rail undervoltage or overvoltage condition, as well as on thermal shutdown. This binary status output is sufficient for field diagnostics without requiring a laptop or programming terminal, which is operationally significant in environments where Proficy Machine Edition access is restricted to maintenance windows.

System Integration Benefits

• Single-SKU Global Deployment: Auto-sensing 120/240VAC input eliminates the need for separate part numbers for North American and European installations, reducing spare parts inventory complexity for multinational OEMs.
• Deterministic Backplane Power Delivery: Regulated output rails with tight tolerance (±2% on +5VDC) ensure that CPU scan cycle timing and I/O module response times remain within their specified bounds regardless of load variation across the rack.
• Fault Transparency via LED Diagnostics: The supervisory circuit’s direct LED drive provides immediate visual indication of rail faults without requiring the CPU to be operational — critical during initial commissioning and post-fault recovery procedures.
• Thermal Headroom for High-Density Racks: The 40W rating provides adequate margin for fully populated 12-slot racks with mixed analog, digital, and communication modules, reducing the risk of thermal derating under sustained full-load operation at 60°C ambient.
• Optical Isolation Protecting Logic Integrity: The photocoupler-based isolation barrier prevents AC-side ground faults and transients from propagating into the CPU’s memory bus or the I/O module data paths, preserving program execution integrity during electrical disturbances.
• Compatibility with RX3i Redundancy Architectures: In dual-chassis redundancy configurations using IC695RMX128, each chassis requires its own IC695PSD140B, and the module’s fast startup time (<500ms to regulated output) supports rapid switchover sequences without triggering CPU watchdog faults.
• Low Conducted Emissions for Sensitive Environments: The input EMC filter meets EN 55011 Class A limits, making the module suitable for installation in shared electrical rooms alongside sensitive instrumentation and communication equipment.
• Long Platform Lifecycle Support: PACSystems RX3i is a mature platform with an extended product lifecycle commitment from GE/Emerson, ensuring continued availability of the IC695PSD140B for brownfield maintenance and expansion projects through the late 2020s.
