GE IC697CGR772 Redundant CPU Module

GE IC697CGR772 — Stop the Bleeding: Every Minute of Downtime Has a Price Tag

Your Series 90-70 redundant CPU just faulted. The standby took over — but now you’re running on a single CPU with zero fault tolerance. You have one window to restore redundancy before the next trip shuts the plant down. That window is measured in hours, not days. The GE IC697CGR772 is in stock at our Xiamen warehouse right now. We’ve shipped to steel mills in Turkey, chemical plants in India, and power stations in the Philippines — all on emergency timelines. This is what we do.

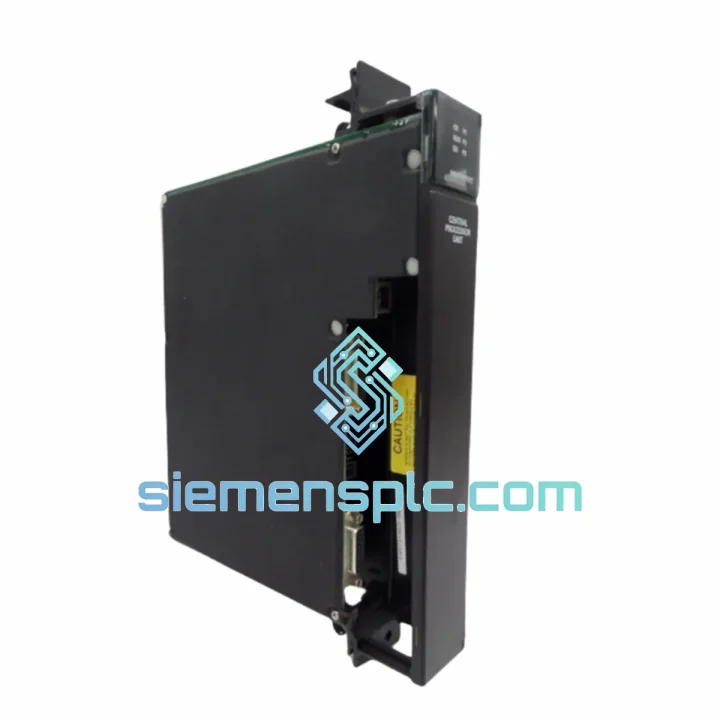

The IC697CGR772 is the hot-standby redundant CPU module for GE’s Series 90-70 rack-based PLC platform. It pairs with a secondary CPU over a dedicated redundancy link (IC697CBL700 series cable) to deliver bumpless switchover in under 10ms on CPU fault — no process bump, no output glitch, no safety interlock trip. For continuous processes where a single CPU failure cannot be tolerated, this module is the architecture. It has been the backbone of high-availability automation in power generation, oil & gas, chemical processing, and heavy manufacturing for over two decades.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that bring you here:

• CPU FAULT LED solid red: Primary CPU has faulted and standby has taken control. The faulted CGR772 must be replaced before redundancy is restored. Do not power-cycle the rack — let the standby hold the process while you swap.
• REDUNDANCY LOST alarm in Proficy ME: The redundancy link between primary and secondary racks has dropped. First check the IC697CBL700 cable seating. If the cable is intact and the alarm persists, the CGR772’s redundancy port has failed internally — module replacement is the only fix.
• MEMORY MISMATCH fault: After inserting a replacement CGR772, the system may flag a memory mismatch if the firmware revision on the new module differs from the surviving CPU. Check firmware rev via Proficy ME → Target → Properties before going online. Mismatched firmware will prevent redundancy sync.

Step-by-step hot-swap procedure (CGR772 replacement):

1. Confirm the standby CPU is in STANDBY RUN state and holding outputs — verify via Proficy ME online monitoring before touching anything.
2. Note the slot position of the faulted CGR772 in the primary rack. The CGR772 must occupy the same slot in both primary and secondary racks.
3. Power down the primary rack only using its dedicated power supply switch. Do not interrupt the standby rack.
4. Remove the faulted IC697CGR772. Inspect the backplane connector for bent pins or burn marks — if the backplane is damaged, a rack swap is required before the CPU replacement will hold.
5. Insert the replacement IC697CGR772 into the same slot. Seat firmly until the module latch clicks.
6. Power up the primary rack. The new CGR772 will boot and attempt to sync with the standby. Watch for the SYNC LED — it will flash during memory transfer (this can take 30–90 seconds depending on program size).
7. Once SYNC LED goes solid, the system is back in full redundancy. Confirm in Proficy ME: both CPUs should show RUN/STANDBY with no active faults.
8. Document the firmware revision of the replacement module in your maintenance log. Mismatched revisions between primary and standby are a latent fault waiting to surface.

Configuration notes engineers miss:

• The CGR772 does not use DIP switches for addressing — slot position and rack ID are configured in software via Proficy ME. Verify the rack ID setting matches your system topology before going online.
• If you’re replacing a CGR772 that was running Logicmaster 90-70 firmware, confirm whether your replacement unit carries LL90 or Proficy ME firmware. The two are not interchangeable without a firmware upgrade procedure.
• After redundancy sync completes, perform a forced switchover test (primary → standby → primary) before returning the system to unattended operation. A sync that looks clean can still have subtle I/O table inconsistencies that only surface on actual switchover.

Reliability in Harsh Conditions

The Series 90-70 platform was designed for the floor, not the lab. The IC697CGR772 carries an operating temperature range of 0°C to 60°C with no forced air cooling required in standard rack configurations — critical in outdoor substations and non-air-conditioned motor control rooms where ambient temperatures routinely hit 45°C in summer. The module’s conformal-coated PCB provides resistance to humidity and airborne contaminants including oil mist, coal dust, and chemical vapors — environments that kill consumer-grade electronics within months.

Vibration tolerance meets IEC 68-2-6 standards, making the CGR772 suitable for installation adjacent to large rotating machinery including compressors, pumps, and turbines where structural vibration is a constant. The backplane connector uses a high-retention locking mechanism that maintains electrical contact under continuous vibration — a failure mode that plagues cheaper third-party alternatives that use standard card-edge connectors without retention features.

Every unit we ship has been stored in climate-controlled conditions and inspected for capacitor aging, connector oxidation, and battery condition (where applicable). We do not ship modules that have been sitting in uncontrolled warehouse environments for years — a common problem with grey-market surplus stock that looks fine on the bench but fails within weeks of installation in a hot panel.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. Here’s what the timeline looks like from your purchase order to your panel:

• Order confirmed before 15:00 CST: Same-day dispatch. DHL Express tracking number issued by 18:00 CST.
• DHL Express transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage (e.g., remote US locations, certain Latin American countries).
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS code 8537.10 declared for customs clearance. We have zero tolerance for shipment holds caused by incomplete paperwork.
• Packaging: ESD-safe anti-static bag → foam-lined inner box → double-wall outer carton. The module arrives in the same condition it left our warehouse, regardless of how rough the courier handles it.
• Bulk orders: For quantities of 3+ units or combined orders exceeding 5kg, we can consolidate into a single DHL or FedEx shipment to reduce per-unit freight cost. Contact us before placing the order to arrange consolidated shipping.

We’ve shipped IC697CGR772 units to refineries in Saudi Arabia, automotive plants in Mexico, paper mills in Finland, and mining operations in Australia. Every shipment cleared customs without issue. If your country has specific import requirements for industrial electronics, let us know in advance and we’ll prepare the documentation accordingly.
