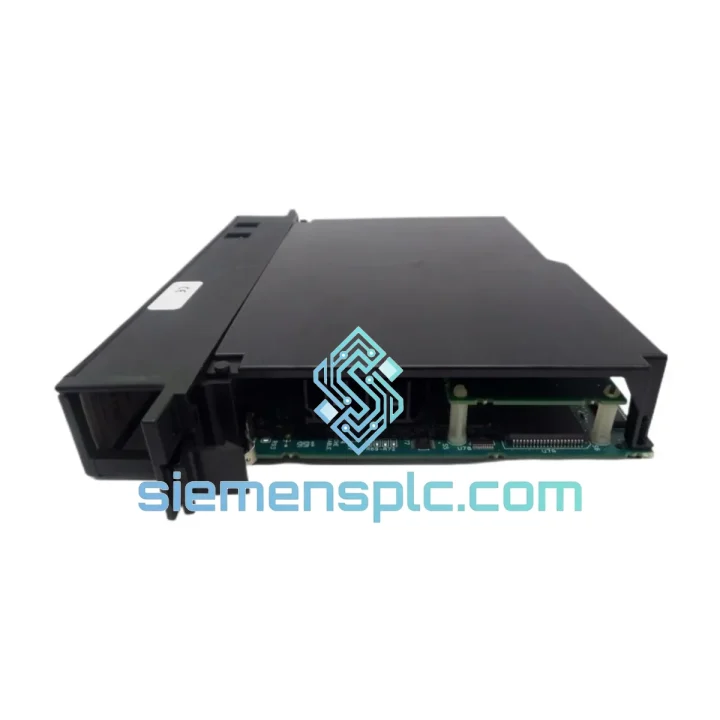

GE IC697CPM915 PLC Coprocessor Module – Series 90-70

GE IC697CPM915: Dedicated Coprocessor Module for Series 90-70 Parallel Program Execution

In large-frame PLC architectures where the primary CPU must simultaneously manage I/O scanning, ladder logic execution, communications servicing, and diagnostics, computational headroom becomes a finite and contested resource. The GE IC697CPM915 addresses this constraint at the hardware level. It is a single-slot VME-format coprocessor module designed exclusively for the GE Series 90-70 rack, providing an independent 32-bit processing engine that executes C-language application programs in parallel with the host CPU’s scan cycle. The result is a measurable reduction in host CPU utilization, tighter scan-time determinism, and the ability to deploy computationally intensive algorithms — advanced PID variants, statistical process control, model-based feedforward — without compromising the timing integrity of the primary control loop.

The Series 90-70 platform, built on the VMEbus standard (IEEE 1014), was engineered for modularity and high-slot-count configurations. The IC697CPM915 leverages this architecture by communicating with the host CPU through the shared VME backplane, exchanging data via a defined memory-mapped interface rather than through serial or fieldbus links. This backplane-native data path eliminates the latency penalties associated with external coprocessor connections and allows the host CPU to read coprocessor results within the same scan cycle in which they are produced — a critical requirement for closed-loop control applications where stale data introduces phase lag and degrades stability margins.

The module’s onboard processor handles program loading, execution scheduling, and result buffering autonomously. Once a C-language program is compiled and downloaded via GE Proficy Machine Edition or the legacy Logicmaster 90-70 toolset, the IC697CPM915 operates without further intervention from the host CPU. Execution is triggered by a handshake mechanism across the backplane, and completion status is flagged back to the host, enabling the ladder program to branch conditionally on coprocessor output validity. This architecture is particularly effective in applications where floating-point arithmetic, matrix operations, or iterative numerical methods would otherwise consume 30–60% of the host CPU’s available scan budget.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC697CPM915’s internal architecture separates execution context from the host CPU at the silicon level. The module contains its own processor, local RAM for program storage and variable workspace, and a VME bus interface controller (BIC) that arbitrates backplane access independently. This three-component structure — processor, local memory, BIC — means the coprocessor never competes with the host CPU for instruction fetch cycles. The host CPU’s scan loop proceeds uninterrupted while the IC697CPM915 executes its C-language task in its own time domain.

EMC and Signal Integrity: The module’s PCB layout follows GE’s Series 90-70 design rules, which mandate ground plane continuity across the full board area, decoupling capacitors at each power pin of active ICs, and controlled-impedance traces on the VME bus lines. The faceplate is bonded to chassis ground through the rack’s backplane connector, providing a low-impedance return path for high-frequency noise currents induced by adjacent switching power supplies or variable-frequency drives mounted in the same panel. This design approach keeps conducted emissions below the CISPR 11 Class A limits applicable to industrial control equipment.

Backplane Arbitration Logic: VMEbus access is governed by a daisy-chained bus grant mechanism. The IC697CPM915’s BIC implements a fair arbitration policy: it requests the bus only when a data transfer to or from shared memory is pending, holds the bus for the minimum number of cycles required to complete the transfer, and releases it immediately. This prevents the coprocessor from monopolizing backplane bandwidth during periods of high host CPU I/O activity — a failure mode observed in poorly designed VME coprocessors that use block-transfer modes without timeout enforcement.

Watchdog and Fault Containment: An onboard hardware watchdog timer monitors the coprocessor’s execution thread. If the C-language program enters an infinite loop or a memory access violation causes the processor to stall, the watchdog asserts a fault signal across the backplane within a configurable timeout window (typically 100–500 ms). The host CPU detects this fault flag during its next scan and can execute a defined fault handler routine — isolating the coprocessor output, switching to a fallback control mode, and logging a diagnostic event to the fault table. This fault containment boundary prevents a coprocessor software defect from propagating into the host CPU’s execution context.

System Integration Benefits

• Host CPU Scan Time Reduction: By relocating floating-point and iterative computation to the IC697CPM915, host CPU scan times in data-intensive applications typically decrease by 25–50%, restoring margin for additional I/O points or communications tasks without hardware replacement.
• Deterministic Real-Time Response: The coprocessor executes its task in a fixed time domain independent of the host scan cycle. Results are available at a predictable latency, allowing the host ladder program to consume coprocessor outputs with defined timing guarantees — essential for cascade PID loops and feedforward compensation schemes.
• Diagnostic Transparency: The module exposes execution status, fault codes, and watchdog state to the host CPU via backplane-mapped registers. These values can be surfaced in the ladder program, written to the fault table, or transmitted to an HMI for operator visibility without requiring additional diagnostic hardware.
• Non-Disruptive Program Updates: C-language programs can be downloaded to the IC697CPM915 while the host CPU remains in RUN mode, subject to the application’s safe-state logic. This capability reduces planned downtime for algorithm updates in continuous-process environments.
• Scalable Algorithm Complexity: The coprocessor’s local RAM provides workspace for large variable arrays and lookup tables that would otherwise consume host CPU memory, enabling model-based control strategies — Smith predictors, Kalman filters, adaptive gain scheduling — that are impractical on the host CPU alone.
• Platform Life Extension: Existing Series 90-70 installations can absorb new computational requirements introduced by process optimization initiatives without migrating to a new PLC platform, preserving the capital investment in racks, I/O modules, field wiring, and operator training.
• Reduced Inter-Controller Communication Load: Computations that would otherwise require a dedicated math coprocessor PLC communicating via Genius Bus or Ethernet can be consolidated onto the IC697CPM915, eliminating a network node, reducing scan-to-scan communication latency, and simplifying the system architecture.
• Fault-Tolerant Control Architecture Support: In redundant CPU configurations, the IC697CPM915 can be paired with redundant host CPUs. The coprocessor’s backplane interface supports the switchover protocol, ensuring that coprocessor outputs remain valid across a primary-to-backup CPU transition without requiring a cold restart of the C-language program.

Quality Assurance & Global Logistics

Every IC697CPM915 unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured pre-shipment verification protocol. Visual inspection covers PCB surface condition, connector pin integrity, faceplate labeling authenticity, and the absence of rework indicators inconsistent with factory production. Functional verification is performed in a Series 90-70 test rack: the module is powered, backplane communication with a host CPU is confirmed, and LED status indicators are checked against the expected power-on sequence documented in GE’s hardware reference manual. Firmware revision is recorded and disclosed in the shipment documentation.

Units are packed in anti-static (ESD) shielding bags, cushioned with closed-cell foam, and placed in double-wall corrugated cartons rated for international air freight handling. Shipments originate from Xiamen, China — a major export hub with direct access to DHL, FedEx, and UPS international express networks. Transit times to most destinations in North America, Europe, Southeast Asia, and the Middle East range from 3 to 7 business days under standard express service. Expedited next-flight-out options are available for critical plant-down situations. All shipments include full commercial invoice, packing list, and country-of-origin documentation to support customs clearance. Export compliance screening is performed on every order in accordance with applicable trade regulations. A 12-month warranty covers verified manufacturing defects from the date of shipment.
