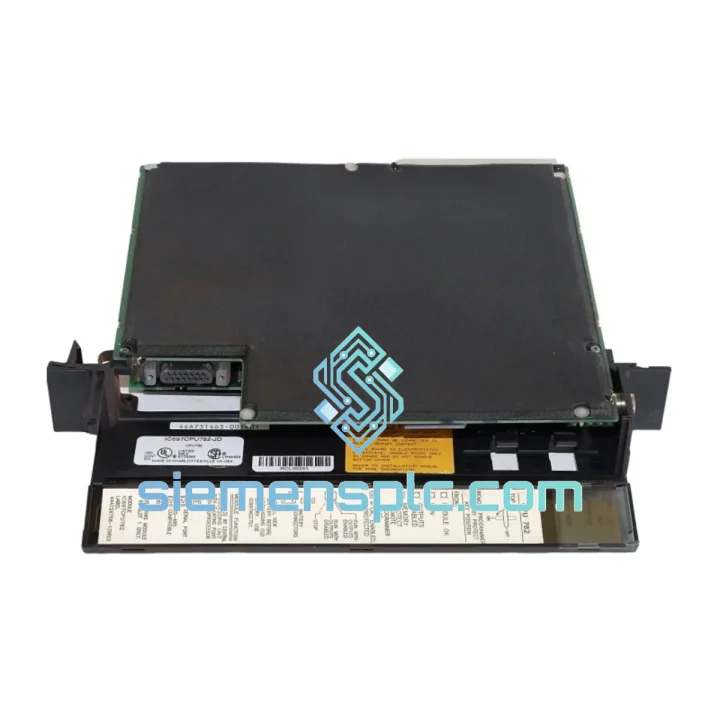

GE IC697CPU782 PLC CPU Module – Series 90-70

GE IC697CPU782 Series 90-70 Expandable Memory CPU — Central Processing Architecture for High-Density Industrial Control

The IC697CPU782 occupies the processor slot of any IC697-series VME rack and functions as the sole arbitration point for all backplane I/O transactions, program scan execution, and inter-rack communication scheduling. Unlike fixed-memory CPU variants in the Series 90-70 family, the IC697CPU782 accepts plug-in memory expansion modules that extend both program store and data table capacity beyond the base 512 KB ceiling — a hardware provision that directly addresses the memory pressure encountered in power generation historian integration, pharmaceutical batch sequencing, and large-scale SCADA gateway applications where register table depth routinely exceeds 32,000 words.

The module’s VME backplane interface operates at 16 MHz with a 32-bit data path, delivering a raw backplane throughput sufficient to service 12 expansion racks without introducing measurable scan-time jitter. The CPU arbitrates backplane bus access using a fixed-priority round-robin scheme: local rack I/O transactions are granted highest priority, followed by inter-rack bus controller (BCC) traffic, and finally co-processor module (CMM) communication requests. This deterministic arbitration model ensures that a heavily loaded CMM module performing Modbus TCP polling cannot starve the I/O scan cycle — a critical design constraint in oil and gas SCADA installations where both process control and alarm management share the same CPU chassis.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Memory Expansion Bus Architecture
The IC697CPU782 implements a dedicated memory expansion interface separate from the VME backplane. The expansion connector routes address lines A0–A20 and data lines D0–D31 directly to the IC697ACC300 memory module without passing through the backplane arbiter. This parallel memory path eliminates the bus contention latency that would otherwise occur if expansion memory were mapped through the VME address space — a design decision that keeps instruction fetch cycles at a fixed 62.5 ns regardless of whether the CPU is executing from base memory or expanded memory. For applications with program sizes between 512 KB and 2 MB, this architecture delivers scan-time consistency that a dual-CPU partitioned approach cannot match.

EMC and Electrical Isolation Design
The IC697CPU782 PCB employs a four-layer stackup with dedicated ground planes on layers 2 and 3, sandwiching the signal routing layers. The VME backplane connector pins are filtered with 100 pF ceramic capacitors to chassis ground at the module edge, attenuating conducted interference above 10 MHz by a minimum of 20 dB. The serial communication ports (RS-232) are isolated from the CPU logic ground via optocoupler stages rated at 2,500 V RMS isolation — a specification that matters in substations and motor control centers where ground potential differences between the PLC cabinet and field device junction boxes can reach several hundred volts during fault conditions.

Watchdog Timer and Fault Isolation Logic
The CPU integrates a hardware watchdog timer with a configurable timeout window (default 200 ms, adjustable to 500 ms via configuration software). If the scan cycle fails to service the watchdog within the configured window — due to an infinite loop in user logic, a memory parity error, or a backplane communication hang — the watchdog asserts a hardware reset signal that forces the CPU to the STOP/FAULT state and illuminates the red FAULT LED. Critically, the watchdog reset does not propagate a backplane bus reset signal, meaning co-processor modules (CMM, BCC) retain their communication state and can continue logging fault data to the SCADA host during the CPU recovery sequence. This fault isolation boundary is essential for IEC 61511 SIL 2 applications where the safety instrumented system must maintain diagnostic coverage even during CPU faults.

Battery-Backed SRAM Retention
Program store and data table SRAM are powered by the IC697ACC701 lithium cell through a diode-OR circuit that automatically switches from backplane 5 VDC to battery when supply voltage drops below 4.5 V. The switchover time is less than 1 µs — fast enough to prevent SRAM data corruption during normal power-down sequences. The battery circuit includes a low-voltage detection comparator that asserts a software-readable flag (accessible via the CPU fault table) when battery voltage drops below 2.8 V, providing advance warning before the 2.5 V retention threshold is reached. In 24/7 continuous process applications, this early warning mechanism is the only reliable method to schedule battery replacement without risking unplanned program loss.

System Integration Benefits

• Deterministic scan-time performance under full I/O load: The VME backplane arbitration scheme guarantees that I/O scan transactions complete within a bounded time window regardless of CMM communication load, enabling reliable PID loop execution at 10 ms sample intervals across 512 analog channels.
• Zero-hardware-change memory upgrade path: Existing IC697 rack installations can migrate from fixed-memory CPU variants (IC697CPU771, IC697CPU772) to the IC697CPU782 by swapping the CPU module only — no rack, wiring, or I/O module changes required — reducing upgrade downtime to a single maintenance window.
• Large register table support for SCADA historian integration: The expanded %R register table (up to 32,767 words with full memory expansion) accommodates direct Modbus register mapping for SCADA historian polling without requiring external data concentrators or register remapping logic.
• Fault-transparent co-processor isolation: CMM and BCC modules maintain communication state during CPU watchdog resets, ensuring SCADA alarm management systems receive continuous data during CPU fault recovery — a requirement under ANSI/ISA-18.2 alarm management standards.
• Battery low-voltage early warning: Software-readable battery status flag enables predictive maintenance scheduling for program retention battery replacement, eliminating unplanned program loss risk in 24/7 continuous process environments.
• IEC 61131-3 multi-language program support: Simultaneous use of Ladder Diagram for discrete interlock logic and Function Block Diagram for PID and analog control within a single program project, without memory partitioning or task scheduling configuration overhead.
• Backward compatibility with Series 90-70 I/O catalog: Full compatibility with all IC697-series discrete, analog, and specialty I/O modules eliminates the need to replace field wiring or terminal blocks during CPU upgrades, preserving the installed base investment.
• Conformal coating availability for harsh environments: Factory-conformal-coated variants are available for offshore, mining, and chemical processing installations where condensation, corrosive gases, or particulate contamination would degrade uncoated PCB assemblies over time.
• Proficy Machine Edition online monitoring: Full online program monitoring, forced I/O, and live data table editing without scan interruption, enabling commissioning and fault diagnosis in live production environments without process shutdown.
• Modbus TCP gateway capability via CMM742: The IC697CMM742 co-processor module enables Modbus TCP server functionality on the CPU’s data table, allowing modern SCADA and MES systems to poll PLC data over Ethernet without modifying the CPU program or scan cycle.

Quality Assurance & Global Logistics

Every IC697CPU782 unit shipped by siemensplc.com passes a structured four-stage incoming inspection protocol before dispatch. Stage one covers physical and label authenticity verification against GE factory reference specimens — connector pin plating, housing mold markings, and PCB silkscreen font are cross-checked against known-genuine units. Stage two performs a powered functional test in an IC697 test rack: CPU self-diagnostic LED sequence, memory parity check completion, and SNP port handshake with Proficy Machine Edition are all verified and logged. Stage three executes a memory read/write integrity cycle across the full address space of both base and expansion memory, confirming zero bit errors under thermal soak at 50 °C for 30 minutes. Stage four validates battery circuit function by measuring switchover voltage threshold and confirming the low-battery flag asserts correctly at 2.8 V.

Units that pass all four stages are shipped with a siemensplc.com Certificate of Conformance, an incoming inspection checklist, and — where available from OEM surplus channels — the original GE factory test report. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port for sea freight consolidation. Standard export documentation — commercial invoice, packing list, EAR99 classification confirmation, and HS code 8537.10 declaration — is prepared for every international shipment. Transit times: 3–5 business days to Europe and Southeast Asia via DHL Express; 5–8 business days to North America and the Middle East; 7–12 business days for economy air freight. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.
