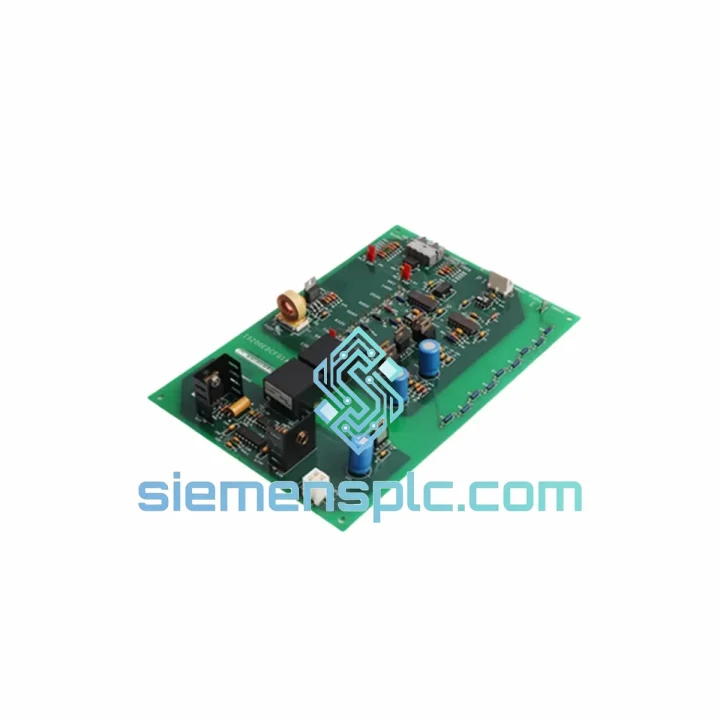

GE IS210HSLAH1ADE Control Board

IS210HSLAH1ADE Down? Every Minute of Turbine Downtime Costs You — We Ship Today

A failed IS210HSLAH1ADE in your GE Mark VI rack doesn’t just trigger an alarm — it shuts down revenue. Whether you’re running a gas turbine, steam turbine, or combined-cycle plant, a dead High-Speed Link Interface board means your entire IONet communication backbone is severed. Controllers go blind. Operators lose visibility. Production stops.

We stock the GE IS210HSLAH1ADE in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and land on your site within 3–5 business days. No waiting 6 weeks for OEM lead times. No broker runaround. Just the board, tested, packed, and moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls on Mark VI systems, here’s what actually goes wrong with the IS210HSLAH1ADE and what you need to know before you swap it:

Common Failure Signatures:

• IONet Communication Loss: The most frequent symptom. ToolboxST reports “HSLA link fault” or the I/O pack drops off the network entirely. Check the board’s LED indicators first — a solid red on the LINK LED with no green activity confirms the HSLA board, not the cable.
• Intermittent Dropouts Under Load: Thermal cycling causes solder joint fatigue on the high-speed transceiver ICs. If faults correlate with ambient temperature spikes above 45°C, the board is degrading — don’t wait for a hard failure.
• Fault Codes to Watch: L3HSLA_FAULT, IONET_COMM_LOSS, RACK_COMM_ERR in the Mark VI diagnostic log. Any of these pointing to the HSLA slot is a direct replacement indicator.
• Backplane Connector Wear: On systems with 8+ years of service, inspect the VME backplane connector pins before inserting the new board. Bent or oxidized pins will kill a new board within weeks.

Replacement Procedure — Field Checklist:

• ☐ Place the Mark VI controller in Manual / Maintenance mode before pulling the board. Never hot-swap an HSLA board without confirming the system is in a safe state.
• ☐ Document the current firmware revision from ToolboxST (Hardware → Board Properties → Firmware Rev) before removal. The replacement board must match or be flashed to the same revision.
• ☐ Check the revision suffix on the board label: H1ADE vs H1ABE vs H1ACE. Mixing revisions in the same rack can cause IONet arbitration conflicts. Match exactly.
• ☐ There are no DIP switches on the IS210HSLAH1ADE — addressing is handled automatically via the VME backplane slot position. Confirm the board is seated in the correct slot per your rack layout drawing.
• ☐ After insertion, power up and allow 90 seconds for IONet re-initialization before checking link status in ToolboxST.
• ☐ If the board was sourced as tested surplus, run a full IONet loopback test from ToolboxST before returning the unit to automatic control.
• ☐ Log the replacement in your site maintenance record with the new board serial number and firmware revision for audit compliance.

Firmware Matching — Critical: The IS210HSLAH1ADE must run firmware validated against your ToolboxST project file. Mismatched firmware versions cause silent communication errors that won’t always throw a hard fault — they degrade data integrity over time. If you’re unsure of your required firmware revision, send us your ToolboxST project version and we’ll confirm compatibility before shipping.

Reliability in Harsh Conditions

The IS210HSLAH1ADE was engineered for the inside of a gas turbine control cabinet — not a server room. GE designed the Mark VI board set to survive the environments that destroy consumer-grade electronics:

• Vibration: The board’s PCB layout and component selection account for continuous low-frequency vibration from turbine operation. Conformal coating on the PCB surface protects solder joints from micro-cracking under sustained mechanical stress. When sourcing replacements, verify the conformal coat is intact — uncoated boards sourced from non-industrial channels will fail prematurely in vibrating environments.
• Temperature Cycling: Rated for 0°C to +60°C continuous operation, with transient tolerance beyond that range. The high-speed transceiver ICs are industrial-grade components, not commercial-grade substitutes. This matters when your cabinet ambient hits 55°C on a summer afternoon with the turbine at full load.
• Humidity and Condensation: The conformal coating provides a barrier against moisture ingress. However, boards that have been stored improperly — without climate control or anti-static packaging — may show corrosion on the edge connector fingers. All boards shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static bags with desiccant.
• EMI Resistance: The HSLA board’s high-speed serial interface is designed with differential signaling to reject common-mode noise from the high-voltage environment surrounding turbine control cabinets. Shielded IONet cables are mandatory — if you’re seeing intermittent link faults on a new board, check cable shield continuity before condemning the board.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how your order moves:

• Order Confirmation: Within 2 hours of payment, your order is pulled from stock, inspected, and photographed for shipping documentation.
• Export Packaging: The IS210HSLAH1ADE is packed in a rigid anti-static foam insert inside a double-wall corrugated carton. Fragile and ESD-sensitive labels are applied. A packing list and commercial invoice are included for customs clearance.
• Dispatch: Orders confirmed before 14:00 CST ship same day. Orders confirmed after 14:00 CST ship the following business day.
• Carrier Options:
  • DHL Express Worldwide: 2–4 business days to Europe, Middle East, Southeast Asia. 3–5 business days to the Americas.
  • FedEx International Priority: 2–3 business days to North America. 3–5 business days to other regions.
  • UPS Expedited: Available on request for specific destinations.
• Tracking: A tracking number is emailed within 4 hours of dispatch. We monitor shipments proactively — if a customs hold occurs, we contact you immediately with the required documentation.
• Customs & Duties: We prepare accurate HS code documentation (HS 8537.10) and commercial invoices to minimize customs delays. DAP (Delivered At Place) terms available for most destinations — ask at time of order.
• Emergency Shipments: If your plant is down and every hour counts, contact us via WhatsApp for same-day dispatch coordination and courier upgrade options.
