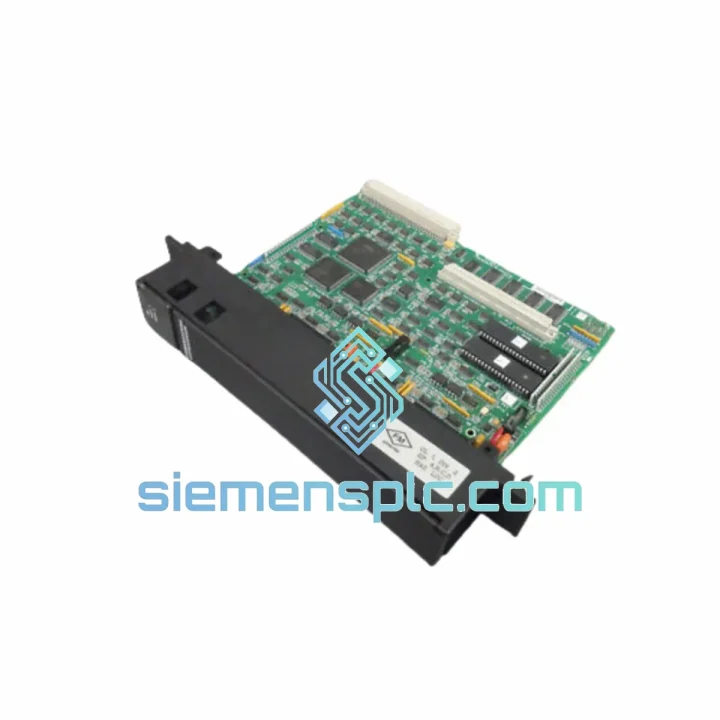

GE IC697CMM711 PLC Communications Coprocessor – Series 90-70

GE IC697CMM711 — Dedicated Serial Communications Coprocessor for Series 90-70 Rack-Based Control Architecture

The IC697CMM711 is a single-slot serial communications coprocessor module designed exclusively for the GE Series 90-70 VME-based programmable logic controller platform. Its fundamental engineering purpose is to remove all serial protocol processing overhead from the main CPU module, allowing the CPU to maintain deterministic scan cycle execution while the IC697CMM711 independently manages multi-drop serial networks, protocol framing, and message queuing. In high-density process control environments — where CPU scan jitter directly translates to control loop instability — this architectural separation is not a convenience feature; it is a system reliability requirement.

The module occupies one standard Series 90-70 rack slot and interfaces with the CPU via the VME backplane shared-memory mechanism. Field device data received on either serial port is written into a dedicated mailbox region in backplane memory, from which the CPU reads at each scan cycle without incurring the latency of real-time serial polling. This decoupled architecture guarantees that a slow or unresponsive field device on the serial network cannot stall the CPU scan — a critical protection in continuous-process industries where scan overruns trigger safety shutdowns.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IC697CMM711 implements a two-tier processing architecture. The first tier is the onboard coprocessor, which handles all time-sensitive serial tasks: baud rate clocking, start/stop bit framing, parity checking, CRC-16 validation (for Modbus RTU frames), and protocol-layer acknowledgment. The second tier is the VME backplane shared-memory interface, which acts as a high-speed asynchronous bridge between the coprocessor’s serial receive buffers and the CPU’s data table.

From an EMC standpoint, the module’s RS-485 driver circuitry incorporates differential signaling with a common-mode rejection ratio (CMRR) sufficient to suppress ground-loop noise common in industrial panel environments. The RS-485 line driver supports bus termination resistor configuration at both ends of the cable run, which is essential for eliminating signal reflections on cable runs exceeding 100 meters — a frequent requirement in large-footprint process plants.

The dual-port design is not simply a matter of having two physical connectors. Each port has its own independent UART controller and receive/transmit FIFO buffer, meaning Port 1 and Port 2 operate on entirely separate interrupt vectors within the coprocessor. A communication fault on Port 1 — such as a framing error from a malfunctioning RTU — does not affect the polling cycle on Port 2. This fault isolation at the hardware level is a significant advantage over software-multiplexed single-port solutions.

The module’s firmware stores protocol configuration parameters in non-volatile memory, ensuring that communication settings survive power cycling without requiring re-download from the programming terminal. This is particularly relevant in applications where the PLC rack may be power-cycled during maintenance without a programming device present.

System Integration Benefits

• CPU Scan Cycle Protection: All serial I/O processing is handled by the onboard coprocessor. The CPU scan cycle is never blocked by serial polling latency, preserving deterministic control loop timing even under high network load.
• Simultaneous Dual-Network Operation: Port 1 and Port 2 can connect to two entirely separate serial networks running different protocols and baud rates simultaneously — for example, SNP to a GE HMI on Port 1 and Modbus RTU to a third-party flow meter network on Port 2.
• Transparent SCADA Integration: Native SNP-X protocol support enables direct, low-latency data exchange with GE CIMPLICITY and iFIX SCADA platforms without requiring protocol conversion gateways.
• Legacy System Continuity: Drop-in slot compatibility with all Series 90-70 rack sizes means the IC697CMM711 can replace a failed communications module without any rack modification, rewiring, or CPU program changes — minimizing unplanned downtime.
• Scalable Multi-Drop Networks: RS-485 mode supports up to 32 addressable nodes per port, enabling a single IC697CMM711 to manage large distributed instrument networks — flow transmitters, pressure sensors, motor drives — from a single rack slot.
• Diagnostic Transparency: The module exposes communication status registers to the CPU data table, including frame error counts, timeout events, and port activity flags. Control logic can read these registers to implement self-diagnostic routines and generate operator alarms without external diagnostic hardware.
• Firmware Field Serviceability: Protocol behavior and baud rate parameters can be updated via the serial port without removing the module from the rack, reducing maintenance intervention time in live production environments.
• Reduced Panel Footprint: By consolidating two independent serial networks into a single rack slot, the IC697CMM711 eliminates the need for external serial communication converters or additional rack slots, reducing panel space consumption and wiring complexity.
