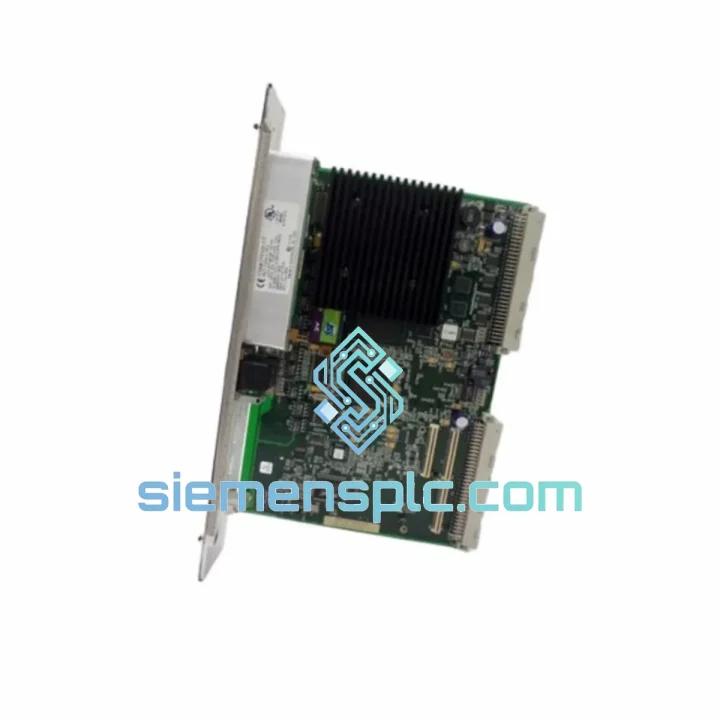

GE IC698CPE020-JV PLC CPU Module

IC698CPE020-JV: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your RX7i rack is dark. The IC698CPE020-JV is the only module that brings it back. Every hour this CPU sits failed, your production line bleeds money — batch aborts, SLA penalties, maintenance overtime, and the cascading cost of a halted process that took days to stabilize. This is not a component you can improvise around. The PACSystems RX7i architecture is CPU-centric: without IC698CPE020-JV executing scan cycles, every I/O card, every fieldbus node, and every HMI screen in the rack is dead weight.

We stock IC698CPE020-JV at our Xiamen warehouse. Verified, tested, packed in ESD-safe anti-static bags, and ready to clear customs today. DHL and FedEx Express labels are printed same day for confirmed orders. While your procurement team is still drafting the PO, we are already pulling the unit off the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes You Are Probably Staring At Right Now

Before condemning the CPU, rule out the obvious. The IC698CPE020-JV throws a handful of recurring faults that look catastrophic but have known root causes:

• Fault 0x0041 – CPU Hardware Failure: Internal self-test failed on power-up. OK LED stays red after cold boot. No firmware reload fixes this. Replace the module.
• Fault 0x0080 – Memory Parity Error: RAM integrity check failed — often triggered by a power surge or capacitor degradation. Attempt a full memory clear via Proficy Machine Edition (PME). If the fault persists across three cold boots, the RAM is gone. Replace.
• Fault 0x0010 – Backplane Communication Loss: Reseat all modules first. Check IC698CHS009/017 backplane connector pins for oxidation. If the fault clears on reseating, you have a backplane contact issue, not a CPU failure. If it persists with only the CPU installed, the CPU backplane interface is dead.
• Fault 0x00C1 – Ethernet Port Failure: One or both embedded Ethernet ports have failed at the hardware level. Not recoverable through firmware. If PME cannot see the CPU on the network and SRTP/EGD communications have dropped, this is the cause.

Replacement Procedure — Field Steps

1. Back up the program first. If the CPU is still partially functional, connect via RS-232 and upload the program to PME. Do not assume flash storage survived the fault event intact.
2. Power down the rack completely. IC698CPE020-JV does not support hot-swap. Pulling the CPU under power will corrupt the backplane and can damage I/O modules.
3. Confirm the firmware revision suffix. The “-JV” suffix identifies a specific firmware build. Mixing revisions in a redundant CPU pair triggers Fault 0x0090 (redundancy mismatch). Verify your replacement carries the same JV suffix before installation.
4. Replace the battery simultaneously. The IC698CPE020-JV uses an internal lithium battery (IC698ACC701) to retain program memory during power loss. If the battery LED is amber, replace it now. A dead battery on a new CPU means program loss on the first power interruption.
5. Reconfigure IP addresses. The replacement CPU does not inherit the IP address of the failed unit. Reconfigure both Ethernet ports via PME hardware configuration. Have your network documentation ready before power-up.
6. Firmware download check. If the replacement unit carries a different firmware build, PME will prompt an update. Have the correct firmware file from GE’s Proficy portal ready. Do not skip this in a redundant system.
7. Monitor I/O fault table on first RUN. After downloading the program and transitioning to RUN mode, watch the I/O fault table for 60 seconds. Backplane errors that appear only under load indicate a rack or power supply issue the CPU swap will not resolve.

Reliability in Harsh Conditions

The IC698CPE020-JV was not designed for a climate-controlled server room. GE engineered the PACSystems RX7i platform for the environments where automation actually lives — steel mill floors at 55°C ambient with airborne metal particulate, offshore platform control rooms cycling through 95% RH with salt-laden air, and chemical plant cabinets where vibration from nearby pumps runs continuously at 5–150 Hz.

The module’s conformal-coated PCB provides a barrier against moisture ingress and corrosive atmospheres. Industrial-grade capacitors and voltage regulators are rated for extended temperature cycling, not the narrow thermal envelope of commercial electronics. The backplane connector uses gold-plated contacts to resist the oxidation that kills silver-plated connectors in humid or chemically active environments within 18–24 months.

Vibration tolerance is validated to IEC 60068-2-6 — sinusoidal vibration across 5–150 Hz at 1g acceleration. Shock resistance is validated to IEC 60068-2-27 at 15g, 11ms half-sine. These are qualification test results, not marketing claims.

Every unit we ship is inspected for thermal stress evidence (discolored PCB, bulging capacitors, burnt traces), corrosion on connector pins, and mechanical damage to the module housing. A module that has been cooked in a failed cabinet is not a module we ship.
