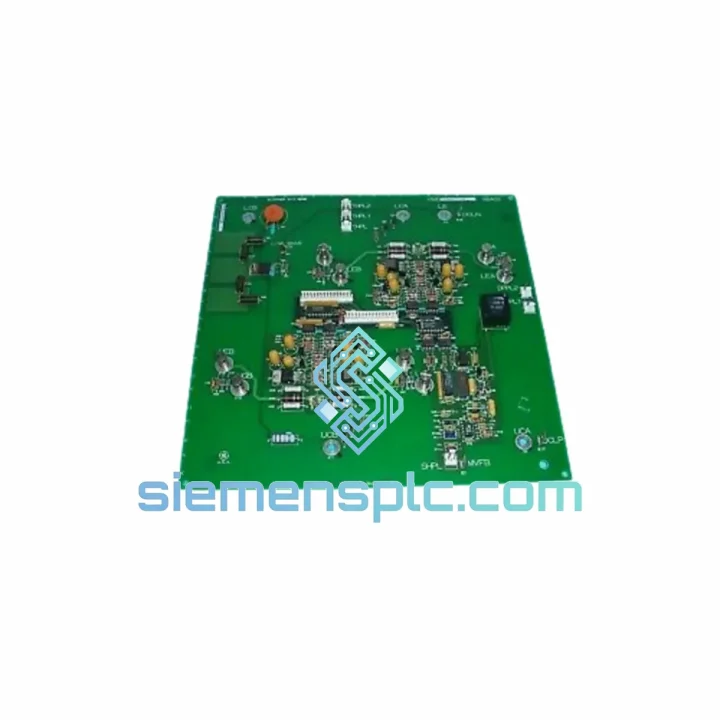

GE IS200DSFCG1ADB DSP Feedback Control Card – Mark VI Series

GE IS200DSFCG1ADB DSP Feedback Control Card — Signal Processing Architecture in Mark VI Turbine Control Loops

The IS200DSFCG1ADB is a DSP-based Feedback Control Card manufactured by GE Energy Controls for deployment within the Mark VI and Mark VIe Turbine Control System platform. Its primary function is to close the feedback loop between field-level sensors and the turbine’s primary control processor, executing real-time digital signal conditioning, error computation, and corrective output generation at deterministic scan rates. In gas turbine applications — particularly GE Frame 6B, 7EA, 7FA, and 9E/9FA series — this card occupies a defined slot within the VME-based IS200 rack and interfaces directly with the VCMI (VME Communication and Memory Interface) backplane, exchanging process data at sub-millisecond latency.

Unlike generic I/O boards that passively relay analog values, the IS200DSFCG1ADB performs active DSP computation onboard. The embedded processor executes PID correction algorithms, signal linearization routines, and rate-of-change limiting functions locally, offloading computational burden from the main CPU (typically IS200UCVEH or IS200UCVGH). This distributed processing model is fundamental to the Mark VI’s triple-redundant (TMR) architecture, where three independent control paths must each produce validated outputs before the voter logic arbitrates the final actuator command.

The card’s feedback signal chain begins at the differential analog input stage, where field signals — typically 4–20 mA current loops or ±10 V voltage references from LVDT position sensors, thermocouple transmitters, or pressure transducers — are received through the IS200 terminal board (TBCI or TBCIH). The IS200DSFCG1ADB conditions these signals through a 16-bit ADC with programmable gain amplification, applies digital filtering to suppress 50/60 Hz line noise, and delivers processed values to the DSP core for loop computation. Output commands are then transmitted back through the backplane to the appropriate output module (e.g., IS200TREGH for servo valve control).

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Distributed DSP Architecture and Backplane Bus Throughput: The IS200DSFCG1ADB operates as an autonomous processing node within the IS200 VME rack. Rather than relying on the central UCVE/UCVG processor for all feedback computations, the card’s onboard DSP executes control algorithms independently and synchronizes results with the main processor via the VME backplane at defined inter-scan intervals. This architecture prevents a single processor bottleneck from degrading loop response time across multiple simultaneous control channels — a critical requirement in multi-shaft turbine configurations where speed, temperature, and pressure loops must all close within the same control frame.

EMC Design and Signal Integrity: The analog front-end of the IS200DSFCG1ADB employs differential signal reception with common-mode rejection ratios (CMRR) exceeding 80 dB at 50/60 Hz, suppressing ground-loop interference common in high-voltage turbine enclosures. The PCB layout separates analog and digital ground planes with a single-point star connection, minimizing digital switching noise coupling into the ADC reference. Onboard ferrite bead filtering on power supply rails further attenuates high-frequency conducted emissions from the backplane.

Optical Isolation on Critical I/O Paths: Discrete digital I/O channels on the IS200DSFCG1ADB are optically isolated to 1500 V RMS, providing galvanic separation between field wiring and the card’s logic circuitry. This isolation barrier is essential in turbine environments where field cables may run adjacent to high-voltage ignition circuits or generator bus bars, where transient voltages can reach several kilovolts during fault conditions.

Watchdog and Self-Diagnostic Logic: The card implements a hardware watchdog timer that monitors DSP execution cycles. If the DSP fails to service the watchdog within the defined interval — indicating a software hang or processor fault — the watchdog asserts a hardware reset and simultaneously flags a diagnostic alarm to the Mark VI’s HMI via the backplane status register. This fail-safe mechanism ensures that a card-level fault does not silently propagate incorrect feedback data into the control loop.

TMR Voter Compatibility: In TMR configurations, three IS200DSFCG1ADB cards (one per control path: R, S, T) each independently process the same field signals. Their outputs are compared by the voter logic within the VCMI module. A 2-out-of-3 voting algorithm determines the valid output; a card producing an out-of-tolerance result is flagged and isolated without interrupting turbine operation. This architecture achieves the fault tolerance required for continuous operation in power generation applications where unplanned shutdowns carry significant financial and grid-stability consequences.

System Integration Benefits

• Direct slot compatibility with existing IS200 VME rack configurations — no mechanical modification, re-wiring, or firmware re-flashing of adjacent modules required for drop-in replacement.
• Deterministic scan-cycle performance maintained through onboard DSP execution, ensuring feedback loop closure times remain within the Mark VI’s defined control frame regardless of backplane traffic load.
• Diagnostic transparency via backplane status registers: fault codes, ADC saturation flags, watchdog trip events, and communication timeout alarms are all accessible through the Mark VI Toolbox software without physical card removal.
• TMR architecture integrity preserved — replacing a failed card in one control path (R, S, or T) restores full triple-redundancy without requiring a turbine shutdown, provided the replacement is performed during a maintenance window with the affected path isolated.
• Signal chain traceability from field sensor through ADC, DSP computation, and backplane output — each stage’s intermediate values are logged in the Mark VI’s historian, enabling post-event root-cause analysis of control deviations.
• Reduced mean time to repair (MTTR) — the card’s self-diagnostic registers allow maintenance engineers to confirm the fault source before ordering a replacement, eliminating speculative parts procurement.
• Legacy system longevity — the IS200DSFCG1ADB supports continued operation of Mark VI installations beyond GE’s standard product lifecycle, deferring costly full-system upgrades while maintaining control system reliability.
• Compatibility with GE Toolbox configuration software — hardware revision G1ADB is recognized by Mark VI Toolbox versions supporting IS200 series boards, allowing parameter upload/download and I/O calibration without additional driver installation.
• Thermal operating margin — rated to 60°C ambient within the rack, the card tolerates the elevated enclosure temperatures typical of outdoor turbine control panels in tropical and desert climates without derating.

Quality Assurance & Global Logistics

Every IS200DSFCG1ADB unit supplied by siemensplc.com undergoes a structured pre-shipment verification protocol. Visual inspection confirms PCB surface integrity, connector pin condition, and hardware revision marking against GE OEM reference documentation. Functional bench testing applies power through a Mark VI-compatible test fixture, verifying ADC channel response, backplane communication handshake, and watchdog timer operation. The hardware revision code (G1ADB) is confirmed against the silk-screen marking and logged in the shipment record. Units are then packaged in anti-static shielding bags, enclosed in foam-lined cartons, and sealed with tamper-evident tape.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and sea freight consolidation services. In-stock units are dispatched within 1–3 business days of order confirmation. Emergency same-day dispatch is available for critical plant situations — contact us directly via WhatsApp for priority handling. Export documentation (commercial invoice, packing list, certificate of origin, HS code 8537.10 declaration) is prepared as standard for all international shipments. End-user declarations are provided upon request for export-controlled destinations.

A 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Warranty claims are processed via RMA with a documented failure description; replacement or repair is completed and returned within an agreed lead time. Bulk order pricing is available for 3 or more units — submit your BOM or part list for a consolidated quotation.
