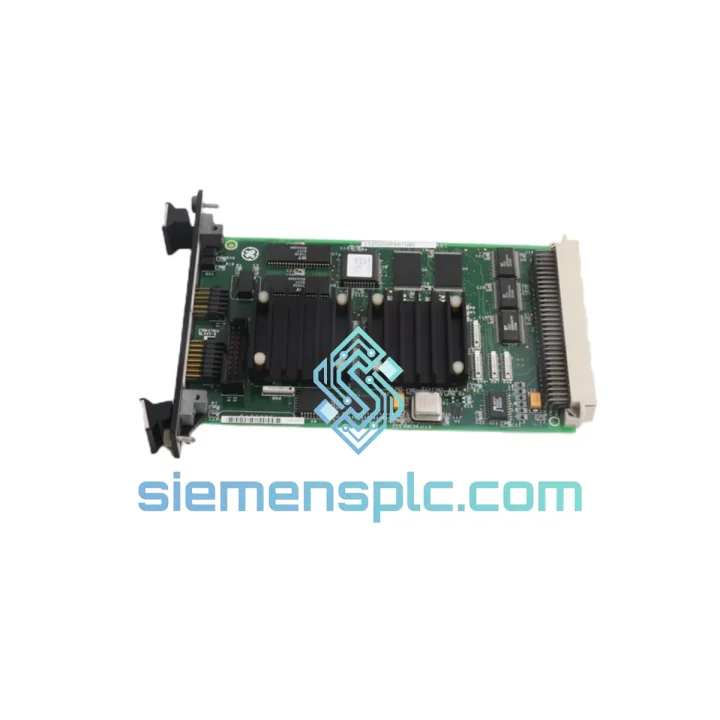

GE IS200DSPXH1D DSP Board Mark VI

GE IS200DSPXH1D Mark VI DSP Board — Every Hour of Downtime Costs You Money. We Ship Today.

A tripped turbine. A blank HMI. A Mark VI rack with a dead DSP slot. You’ve been there — or you’re there right now. The IS200DSPXH1D is the real-time signal processing core of GE’s Mark VI Turbine Control System, and when it fails, the entire unit goes offline. There is no workaround. There is no bypass. You need a verified replacement board in your hands, fast.

We stock the IS200DSPXH1D in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 14:00 CST dispatch same day. For most destinations in Asia, the Middle East, and Europe, you’re looking at 2–4 business days door-to-door. That’s the difference between a 72-hour outage and a week-long production loss.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for IS200DSPXH1D:

• Fault Code L3DIAG / L86DSP: DSP board self-diagnostic failure on power-up. Board fails to complete initialization handshake with the VCMI. First step — reseat the board and check VME backplane connector pins for corrosion or bent contacts. If fault persists after reseating, the DSP itself is the culprit.
• IONet Communication Loss: If ToolboxST shows the DSP node as “offline” or “not responding” while other I/O packs remain healthy, the board’s IONet transceiver has likely failed. This is not recoverable in the field — board swap required.
• Intermittent Control Loop Dropout: Sporadic trip signals with no process cause, or unexplained speed/load oscillations, can indicate DSP processing latency caused by failing SRAM or flash memory on the board. Log the sequence-of-events (SOE) data before pulling the board — it will tell you exactly which control block dropped out.
• Blank or Frozen HMI with No Alarms: If the operator station loses all dynamic data but the turbine is still running, the DSP has likely lost its IONet link. Check the VCMI status LEDs first. If VCMI is green and the DSP slot LED is amber or off, the IS200DSPXH1D is the failed component.

Replacement procedure — key steps engineers miss:

• Firmware version match is mandatory. Before installing the replacement board, confirm the firmware revision using ToolboxST. Mismatched firmware between the DSP and the VCMI will cause an immediate L3DIAG fault. If you don’t have the matching firmware file on-site, contact GE or your integrator before swapping.
• TMR rack sequencing matters. In a TMR configuration, always replace the faulted voter first, then bring it back online before touching the remaining two. Swapping the wrong board in the wrong sequence can cause a spurious trip on a running unit.
• ESD discipline is non-negotiable. The IS200DSPXH1D contains high-speed DSP silicon that is sensitive to electrostatic discharge. Ground yourself to the rack chassis before touching the board. Do not place the board on unprotected surfaces.
• No DIP switches or jumpers on this board. Unlike older Mark V hardware, the IS200DSPXH1D is fully software-configured via ToolboxST. There are no physical address switches to set. The board auto-addresses on the IONet bus during initialization.
• Allow 90 seconds for full initialization. After seating the replacement board, wait for the full boot cycle before checking ToolboxST status. Pulling the board during initialization because “nothing happened” is the most common mistake on first-time replacements.

Reliability in Harsh Conditions

The IS200DSPXH1D was designed for continuous operation inside gas turbine enclosures and power plant control rooms — environments that would destroy consumer-grade electronics within weeks. The board’s PCB substrate is rated for sustained thermal cycling between cold startup and full-load operating temperatures. Conformal coating on production units provides protection against condensation and airborne contaminants common in coastal and offshore installations.

Vibration tolerance is engineered to handle the mechanical noise floor of a running gas turbine — typically 2–10 Hz broadband vibration transmitted through the turbine skid into the control cabinet. The VME card-edge connector system provides positive mechanical retention that maintains signal integrity even under continuous vibration loads. Units that have been in service for 10–15 years in these conditions and then fail are almost always failing due to electrolytic capacitor aging or connector oxidation — not structural failure of the board itself.

Every unit we ship from Xiamen is inspected for physical damage, connector condition, and component date codes. Boards showing signs of heat stress, arc damage, or mechanical impact are rejected before they reach our inventory. What you receive is a board that is ready to go into a live rack — not a board that needs to be inspected again on your end before installation.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a drop-shipping arrangement. The board is physically in our warehouse, inspected, and ready to pack when your order is confirmed.

• DHL Express Worldwide: Typical transit 2–3 business days to Southeast Asia, Middle East, and Europe. 3–5 business days to North America and South America. Real-time tracking from pickup to delivery.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger last-mile coverage. Same transit time benchmarks as DHL.
• Export documentation included as standard: Commercial invoice, packing list, Certificate of Origin, and Certificate of Conformance ship with every order. No delays at customs due to missing paperwork.
• Emergency same-day dispatch: Orders confirmed with payment before 14:00 CST are packed and handed to the carrier the same afternoon. You receive tracking before end of business day.
• Packaging: Anti-static ESD bag → foam-lined inner box → double-wall corrugated outer carton. The board arrives in the same condition it left our warehouse.

If your plant is facing an active outage and you need to know transit time to your specific location before committing, contact us directly. We will give you a carrier-confirmed transit estimate, not a marketing estimate.
