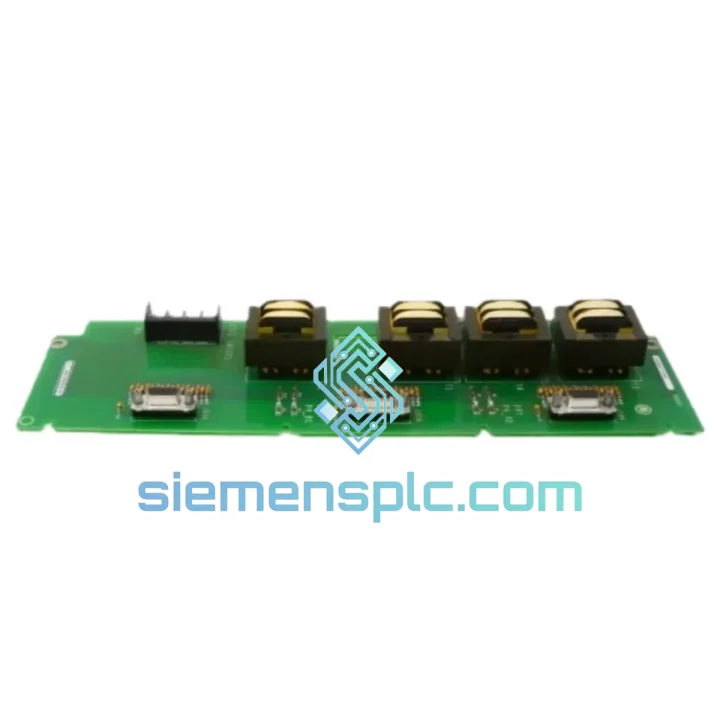

GE IS200EACFG2ABB Exciter AC Feedback Board – Mark VI EX2100

GE IS200EACFG2ABB – AC Feedback Signal Conditioning Board for Mark VI / EX2100 Exciter Control Architecture

The GE IS200EACFG2ABB is a dedicated AC feedback signal conditioning board engineered for deployment within GE’s Mark VI Turbine Control System and the EX2100 Digital Exciter Control platform. Its primary function is to acquire, scale, and transmit AC voltage and current feedback signals from the generator excitation circuit back to the exciter controller’s closed-loop regulation algorithm. Without accurate, low-latency feedback at this node, the automatic voltage regulator (AVR) cannot maintain terminal voltage within the ±0.5% steady-state band required by IEEE Std 421.5 performance criteria.

Physically, the IS200EACFG2ABB occupies a single VME-compatible slot within the EX2100 exciter cabinet. Its PCB architecture integrates precision instrument-grade analog front-end circuitry, galvanic isolation stages, and a digital signal path that feeds conditioned data to the EX2100 controller card via the Mark VI backplane bus. The board is manufactured to GE’s internal IPC-A-610 Class 3 workmanship standard, reflecting the reliability demands of continuous-duty power generation environments where mean time between failures (MTBF) targets exceed 100,000 hours.

In the EX2100 exciter topology, the IS200EACFG2ABB interfaces directly with the potential transformer (PT) and current transformer (CT) secondary circuits on the AC side of the exciter bridge. It performs real-time RMS computation and phase-angle tracking, supplying the controller with the data necessary to execute reactive power (VAR) control, power factor correction, and under-excitation limiting (UEL) functions. This makes the board a load-bearing element in both steady-state voltage regulation and transient stability response during grid disturbances.

Procurement teams replacing this board in an operating plant should note that the IS200EACFG2ABB is a direct plug-and-play replacement within the IS200 series form factor. No firmware re-flashing or backplane reconfiguration is required, provided the replacement unit carries the same revision suffix (G2A). The board’s EEPROM stores calibration coefficients that are read at power-up; GE’s Toolbox software can be used to verify or re-enter site-specific scaling factors if the original calibration data is unavailable.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200EACFG2ABB’s analog front end is built around a differential input topology that rejects common-mode noise introduced by long cable runs between the generator terminal box and the exciter cabinet. Each input channel passes through a second-order anti-aliasing filter with a –3 dB corner frequency set above the 7th harmonic of the fundamental (i.e., above 350 Hz for 50 Hz systems), ensuring that the downstream digital processing stage receives a clean, alias-free signal without attenuating the harmonic content needed for distortion analysis.

Galvanic isolation is implemented using precision isolation amplifiers rather than optocouplers. This design choice is deliberate: optocoupler-based isolation introduces nonlinearity at low signal levels and exhibits gain drift with temperature, both of which are unacceptable in a closed-loop AVR feedback path where gain accuracy directly determines voltage regulation error. The isolation amplifiers used on this board maintain linearity to within ±0.05% of full scale across the full operating temperature range, a specification consistent with GE’s internal accuracy budget for the EX2100 regulation loop.

EMC hardening on the IS200EACFG2ABB follows GE’s Mark VI platform-wide strategy: the PCB uses a four-layer stackup with dedicated ground and power planes that provide a low-impedance return path for high-frequency currents, suppressing conducted emissions below the IEC 61000-6-4 Class A industrial limit. Ferrite beads are placed at the board’s I/O connector pins to attenuate RF energy coupled from the exciter power bridge switching transients, which can reach dV/dt rates of several kV/µs in thyristor-based exciter topologies.

The board’s digital output to the VME backplane is synchronized to the Mark VI system clock, eliminating jitter-induced phase errors in the feedback data stream. This synchronization is critical for the EX2100’s discrete-time AVR algorithm, which executes at a fixed sample rate (typically 3.33 ms per scan for the EX2100e variant) and requires that feedback samples arrive with deterministic latency. Any jitter in the feedback path would manifest as phase margin degradation in the AVR’s frequency-domain stability analysis.

System Integration Benefits

• Deterministic feedback latency: Synchronized VME bus data delivery ensures the EX2100 AVR algorithm receives feedback samples within a fixed, predictable window every control scan, preserving the designed phase margin of the voltage regulation loop.
• High-accuracy signal conditioning: ±0.05% linearity across temperature eliminates gain-induced steady-state voltage regulation error, keeping terminal voltage within IEEE Std 421.5 performance bands without manual trim adjustments.
• Galvanic isolation integrity: Full channel-to-channel and channel-to-backplane isolation prevents ground loop currents from corrupting feedback signals, a common failure mode in plants with multiple grounding points across the generator and exciter cabinets.
• Harmonic transparency: The 400 Hz signal bandwidth allows the controller to monitor AC feedback waveform distortion, enabling early detection of rectifier diode degradation or transformer saturation before they affect excitation performance.
• EMC compliance: IEC 61000-6-4 Class A conducted and radiated emission compliance ensures the board does not introduce interference into adjacent protection relay or communication circuits sharing the same panel.
• Zero-configuration replacement: IS200 series form-factor compatibility and EEPROM-stored calibration coefficients allow board swap without backplane reconfiguration, reducing planned outage duration for spare-part replacement to under 30 minutes.
• Diagnostic transparency: The board’s status is continuously monitored by the Mark VI I/O health diagnostic framework; a failed board asserts a hardware fault alarm in the HMI within one control scan, enabling maintenance teams to isolate the fault source without oscilloscope-level troubleshooting.
• Redundancy support: In TMR (Triple Modular Redundant) Mark VI configurations, three IS200EACFG2ABB boards operate in parallel with voted outputs, ensuring that a single board failure does not interrupt excitation control or trigger a turbine trip.

Quality Assurance & Global Logistics

Every IS200EACFG2ABB unit dispatched from our Xiamen, China facility is sourced through traceable industrial supply channels and subjected to a documented pre-shipment inspection protocol. Visual examination covers PCB surface condition, connector pin integrity, component marking legibility, and revision label verification against GE’s part number database. Functional verification, where test fixtures are available, confirms that analog output signals respond correctly to simulated PT/CT secondary inputs before the board is cleared for shipment.

Packaging follows ESD-safe handling procedures throughout: boards are placed in anti-static shielding bags, cushioned with conductive foam inserts, and sealed in double-wall corrugated cartons rated for international air freight. Each shipment includes a commercial invoice, packing list, and, upon request, a certificate of conformance and inspection report.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America and 2–4 business days to Southeast Asia and the Middle East. Export classification is assessed per EAR99 / ECCN criteria, and all shipments comply with applicable Chinese export regulations and destination-country import requirements. Expedited customs clearance documentation is prepared as standard to minimize border delays for time-critical plant maintenance scenarios.

All units sold carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement or credit issued upon confirmation of the defect.
