GE IS200EPDMG1B Power Distribution Module – Mark VI

GE IS200EPDMG1B – Exciter Power Distribution Module: Architecture and Control Loop Function

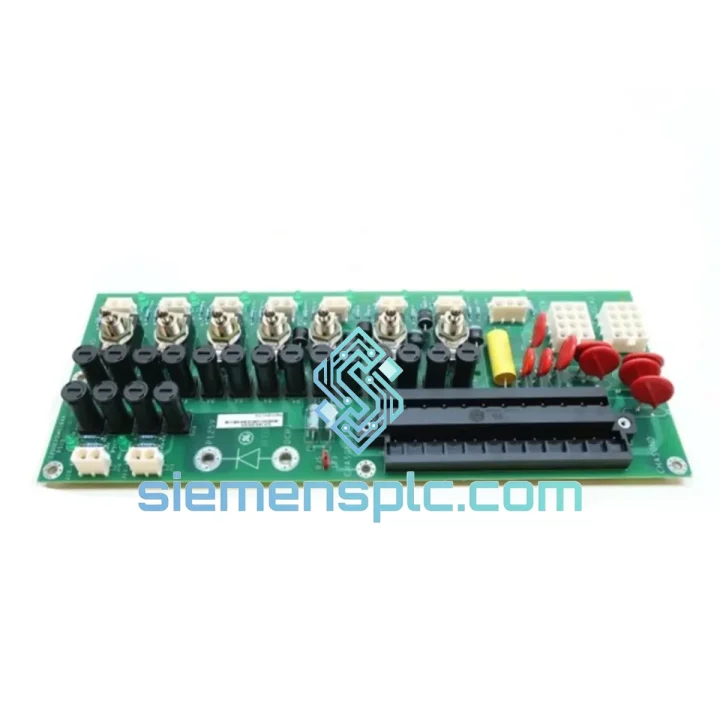

The GE IS200EPDMG1B is a dedicated Exciter Power Distribution Module engineered for deployment within the GE Mark VI Turbine Control System. Its primary function is to manage and route conditioned DC power to the exciter subsystem of gas and steam turbine generators, maintaining voltage stability across the excitation bus under variable load conditions. Unlike generic power relay boards, the IS200EPDMG1B is tightly coupled to the Mark VI backplane architecture — it participates in the system’s internal diagnostic bus, enabling real-time fault reporting and power-path monitoring without external instrumentation.

In a closed-loop excitation control scheme, the module sits between the upstream power supply rail and the field winding driver stage. Any instability in this distribution path — whether caused by connector degradation, thermal cycling fatigue, or capacitor ESR drift — directly affects generator reactive power output and AVR (Automatic Voltage Regulator) response time. The IS200EPDMG1B addresses this by incorporating onboard filtering and protection circuitry that isolates transient disturbances before they propagate to sensitive exciter electronics.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200EPDMG1B’s internal architecture reflects GE’s design philosophy for high-availability turbine control: deterministic behavior under fault conditions, with no single-point failure capable of causing uncontrolled exciter shutdown.

Optocoupler Isolation Stage: Each power distribution channel passes through a dedicated optocoupler stage. This galvanic barrier prevents ground potential differences — common in large generator installations where frame ground and instrument ground can diverge by several volts — from inducing common-mode noise into the exciter control signals. The isolation threshold is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements (1.2/50 µs waveform).

EMC Filtering Network: The input rail incorporates an LC filter network (series inductance + shunt capacitance) designed to attenuate high-frequency switching noise originating from adjacent IGBT-based power converters. In turbine control cabinets, where variable-frequency drives and exciter thyristor bridges operate in close proximity, conducted emissions in the 150 kHz–30 MHz band are a persistent concern. The onboard filter reduces this interference to levels compliant with EN 55011 Class A industrial limits.

Thermal Management: The PCB uses a 4-layer stackup with dedicated internal copper planes for heat spreading. Power dissipation components — primarily the distribution FETs and protection MOVs — are positioned adjacent to the card edge to maximize convective airflow from the cabinet’s forced-air cooling system. This layout prevents localized hot spots that accelerate electrolytic capacitor aging, a common failure mode in long-running turbine control installations.

Fault Detection Logic: The module integrates a supervisory circuit that monitors output rail voltage against a reference threshold. If any distribution path drops below the defined window (typically ±5% of nominal), the supervisory circuit asserts a fault flag on the Mark VI diagnostic bus within one scan cycle. This allows the Mark VI controller to log the event with a timestamp and initiate a controlled response — either alarm annunciation or automatic switchover to a redundant power path — before the exciter subsystem experiences a hard fault.

System Integration Benefits

• Deterministic Fault Propagation Control: The module’s onboard supervisory logic ensures that power distribution faults are detected and flagged within a single Mark VI scan cycle, preventing undetected degradation from accumulating into unplanned outages.
• Backplane Bus Participation: Unlike passive distribution boards, the IS200EPDMG1B actively communicates on the Mark VI internal diagnostic bus, providing real-time power-path health data to the system controller without requiring external monitoring hardware.
• Galvanic Isolation Across All Channels: Optocoupler isolation on each output channel eliminates ground loop currents that would otherwise introduce measurement offsets in the AVR feedback path, improving voltage regulation accuracy.
• Reduced Wiring Complexity: The module consolidates exciter power distribution into a single rack-mounted card, eliminating the discrete relay and fuse assemblies that characterize older turbine control architectures and reducing panel wiring density by an estimated 30–40%.
• Hot-swap Compatibility: Designed for extraction and insertion under power in Mark VI rack configurations equipped with the appropriate backplane interlock, minimizing maintenance downtime during scheduled inspections.
• Integrated Overcurrent Protection: Each distribution channel incorporates electronic current limiting, preventing a shorted exciter load from collapsing the shared power bus and affecting adjacent modules in the same rack.
• Firmware-Transparent Operation: The IS200EPDMG1B requires no firmware configuration — it is recognized automatically by the Mark VI controller upon insertion, with all diagnostic parameters mapped to standard HMI display points without custom engineering.
• Long Service Life Under Thermal Cycling: The 4-layer PCB construction and conservative component derating (components operated at 60–70% of rated stress) are consistent with a design life exceeding 15 years in a properly maintained turbine control cabinet environment.

Quality Assurance & Global Logistics

Every IS200EPDMG1B supplied by siemensplc.com is a genuine GE OEM component. We do not supply cloned, remarked, or third-party-manufactured substitutes. Our procurement chain traces each unit to verifiable distribution sources, and all incoming stock undergoes a structured inspection protocol before entering our warehouse inventory.

Inspection Protocol:

• Visual authentication: GE part marking, date code, PCB revision label, and connector condition verified against reference samples.
• Electrical bench test: DC input rail energized, output channel voltages measured and logged against specification limits.
• Diagnostic bus check: Module inserted into a Mark VI test rack; fault-free recognition confirmed via HMI diagnostic screen.
• ESD packaging: Units stored and shipped in anti-static bags within foam-lined, double-wall corrugated cartons.

Logistics from Xiamen, China: Our warehouse is located in Xiamen — a designated Free Trade Zone port city with direct access to international freight lanes serving North America, Europe, Southeast Asia, and the Middle East. Standard export shipments depart within 1–3 business days of order confirmation. We support DHL Express, FedEx International Priority, UPS Worldwide Expedited, and sea freight consolidation for bulk orders. Full export documentation is provided as standard: commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10 for control modules). For destinations requiring import permits or end-user declarations, our logistics team provides pre-shipment documentation support.

Warranty Terms: 12 months from shipment date, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or credit issued upon confirmation of defect.
