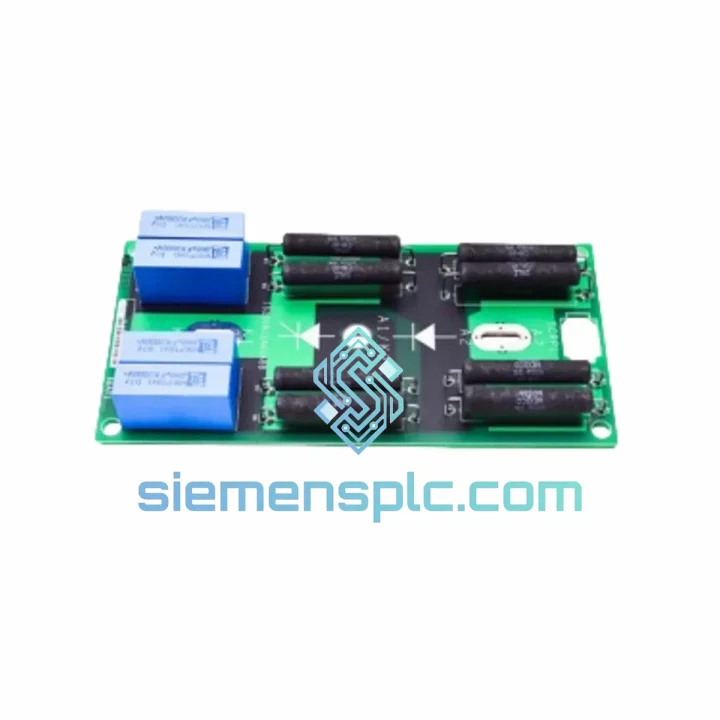

GE IS200RCSAG1ABB RC Snubber Board – Mark VI Speedtronic

GE IS200RCSAG1ABB RC Snubber Board – Transient Suppression Architecture in Mark VI Speedtronic™ Control Loops

The GE IS200RCSAG1ABB is a passive RC snubber board engineered specifically for the GE Mark VI Speedtronic™ turbine control platform. Its primary function is to absorb and dissipate inductive voltage transients generated by relay coil de-energization and solenoid valve switching events within the I/O subsystem. Without adequate snubber suppression, these transients — which can exceed 10× the nominal coil voltage in microsecond-scale spikes — propagate backward through the I/O backplane and induce bit-flip errors, false trip signals, or accelerated dielectric degradation in adjacent output driver ICs.

The IS200RCSAG1ABB mounts directly within the Mark VI I/O rack, positioned between the relay output terminals and the inductive load field wiring. Each RC network on the board is factory-matched to the impedance profile of GE-specified relay coils and solenoid actuators, ensuring the RC time constant (τ = R × C) is tuned to the actual load characteristics rather than a generic approximation. This precision matching is critical: an under-damped snubber allows residual ringing to persist; an over-damped network slows relay release time and introduces timing errors in sequenced control logic.

In gas turbine applications, the board protects signal integrity during fuel control valve actuation sequences, where multiple solenoids switch within milliseconds of each other during start-up and load-following events. In steam turbine installations, it suppresses kickback from trip solenoids and governor valve actuators, where the inductive energy stored in the coil (E = ½LI²) must be safely dissipated without coupling into adjacent analog measurement channels. Combined-cycle plant configurations — where Mark VI manages both gas and steam turbine control loops from a shared I/O rack — place the highest transient density demands on the snubber board, making the IS200RCSAG1ABB a non-negotiable BOM item in those architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200RCSAG1ABB operates on a straightforward but precisely engineered passive suppression principle. Each relay output channel in the Mark VI I/O system drives an inductive load — a relay coil, solenoid valve, or contactor — through a dedicated output driver transistor. When the driver switches off, the magnetic field stored in the coil collapses, generating a back-EMF spike. The RC snubber network, connected in parallel with the load, provides a low-impedance discharge path for this energy.

RC Time Constant Matching: The resistor value (R) is selected to limit peak transient current through the capacitor, while the capacitor value (C) is sized to absorb the inductive energy (½LI²) without exceeding its voltage rating. GE’s factory selection ensures the RC time constant is matched to the specific relay coil inductance values used in Mark VI I/O assemblies, typically in the range of 10–100 mH. This prevents both under-damping (residual oscillation) and over-damping (delayed relay release affecting sequence timing).

EMC Design Discipline: By clamping transients at the source — the relay coil terminals — the IS200RCSAG1ABB prevents high-frequency conducted emissions from propagating onto the I/O backplane bus. This is architecturally superior to board-level TVS diode protection on the I/O module itself, because it eliminates the transient before it enters the shared bus structure. In Mark VI racks with multiple I/O boards sharing a common backplane, this source-level suppression prevents cross-coupling between channels.

Thermal Stability: The resistors on the snubber board are rated for repetitive pulse power dissipation, not just steady-state wattage. In turbine control applications where relay switching frequency can reach several cycles per minute during load-following operations, cumulative thermal stress on snubber resistors is a real degradation mechanism. GE’s component selection for the IS200RCSAG1ABB accounts for this duty cycle, specifying pulse-rated resistors with adequate thermal mass to handle sustained switching sequences without parameter drift.

No Firmware Dependency: As a fully passive board, the IS200RCSAG1ABB has zero firmware, software, or configuration dependencies. Replacement requires no HMI interaction, no Toolbox reconfiguration, and no system restart beyond normal maintenance procedures. This characteristic makes it the lowest-risk replacement component in the Mark VI BOM.

System Integration Benefits

• Protects downstream I/O modules from transient-induced failure — VCMI, VTUR, VGEN, and TREG boards are shielded from back-EMF spikes that would otherwise stress output driver ICs and reduce MTBF.
• Eliminates nuisance trips caused by EMI-induced signal errors — False relay chatter and spurious digital input state changes driven by conducted transients are suppressed at the source, improving system availability.
• Maintains deterministic relay switching timing — Proper RC damping ensures relay release times remain within the timing windows defined in Mark VI sequence logic, preventing race conditions in start-up and shutdown sequences.
• Reduces conducted EMI on the I/O backplane — Source-level suppression prevents high-frequency noise from coupling into analog measurement channels sharing the same rack, preserving measurement accuracy on thermocouple, RTD, and 4–20 mA inputs.
• Extends service life of relay output driver transistors — By clamping peak transient voltage below the breakdown rating of output driver ICs, the snubber board directly reduces the failure rate of the most common Mark VI I/O failure mode.
• Drop-in replacement with no reconfiguration overhead — Identical form, fit, and function to OEM specification; maintenance teams can execute replacement during a planned outage window without engineering support.
• Supports IEC 61511 functional safety compliance — Proper transient suppression is a prerequisite for maintaining the integrity of safety instrumented functions (SIF) implemented through Mark VI relay outputs in SIL-rated turbine protection systems.
• Compatible with both Mark VI and Mark VIe rack configurations — The board’s mechanical and electrical interface is consistent across both platform generations, simplifying spare parts inventory management for plants operating mixed fleets.
• Reduces unplanned downtime costs — Each avoided nuisance trip in a combined-cycle plant represents avoided generation loss measured in tens of thousands of dollars per event; the IS200RCSAG1ABB is a low-cost insurance component against high-consequence failures.
• Supports full supply-chain traceability — Units supplied by siemensplc.com include part number, revision, and test documentation, satisfying the traceability requirements of ISO 9001-compliant maintenance programs.

Quality Assurance & Global Logistics

Every IS200RCSAG1ABB unit dispatched from our Xiamen, China facility undergoes a structured inspection protocol before release. Visual inspection confirms board integrity, component seating, and absence of physical damage. Component-level verification checks resistor and capacitor values against OEM specifications using precision LCR measurement. Functional bench testing validates the snubber network’s impedance characteristics under simulated switching conditions.

Units are packaged in anti-static ESD bags with foam cushioning, compliant with IPC/JEDEC J-STD-033 handling standards for moisture-sensitive and ESD-sensitive assemblies. Each shipment includes a packing list with part number, revision level, and inspection records. Full test documentation is available upon request for quality-critical procurement programs.

From Xiamen, we ship globally via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. In-stock units are dispatched within 1–3 business days of order confirmation. For urgent plant maintenance requirements, same-day dispatch is available on confirmed orders received before 14:00 CST. All shipments are covered by a 12-month warranty against defects in materials and workmanship, with advance replacement available for critical plant applications.

We maintain standing inventory of IS200-series Mark VI components to support both planned maintenance programs and emergency breakdown sourcing. Volume pricing is available for EPC contractors, OEM service organizations, and plant operators managing multi-unit fleets.
