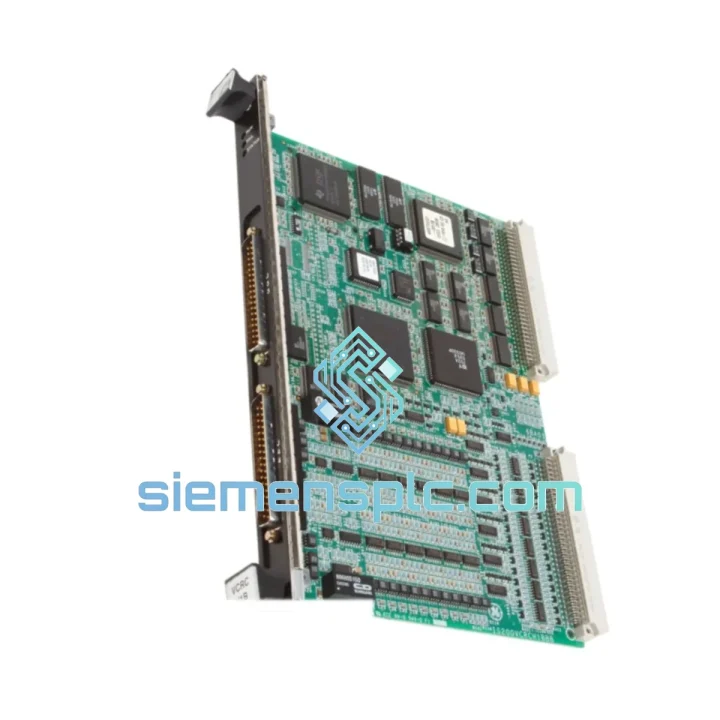

GE IS200SHRAH2A Analog I/O Board

GE IS200SHRAH2A – Stop the Clock on Your Turbine Downtime

Every minute a Mark VI turbine control system sits offline, your operation bleeds money. A failed HART Analog I/O board doesn’t just interrupt a signal — it can trip an entire unit, freeze a compressor train, or force a manual override that puts personnel at risk. The GE IS200SHRAH2A is the board that sits at the nerve center of your analog field instrument loop, and when it fails, you need a verified replacement in hand — not a three-week lead time from a distributor who has to “check with the factory.”

We stock the IS200SHRAH2A at our Xiamen warehouse. Same-day dispatch is available for orders confirmed before 15:00 CST. DHL Express and FedEx International Priority put this board on your bench within 48–72 hours to most destinations in Asia, the Middle East, Europe, and North America. While your competitors are still waiting on quotes, your turbine is back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for IS200SHRAH2A:

• Fault Code L3DIAG_SHRA / SHRA_FAIL: The Mark VI controller logs this when the board fails its self-diagnostic cycle at power-up or during runtime. First action — reseat the board firmly in its VME slot. Backplane connector oxidation is a frequent culprit in humid coastal environments. If the fault persists after reseating, the board itself is the failure point.
• 4–20 mA channel reading stuck at 3.8 mA or 21 mA: These rail values indicate the analog front-end has lost its reference or the channel’s input protection circuit has blown due to a field wiring surge. Check field wiring for ground faults before installing the replacement — a shorted field loop will kill a new board within minutes.
• HART communication loss on all channels simultaneously: If HART diagnostics drop across the entire board while 4–20 mA signals remain intact, suspect the onboard HART modem IC. This is not field-repairable — board swap is the only resolution.
• Intermittent channel dropouts correlating with vibration: Solder joint fatigue on the VME edge connector. Visible under magnification as hairline cracks at pin bases. Replace the board; do not attempt reflow in the field.

Replacement procedure — field checklist:

• Power down the I/O rack section feeding the SHRA slot. Confirm de-energization with a multimeter before touching the board — do not rely solely on the controller’s status display.
• Document the slot address and any DIP switch or jumper settings on the outgoing board before extraction. Photograph both sides.
• The IS200SHRAH2A uses automatic slot addressing via the Mark VI backplane — no manual address switches required on this model. However, verify your cabinet revision: early Mark VI builds (pre-2005) may require a jumper on J1 to enable HART pass-through mode. Check your cabinet BOM.
• Seat the replacement board with firm, even pressure. The VME connector requires approximately 15–20 N of insertion force. Do not force — misalignment will bend pins.
• After power-up, navigate to the Mark VI Toolbox → I/O Configuration → SHRA slot and run a channel calibration verification. HART device descriptors should auto-populate within 30 seconds if field instruments are powered and wired correctly.
• Firmware matching: IS200SHRAH2A H2A revision is compatible with Mark VI controller firmware R04.02 and above. If your controller is running an earlier revision, contact GE service or our technical team before installing.

Reliability in Harsh Conditions

The IS200SHRAH2A was not designed for a climate-controlled server room. It was built for the realities of turbine halls — where ambient temperatures swing from sub-zero winter startups to 55°C summer peaks inside poorly ventilated enclosures, where compressor vibration transmits through every structural member, and where coastal humidity drives corrosion into every unsealed connector.

GE’s qualification testing for Mark VI I/O boards includes sinusoidal vibration per IEC 60068-2-6 across the 5–150 Hz spectrum, random vibration per IEC 60068-2-64, and thermal cycling from -25°C to +70°C with controlled humidity exposure. The conformal coating applied to the IS200SHRAH2A PCB provides a measurable barrier against condensation and airborne contaminants — a detail that matters when your turbine hall sits 200 meters from a saltwater cooling tower.

Units we supply from stock are inspected for coating integrity, connector condition, and component seating before dispatch. Any board showing evidence of thermal stress, corrosion ingress, or physical impact is quarantined and not offered for sale. What ships to you is what we would install ourselves on a live unit.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with direct DHL and FedEx hub connections. Here is how a typical urgent order moves:

• Order confirmed before 15:00 CST: Same-day packing and handover to carrier.
• DHL Express Worldwide: Xiamen → Singapore / Dubai / Frankfurt / Houston in 48–72 hours under normal customs conditions.
• FedEx International Priority: Alternative routing for destinations where DHL coverage is limited or where the customer has a preferred FedEx account number for billing.
• Export documentation: Commercial invoice, packing list, and country-of-origin certificate prepared as standard. CITES, dual-use, or end-user certificate requirements handled on request — advise us at order stage.
• Packaging: Anti-static bag, foam-lined rigid carton, fragile labeling. The board arrives in the same condition it left our warehouse.
• Tracking: Waybill number provided within 2 hours of carrier pickup. Real-time tracking link shared via email and WhatsApp.

For customers in Southeast Asia, the Middle East, or Eastern Europe where customs clearance can add unpredictable delays, we recommend selecting DDP (Delivered Duty Paid) shipping terms where available. Contact us to discuss options before placing your order if customs complexity is a concern for your site.
