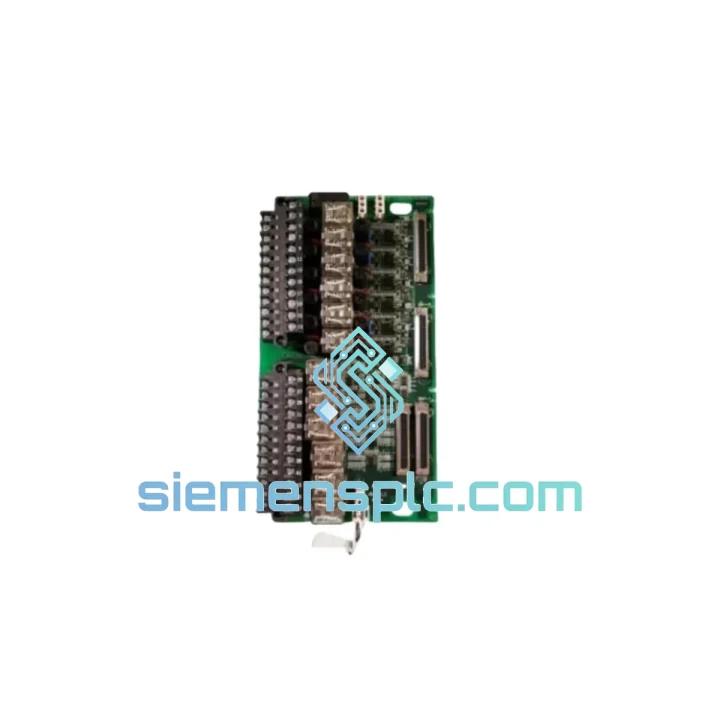

GE IS200TRLYH1BGE Relay Output Terminal Board

IS200TRLYH1BGE Down? Every Minute of Turbine Downtime Costs You Real Money — We Ship Today

A failed relay output terminal board in a Mark VI or Mark VIe turbine control rack doesn’t just trigger an alarm — it shuts the unit down. Whether you’re running a Frame 7 gas turbine, a combined-cycle steam block, or a compressor station ESD loop, the IS200TRLYH1BGE sits at the exact point where control logic meets field-side trip circuits. When it fails, nothing moves. We stock this board in Xiamen and can have it on a DHL Express flight within hours of your order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on IS200TRLYH1BGE:

1. Relay contact welding / stuck-closed fault. Symptom: the Mark VI diagnostic screen shows a relay output commanded OFF but field voltage is still present on the trip circuit. Root cause is usually a high-inductive load — fuel shutoff solenoids and trip coils with no snubber diode will arc the contacts on every de-energize cycle. Before fitting the replacement board, verify the field-side load has proper arc suppression. If not, the new board will fail the same way within months.

2. Intermittent relay chatter causing nuisance trips. Symptom: turbine trips on a relay output that shows no fault in the controller. Pull the TRLY board and inspect the relay coil drive transistor on the PCB — thermal cycling in high-ambient enclosures degrades the solder joints on these components. Reflow is not a field fix; replace the board.

3. Terminal block loosening under vibration. Mark VI racks in gas turbine enclosures see significant vibration. The IS200TRLYH1BGE uses screw-clamp terminal blocks — torque them to spec (typically 0.5–0.6 N·m) and apply thread-lock compound on the terminal screws. A loose terminal on a trip circuit is indistinguishable from a relay failure until you pull the board.

Replacement procedure (field-verified steps):

1. Confirm the Mark VI controller is in the correct maintenance mode for your architecture (simplex: inhibit trip outputs; TMR: verify voted logic before pulling one board).
2. Document all terminal wiring with photos before disconnecting — the TRLY board wiring follows GE standard drawings but field modifications are common in older installations.
3. Power down the I/O rack section feeding the TRLY slot. The board is not hot-swappable in all configurations — check your site-specific Mark VI project documentation.
4. Seat the replacement IS200TRLYH1BGE firmly into the terminal board rack. Verify the ribbon connector is fully engaged — a partially seated connector causes intermittent relay output faults that are extremely difficult to diagnose.
5. Re-torque all field wiring terminals. Perform a relay output function test from the Mark VI toolbox before returning the unit to service.
6. In TMR systems: confirm voted relay output logic is operating correctly across all three I/O packs before releasing the inhibit.

Firmware / configuration note: The IS200TRLYH1BGE is a passive terminal board — it contains no firmware. Configuration is held in the Mark VI I/O module (TRLY I/O card) and the controller project file. No re-addressing or DIP switch setting is required on the terminal board itself. However, confirm the mating I/O module revision matches your controller project file to avoid I/O pack communication faults after replacement.

Reliability in Harsh Conditions

GE designed the Mark VI I/O terminal boards for the inside of gas turbine enclosures — not a climate-controlled server room. The IS200TRLYH1BGE is built to operate continuously in environments that would destroy standard industrial electronics.

The PCB substrate and conformal coating are specified to handle sustained ambient temperatures at the upper end of the 0–60 °C operating range, with short-term excursions beyond that during turbine startup transients. Relay coil insulation and contact materials are selected for long-term thermal stability, not just initial qualification.

Vibration resistance is a core design requirement, not an afterthought. Gas turbine enclosures transmit broadband mechanical vibration from the turbine shaft, compressor stages, and auxiliary equipment. The board’s component mounting, PCB trace routing, and terminal block design are all optimized to maintain electrical integrity under continuous vibration exposure — a failure mode that eliminates most commercial-grade relay boards within months.

Humidity and condensation resistance is addressed through the conformal coating applied to the PCB. In coastal power plants, offshore platforms, and tropical climates, uncoated boards corrode at terminal connections and relay coil pins within a single wet season. The IS200TRLYH1BGE’s coating provides a barrier against moisture ingress without compromising thermal dissipation.

EMI immunity is critical in turbine control environments where high-voltage switchgear, variable frequency drives, and large motor starters operate in close proximity to the control system. The board’s relay contact isolation and PCB layout provide the separation needed to prevent field-side transients from coupling into the control system logic.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to power generation facilities across Southeast Asia, the Middle East, Europe, and the Americas.

Standard export process for IS200TRLYH1BGE:

1. Order confirmation received → board pulled from stock, inspected, and ESD-packaged within 2 hours.
2. Export documentation prepared → commercial invoice, packing list, and HS code declaration (HS 8537.10) completed same day.
3. DHL Express / FedEx International Priority pickup → booked for next available flight. Tracking number sent to buyer within 4 hours of handover.
4. Transit times: Southeast Asia 1–2 days; Middle East 2–3 days; Europe 3–4 days; North America 3–5 days.
5. Customs clearance support → we provide all documentation required for customs clearance in your country. For time-critical shipments, we can coordinate with your local customs broker directly.
6. Delivery confirmation → tracking updates sent proactively. If a shipment is delayed at customs, we engage immediately — downtime is not acceptable.

For AOG (Aircraft on Ground) or equivalent turbine emergency situations, contact us directly on WhatsApp for same-day shipment coordination outside normal business hours.
