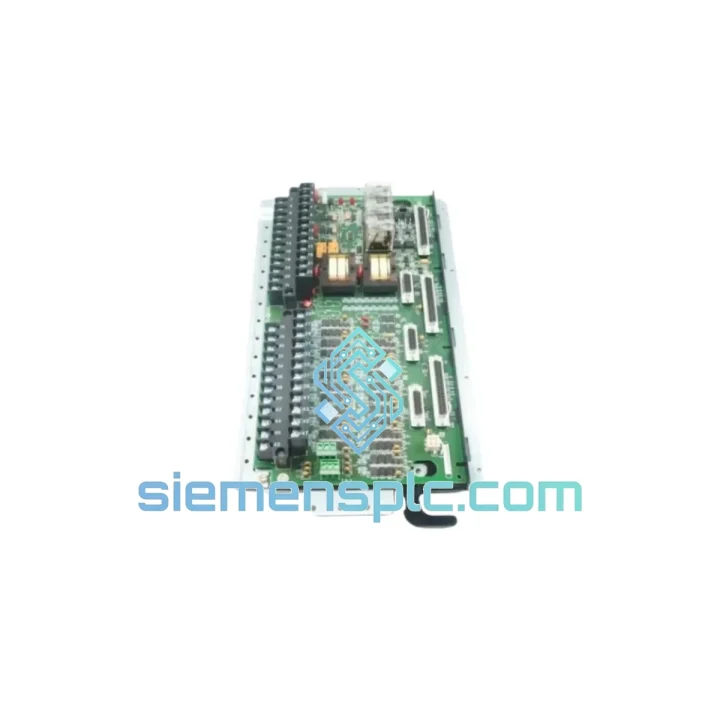

GE IS200TTURH1BED Termination Board

IS200TTURH1BED Down? Every Minute of Turbine Downtime Costs You — Ship Today from Xiamen

A failed GE IS200TTURH1BED Termination Board in a Mark VI Speedtronic system doesn’t just trigger a fault alarm — it shuts down your entire turbine train. Whether you’re running a Frame 7 gas turbine at a power plant or a steam turbine at a petrochemical facility, the TTUR termination board is the physical wiring interface between your field I/O and the Mark VI controller. When it fails, there is no workaround. You need an exact replacement, fast.

We stock the IS200TTURH1BED in Xiamen and ship via DHL/FedEx express within 24 hours of order confirmation. Most customers in Southeast Asia receive units within 2–3 business days. Europe and the Americas typically within 4–5 business days. No waiting weeks for OEM lead times. No production losses stacking up while procurement runs its cycle.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The IS200TTURH1BED is a passive termination board — it carries no firmware and requires no software configuration. But that doesn’t mean replacement is trivial. Here’s what field experience tells you to watch before you pull the old board:

Common Failure Signatures:

• L3TBAT / L3TTUR fault active: Mark VI diagnostic alarm pointing directly at the TTUR termination board. Check the IONet diagnostic screen in ToolboxST — if the VTUR card shows healthy but field signals are missing, the termination board is the prime suspect.
• Speed signal loss (MPU inputs): Magnetic pickup unit wiring terminates on this board. Corrosion or cracked solder joints on the MPU terminal block cause intermittent overspeed protection trips. Inspect TB1/TB2 terminal rows first.
• Thermocouple open-circuit alarms across multiple channels simultaneously: If 4+ TC channels go open at once, the ribbon cable connector between the TTUR board and the VCMI card is the likely culprit — but if reseating the ribbon doesn’t clear it, the board itself has failed.
• Valve position feedback dropout: LVDT signal conditioning passes through this board. Erratic servo valve behavior with no hydraulic fault often traces back here.

Replacement Procedure — Field Checklist:

1. Initiate controlled shutdown — Never hot-swap a termination board on a running turbine. Coordinate with operations for a planned outage window, even if brief.
2. Photograph all field wiring before disconnection — The TTUR board has dense terminal blocks. A photo takes 10 seconds and saves hours of re-wiring errors.
3. Label every wire with terminal number — Use adhesive wire markers. Cross-reference against the Mark VI I/O list in ToolboxST before pulling any wire.
4. Check ribbon cable condition — Inspect the flat ribbon cable from TTUR to VTUR card for pinched conductors or bent pins. Replace the cable if in doubt — they’re cheap insurance.
5. No DIP switch or jumper settings required — The IS200TTURH1BED is purely passive. No addressing, no firmware, no configuration. Wire-for-wire replacement.
6. Torque terminal screws to spec — Loose field wiring terminals are the #1 cause of repeat faults after board replacement. Use a calibrated torque screwdriver.
7. Power-up sequence — Restore Mark VI power, verify IONet communication on ToolboxST, confirm all I/O signals are reading correctly before releasing the unit to operations.
8. Clear latched alarms — Use ToolboxST Alarm Viewer to reset any latched TTUR-related diagnostics after successful replacement.

Revision Note: The BED suffix indicates a specific PCB revision. If your system was commissioned with a BED revision board, use BED as the replacement. Mixing revisions (e.g., substituting BAB or BEB) is generally safe on the TTUR board since it carries no active components, but always confirm with your GE service documentation or contact us for cross-reference support.

Reliability in Harsh Conditions

Turbine control panels are not office environments. The IS200TTURH1BED is built to GE’s Speedtronic Mark VI environmental specifications, which means it’s designed to survive the conditions that destroy lesser components:

• Vibration: Turbine decks generate continuous broadband vibration. The TTUR board’s through-hole construction and conformal coating protect solder joints from fatigue cracking that kills surface-mount boards in high-vibration environments. Terminal block screws are self-locking to resist vibration-induced loosening.
• Temperature cycling: Gas turbine enclosures see wide thermal swings — cold starts in winter climates, sustained high ambient during summer peak load. The board’s FR4 substrate and component selection are rated for continuous operation across the full 0–60°C ambient range without derating.
• Humidity and condensation: Coastal power plants, offshore platforms, and tropical installations expose control panels to high humidity. The conformal coating on the IS200TTURH1BED provides a barrier against moisture ingress on the PCB surface, reducing the risk of leakage currents and corrosion on signal traces.
• EMI/RFI: Turbine environments are electrically noisy — large motors, VFDs, and high-current switching all generate interference. The board’s grounding architecture and shielded signal routing maintain signal integrity on low-level thermocouple and MPU inputs even in high-noise panels.

Units supplied from our Xiamen stock are stored in climate-controlled ESD-safe conditions and inspected for any signs of environmental damage before shipment. Refurbished units are cleaned ultrasonically, re-coated where necessary, and bench-tested under load before release.

Global Express Logistics

Downtime doesn’t wait for slow freight. Our logistics process is built around one priority: getting the board to your site before the next production shift.

• Order cutoff: Orders confirmed before 14:00 CST ship same business day from our Xiamen warehouse.
• Carrier options: DHL Express, FedEx International Priority, and UPS Express Saver — all with full tracking and door-to-door delivery.
• Typical transit times: Southeast Asia 2–3 days | Middle East 3–4 days | Europe 4–5 days | North America 4–6 days | Australia 3–5 days.
• Export documentation: Commercial invoice, packing list, Certificate of Origin, and HS code declaration prepared for every shipment. We handle export customs clearance from China — you handle import at your end.
• ESD-safe packaging: Every board ships in anti-static bags inside foam-lined export cartons. Boards arrive at your site in the same condition they left our warehouse.
• Urgent freight escalation: For critical outages, contact us via WhatsApp for same-day booking on next available flight out of Xiamen Gaoqi International Airport.
