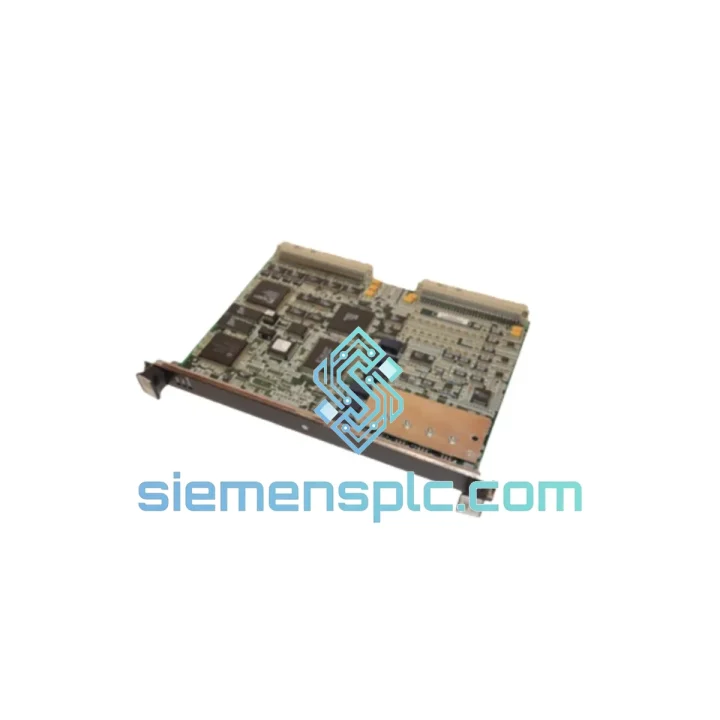

GE IS200VAICH1CBA Analog Input Module – Mark VI Series

GE IS200VAICH1CBA — Analog Input Signal Conditioning Module for Mark VI Turbine Control Architecture

The IS200VAICH1CBA is a VME-form-factor analog input circuit board manufactured by General Electric as part of the IS200 I/O series for the Mark VI Turbine Control System. Its primary function within the control loop is to acquire continuous process variables — thermocouple temperatures, RTD readings, 4–20 mA current loops, and millivolt-level differential signals — and deliver digitized, conditioned data to the Mark VI controller over the IONet backplane. Without a functioning analog input board, the controller operates blind: no temperature feedback, no pressure trending, no flow measurement. The IS200VAICH1CBA is the hardware layer that closes that gap.

In a Mark VI architecture, the I/O subsystem is distributed across a VME crate where each board occupies a dedicated slot and communicates with the VCMI (VME Communications Module Interface) via a high-speed parallel backplane. The IS200VAICH1CBA handles the front-end signal chain: input terminal conditioning, anti-aliasing filtering, multiplexed A/D conversion, and digital handoff to the backplane. Each analog channel is individually isolated, allowing the board to handle mixed signal sources — thermocouples at millivolt levels alongside 4–20 mA transmitters — without ground loop interference corrupting adjacent channels.

Real-time stock inquiry and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS200VAICH1CBA’s signal chain begins at the terminal board interface, where field wiring connects via the companion terminal board (e.g., IS200TBAIH1C). Signals enter through a passive RC anti-aliasing network that attenuates frequencies above 500 Hz, preventing aliasing artifacts from corrupting the digitized output — a non-trivial concern in turbine halls where variable-frequency drives and high-current switching equipment generate broadband conducted noise.

Each channel group passes through an optocoupler isolation stage rated at 500 V AC. This galvanic barrier serves two purposes: it eliminates ground loop currents that would otherwise introduce DC offset errors into millivolt-level thermocouple measurements, and it protects the VME backplane electronics from transient overvoltages caused by field wiring faults or lightning-induced surges on long cable runs.

A precision instrumentation amplifier with programmable gain (PGA) follows the isolation stage. The PGA adjusts input range to match the signal type selected per channel — narrow-range for thermocouple mV signals, wide-range for ±10 V DC process transmitters. Gain switching is controlled by the VCMI over the backplane, allowing the Mark VI controller to reconfigure channel assignments without physical hardware changes.

The multiplexed 16-bit successive-approximation ADC samples each channel sequentially at a rate sufficient to meet the Mark VI’s scan cycle requirements. The 16-bit resolution provides 65,536 discrete levels across the input span, yielding a theoretical resolution of approximately 0.0015% of full scale — adequate for thermocouple cold-junction compensation calculations and PID loop feedback with sub-degree temperature discrimination.

EMC hardening on the IS200VAICH1CBA includes multi-layer PCB construction with dedicated ground planes, ferrite bead filtering on power supply rails, and shielded trace routing for analog signal paths. The board meets IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity) requirements, consistent with GE’s Mark VI system-level EMC certification for industrial power generation environments.

System Integration Benefits

• Deterministic scan cycle contribution: The IS200VAICH1CBA completes its full 16-channel conversion cycle within the Mark VI’s defined I/O scan period, ensuring analog data arrives at the controller with bounded latency — a prerequisite for closed-loop turbine speed and temperature control.
• Zero-configuration channel typing: Channel signal type (thermocouple, RTD, mA, voltage) is software-configured via the Mark VI Toolbox, eliminating the need for hardware jumpers or DIP switch changes during commissioning or channel reassignment.
• Integrated cold-junction compensation: An onboard precision temperature sensor measures the terminal board ambient temperature and applies automatic cold-junction compensation to thermocouple channels, removing the need for external CJC hardware.
• Per-channel diagnostic transparency: The board reports open-circuit detection, over-range, under-range, and A/D conversion fault status for each channel independently. The Mark VI controller surfaces these diagnostics to the HMI alarm system without requiring custom logic.
• Redundancy-ready architecture: In TMR (Triple Modular Redundant) Mark VI configurations, three IS200VAICH1CBA boards can be installed in parallel racks. The VCMI performs median-select voting on the three digitized values, masking a single board failure without process interruption.
• Hot-swap compatibility: The VME mechanical design and backplane protocol support board extraction and insertion under power in non-TMR configurations, reducing maintenance downtime during scheduled inspections.
• Firmware-independent operation: The IS200VAICH1CBA’s analog front-end hardware operates independently of Mark VI firmware revisions. Board replacement does not require firmware re-flashing, simplifying emergency swap procedures.
• Consistent signal fidelity across operating temperature: Precision voltage references and temperature-compensated gain stages maintain ADC accuracy within ±0.1% of reading across the full 0–60°C operating range, preventing thermal drift from introducing systematic bias into process measurements during seasonal ambient temperature swings in outdoor turbine enclosures.

Quality Assurance & Global Logistics

Every IS200VAICH1CBA unit supplied by siemensplc.com is sourced as genuine GE-manufactured hardware. No third-party remanufactured or counterfeit substitutes are stocked. Each board undergoes a structured pre-shipment inspection protocol:

• Visual inspection: PCB surface examined for component damage, solder joint integrity, connector pin condition, and conformal coating continuity.
• Functional channel verification: All 16 analog input channels are exercised with calibrated signal sources. ADC output values are compared against reference measurements to confirm conversion accuracy within specification.
• Isolation integrity test: Isolation barrier resistance is verified at 500 V DC to confirm optocoupler integrity has not degraded from prior field exposure.
• ESD-safe packaging: Boards are packed in anti-static bags, foam-lined cartons, and outer corrugated packaging rated for international air freight handling.

Shipments originate from Xiamen, China. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every order. Preferred carriers include DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Emergency same-day dispatch is available for confirmed in-stock units when orders are placed before 14:00 CST.

A 12-month warranty covers all units against functional defects under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation.
