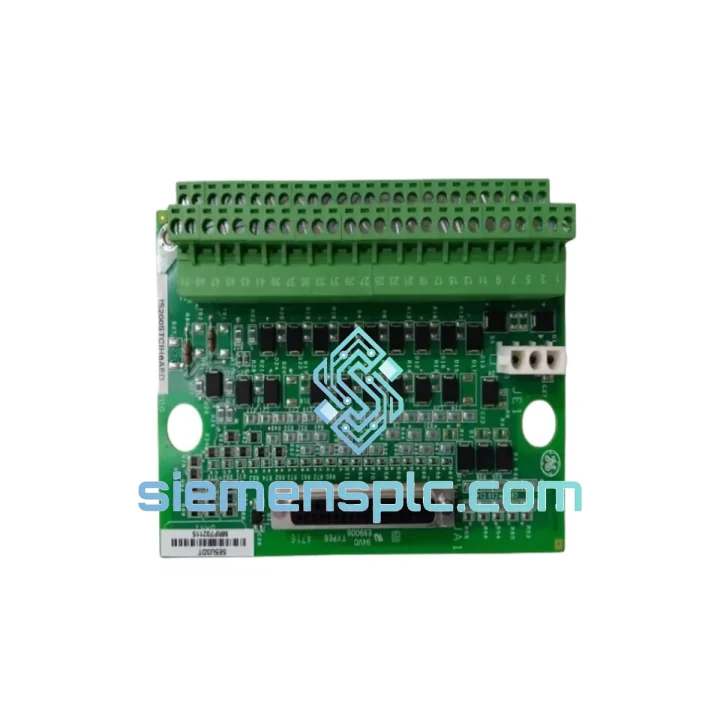

GE IS220PAOCH1BE Analog Output Module

GE IS220PAOCH1BE — Stop the Clock on Your Turbine Downtime

Every minute a gas turbine sits idle, you’re bleeding money. A failed analog output module in your Mark VIe rack doesn’t just trip an alarm — it shuts down the entire control loop, kills your process, and puts your team under pressure that compounds by the hour. The GE IS220PAOCH1BE is the exact card you need to get back online. We stock it. It ships today from Xiamen. No waiting on OEM lead times that stretch into weeks.

The IS220PAOCH1BE is a dedicated Analog Output Module within GE’s IS220 I/O series, purpose-built for the Mark VIe Turbine Control System. It handles precision 4–20 mA analog output channels used to drive actuators, control valves, IGV positioners, and fuel control systems in gas turbine, steam turbine, and combined-cycle plant environments. When this card fails, your turbine loses its ability to command field devices — and that’s a hard stop.

We’ve shipped this exact module to power plants in Southeast Asia, the Middle East, and Europe. Our team has handled emergency orders at 2 AM. We know what’s at stake when you call us.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an IS220PAOCH1BE is not a plug-and-play operation if you skip the pre-checks. Here’s what field experience actually looks like:

Common Failure Symptoms:

• Mark VIe HMI shows “AO Channel Fault” or “Output Deviation Alarm” on one or more channels — the card’s DAC has likely failed or the output driver is shorted.
• “IONet Communication Loss” fault pointing to the AO module slot — check the backplane connector pins first; if clean, the card’s onboard processor has failed.
• Control valve or actuator stuck at last position with no response to setpoint changes — the 4–20 mA loop is open; isolate to card vs. field wiring before condemning the module.
• Intermittent output drift on one channel while others are stable — classic sign of a failing DAC reference or a cold solder joint on the output stage, especially in high-vibration environments.

Replacement Procedure — Field Checklist:

• Step 1 — Confirm firmware revision: Before pulling the card, note the firmware version displayed in ToolboxST under the module’s properties. The replacement card must match or be compatible. Mismatched firmware causes the controller to reject the module on power-up.
• Step 2 — Place outputs in manual/safe state: Drive all AO channels to their safe fallback values via the HMI before removing the card. Never hot-swap an AO module with live control loops active — you will cause actuator runaway.
• Step 3 — Check the IS220 rack addressing: The IS220 series uses slot-based auto-addressing via the backplane. Confirm the replacement card is seated in the identical slot position. If you’re moving to a different slot, the ToolboxST configuration must be updated and downloaded before the card will function.
• Step 4 — Inspect backplane connector: Use a magnifier. Bent or corroded pins on the IS220 backplane connector are a common cause of “new card, same fault” situations. Clean with IPA and a soft brush if needed.
• Step 5 — Power-up and verify: After seating the card, monitor the IONet status LED (should go solid green within 30 seconds). In ToolboxST, verify all 8 channels report healthy status before returning loops to automatic control.
• Step 6 — Loop calibration check: Run a channel-by-channel output verification (0%, 25%, 50%, 75%, 100% of span) against a calibrated mA meter before handing back to operations. Document the results.

Configuration Notes: The IS220PAOCH1BE does not use physical DIP switches for addressing — all configuration is managed through GE’s ToolboxST software. Ensure your Mark VIe controller firmware is at a revision level that supports this specific module variant (suffix H1BE). If you’re unsure, send us your controller firmware version and we’ll confirm compatibility before you order.

Reliability in Harsh Conditions

The IS220 series was engineered for the inside of a turbine control enclosure — not a climate-controlled server room. GE designed these modules to survive the real world:

• Vibration resistance: Conformal-coated PCB construction resists mechanical stress from turbine vibration and transportation shock. The IS220PAOCH1BE meets IEC 60068-2-6 vibration test standards applicable to industrial control equipment.
• Thermal cycling: Rated for continuous operation from 0°C to 60°C with tolerance for short-duration excursions. The onboard thermal management handles the heat generated by 8 simultaneous 20 mA output channels without derating.
• Humidity and condensation: Conformal coating on critical PCB areas provides protection against humidity ingress — a real concern in coastal power plants and tropical climates where condensation forms during turbine cold starts.
• EMI/RFI immunity: Isolated output channels and shielded signal paths reduce susceptibility to the high-frequency electrical noise common in turbine generator environments. Each channel’s isolation barrier prevents ground loop interference from corrupting adjacent channels.
• Long-term component stability: Industrial-grade capacitors and precision resistors are specified for 10+ year service life under rated conditions — not consumer-grade components that drift after 3 years.

Units sourced through our network are inspected for signs of thermal stress, capacitor bulging, and PCB delamination before dispatch. We don’t ship cards that have been cooked.

Global Express Logistics

Our warehouse is in Xiamen, Fujian, China — one of the most logistics-connected cities in Asia, with direct access to DHL, FedEx, and UPS international hubs. Here’s how your order moves:

• Order confirmed → Same-day dispatch: Orders confirmed before 3:00 PM CST ship the same business day. Orders after cutoff ship next morning.
• DHL Express Worldwide: Typical transit time 2–4 business days to Europe, Middle East, and Southeast Asia. 3–5 days to the Americas. Real-time tracking from pickup to delivery.
• FedEx International Priority: Available for time-critical shipments where DHL is not preferred. Comparable transit times with FedEx’s dedicated customs clearance lanes.
• Export documentation: Commercial invoice, packing list, HS code declaration (HS 8537.10), and certificate of origin prepared for every international shipment. Customs clearance delays caused by missing paperwork are not something you’ll experience with us.
• Emergency freight: For genuine plant-down situations, we can arrange next-flight-out courier service. Contact us directly on WhatsApp — we respond within the hour, around the clock.
• Packaging: Anti-static bag, foam-lined box, outer carton. The card arrives in the same condition it left our warehouse.
