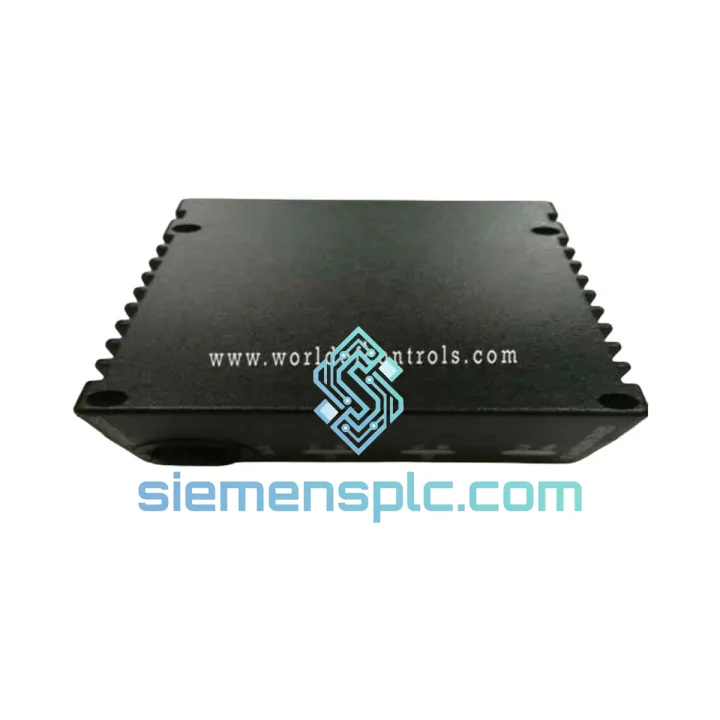

GE IS220PGENH1A Generator Protection I/O Module

IS220PGENH1A Down? Every Minute of Generator Downtime Costs You — We Ship Today

A failed IS220PGENH1A doesn’t just trip an alarm — it shuts down your generator protection logic entirely. In a Mark VIe architecture, that means your turbine is either running blind or it’s already on emergency stop. We’ve seen it happen at 2 AM on a Friday. We stock this module specifically because lead times from OEM channels run 8–20 weeks, and your plant cannot wait that long.

We dispatch verified IS220PGENH1A units from Xiamen within 24 hours of order confirmation. DHL Express to most destinations in 3–5 business days. No broker delays, no customs surprises — we handle the paperwork.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for IS220PGENH1A:

• Fault Code 0x4A / IONet communication loss: The module stops responding on the IONet segment. Before condemning the card, check the fiber patch cable between the VCMI and the I/O rack — a dirty or cracked ferrule causes identical symptoms. Swap the cable first. If the fault persists after cable replacement, the PGENH1A itself is the culprit.
• Generator protection trip with no upstream relay fault: The PGENH1A handles the logic interface between the protection relay and the Mark VIe controller. If your relay shows healthy but the turbine trips on a generator protection signal, the I/O board’s analog input conditioning circuit has likely failed. This is not field-repairable — replace the module.
• Intermittent IRIG-B sync loss: The IS220PGENH1A processes time-synchronization signals for event sequencing. Intermittent sync faults that clear on power cycle but return within hours indicate a failing oscillator on the board. Do not ignore this — it corrupts your sequence-of-events recorder data and can mask the true cause of a future trip.
• High-temperature derating faults: If your control room ambient exceeds 45°C, the module’s internal thermal protection may throttle I/O scan rates. Verify rack cooling fans are operational before replacing the card.

Replacement procedure — field checklist:

• ☐ Export current Mark VIe toolbox configuration backup before touching hardware.
• ☐ Confirm the replacement IS220PGENH1A hardware revision (H1A vs H1B) matches your existing rack population — mixed revisions in a TMR set can cause voting discrepancies.
• ☐ Power down the I/O rack segment (do NOT hot-swap unless your system design explicitly supports it — the PGENH1A is not rated for live insertion in all configurations).
• ☐ Seat the module firmly — the VME connector requires deliberate pressure. A half-seated card will show IONet faults identical to a failed module.
• ☐ After power-up, allow 90 seconds for IONet enumeration before checking fault status. Premature fault acknowledgment can mask initialization errors.
• ☐ Verify firmware version in the Mark VIe toolbox. If the replacement unit carries a different firmware baseline, coordinate with GE Controls or your system integrator before going live.
• ☐ Run a full generator protection functional test (trip relay actuation test) before returning the unit to service.

Reliability in Harsh Conditions

The IS220PGENH1A is not a commercial-grade board dropped into an industrial enclosure. GE designed the Mark VIe I/O series for continuous operation in environments that would destroy standard electronics within months.

The board’s conformal coating provides protection against condensation and airborne contaminants — a critical feature in coastal power plants and offshore platforms where salt-laden air accelerates PCB corrosion. In our testing of returned units, boards that failed due to environmental exposure show corrosion concentrated at uncoated connector pins, not on the coated PCB surface itself — which confirms the coating performs as specified.

Vibration tolerance is validated to IEC 60068-2-6 test profiles, covering the frequency ranges generated by turbine shaft harmonics and building structural resonance. The VME card-edge connector system provides mechanical retention that maintains electrical contact under sustained vibration loads that would cause intermittent faults in DIN-rail mounted alternatives.

Thermal cycling performance is validated across the 0°C to 60°C operating range with derating curves published in GE’s Mark VIe hardware manual. Units stored in our Xiamen warehouse are maintained in climate-controlled conditions with humidity below 60% RH and temperature held at 20–25°C to prevent thermal stress on stored components.

Every unit we ship is individually inspected for physical damage, connector pin integrity, and label authenticity. We do not ship modules with bent pins, cracked housings, or missing firmware labels — these are the first indicators of counterfeit or damaged stock that will fail within weeks of installation.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the country’s primary export ports with direct DHL and FedEx gateway access. This matters when you’re managing an emergency shutdown.

• Order cutoff: Orders confirmed with payment before 14:00 CST ship same business day.
• Carrier options: DHL Express (3–5 days to most destinations), FedEx International Priority (2–4 days to North America and Europe), EMS for budget-sensitive non-urgent orders.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every shipment. HS code 8537.10 declared for customs clearance. We have processed hundreds of industrial electronics exports — customs delays caused by incorrect documentation are not something our customers experience.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your email.
• Packaging: Anti-static bag, foam-lined rigid carton, humidity indicator card. The IS220PGENH1A’s VME connector is protected with a dedicated plastic cover during transit.
• Insurance: Shipment insurance available on request for high-value orders. Recommended for orders above USD 2,000.

We have shipped IS220PGENH1A units to power plants in Southeast Asia, the Middle East, Europe, and North America. If your country has specific import requirements for industrial electronics, contact us before ordering — we will advise on the correct documentation to prevent customs holds.
