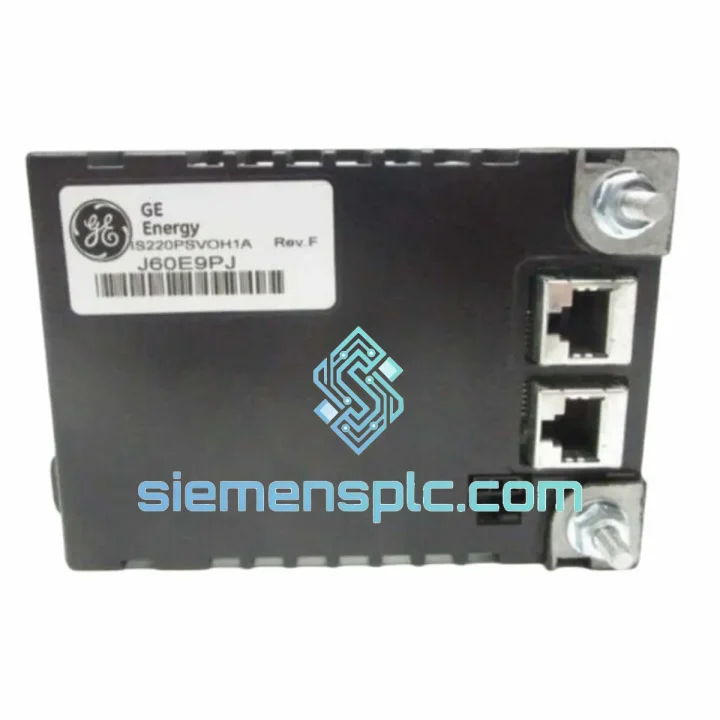

GE IS220PSVOH1A Servo Control Module – Mark VIe

GE IS220PSVOH1A – Servo Position Control Module for Mark VIe Turbine Automation

The IS220PSVOH1A is a servo valve position control module engineered for GE’s Mark VIe distributed turbine control architecture. Within a gas or steam turbine control loop, this module occupies the final-element interface layer: it receives position demand signals from the VCMI (VME Controller Module Interface) over the IONet Ethernet backbone, converts those demands into precision analog drive currents for electrohydraulic servo valves, and simultaneously reads LVDT (Linear Variable Differential Transformer) feedback to close the position loop in hardware. The result is a deterministic, sub-millisecond servo response that is independent of host CPU scan cycles — a design requirement for fuel valve and inlet guide vane control where positioning error directly affects turbine speed regulation and emissions compliance.

Unlike generic analog output modules, the IS220PSVOH1A integrates the complete servo axis — drive amplifier, LVDT signal conditioning, and loop closure — onto a single PCB assembly. This architecture eliminates the inter-module latency that would otherwise accumulate if drive and feedback functions were distributed across separate I/O cards. The module communicates its health status, position error, and drive current telemetry back to the Mark VIe controller via the same IONet path, providing full diagnostic transparency without additional field wiring.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IS220PSVOH1A’s internal architecture reflects the engineering constraints of turbine servo control, where a positioning error of even 0.5% on a fuel valve can translate to measurable speed deviation or combustion instability.

LVDT Signal Conditioning Chain: The module generates its own 3 kHz sinusoidal excitation carrier for the LVDT primary winding. The secondary differential output is synchronously demodulated using a phase-sensitive detector locked to the internal carrier reference. This approach rejects common-mode noise and power-frequency interference (50/60 Hz and harmonics) without requiring external filtering. The demodulated DC position signal is then digitized by a 16-bit successive-approximation ADC, yielding a position resolution below 0.05% of full stroke — sufficient for fuel valve positioning in DLN (Dry Low NOx) combustion systems where valve linearity directly affects emissions.

Servo Drive Amplifier: The output stage is a precision voltage-controlled current source delivering ±100 mA into the servo valve torque motor coil. Current feedback within the drive stage maintains output accuracy independent of coil resistance variation caused by temperature drift. The amplifier includes electronic current limiting and short-circuit protection, preventing coil damage during wiring faults without requiring external fuses on the servo loop.

Hardware Loop Closure: The position demand from the Mark VIe controller arrives over IONet at the I/O pack’s local processor. The IS220PSVOH1A’s on-board DSP closes the position loop locally at ≤1 ms update intervals. This means the servo axis continues to regulate position even during IONet communication gaps — a critical behavior during controller switchover in TMR (Triple Modular Redundant) configurations, where the new active controller must assume control without a position transient.

EMC Design: The PCB layout isolates the analog LVDT and drive circuits from the digital IONet interface using a split ground plane with a single-point star connection. Differential signal routing on the LVDT lines and twisted-pair field wiring recommendations in GE’s installation guidelines reduce susceptibility to radiated interference from adjacent VFDs and high-current bus bars common in turbine auxiliary systems. The module meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT), and IEC 61000-4-6 (conducted RF) immunity levels as part of the Mark VIe system certification.

Redundancy Arbitration: In TMR servo configurations, three IS220PSVOH1A modules drive the same servo valve through a summing network. Each module independently measures LVDT position and computes its drive current. The VCMI performs median-select voting on the three position measurements before issuing demand updates, and any module whose drive current deviates beyond a configurable threshold is flagged for maintenance without interrupting turbine operation.

System Integration Benefits

• Deterministic servo response: Hardware-closed position loop at ≤1 ms eliminates host CPU scan jitter from the servo bandwidth calculation, enabling tighter fuel valve control tuning without stability margin penalties.
• Reduced field wiring complexity: Integrated LVDT excitation and drive amplifier eliminate the external servo amplifier cabinet that older Mark V systems required, reducing panel space and potential failure points.
• Diagnostic transparency: Drive current, position error, LVDT signal amplitude, and module health are all reported over IONet to the Mark VIe HMI, enabling condition-based maintenance scheduling without additional instrumentation.
• Seamless TMR integration: The module’s architecture is designed for three-way redundancy from the ground up; no external voting hardware or relay logic is required to achieve TMR servo control.
• ToolboxST configurability: Servo gain, current limits, LVDT calibration coefficients, and fault thresholds are all software-configurable via GE ToolboxST, eliminating potentiometer adjustments and enabling configuration version control.
• Hot-swap capability: The IS220 I/O pack design supports module replacement under power in non-TMR configurations, reducing planned maintenance outage duration.
• Broad turbine applicability: Compatible with gas turbine fuel valve, steam turbine governor valve, inlet guide vane, and compressor bleed valve servo loops within the Mark VIe ecosystem.
• Long-term parts availability: As a current-generation Mark VIe component, the IS220PSVOH1A remains in active production and is supported by GE’s global spare parts network, with independent distributors providing supplemental stock for MRO demand.

Quality Assurance & Global Logistics

Every IS220PSVOH1A unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection: visual examination of the PCB assembly for component integrity and absence of counterfeit indicators, label and date-code verification against known GE manufacturing records, and where test fixtures are available, a powered functional check of the LVDT excitation output and drive amplifier continuity. Units are packed in anti-static bags within foam-lined cartons rated for air freight handling.

Shipments depart from Xiamen Gaoqi International Airport (XMN) via DHL Express, FedEx International Priority, or UPS Worldwide Express, with typical transit times of 3–5 business days to Europe, 4–6 days to the Americas, and 2–3 days to Southeast Asia. All export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with applicable customs regulations. HS Code 8537.10 applies to this module category for most jurisdictions. A 12-month warranty covers manufacturing defects and confirmed functional failures; warranty claims are processed with replacement dispatch within 5 business days of fault confirmation.
