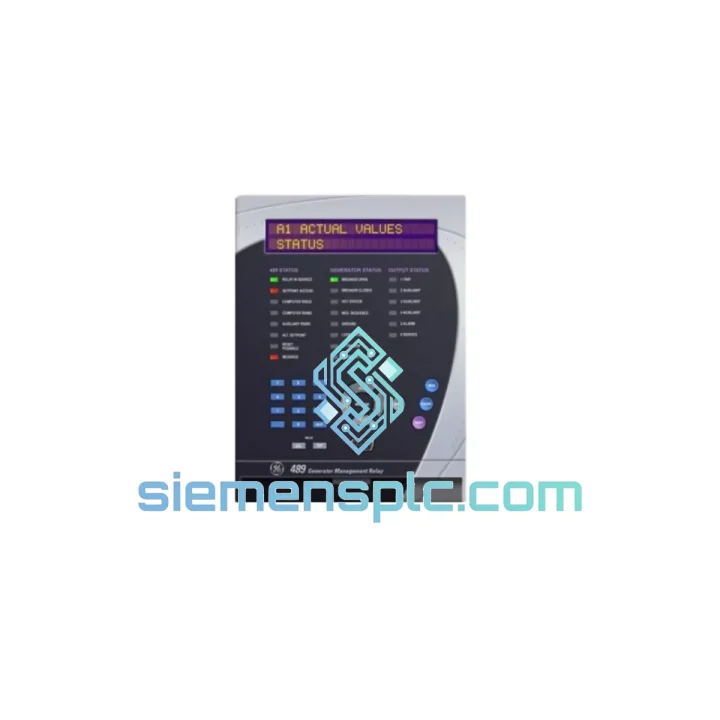

GE Multilin 489-P1-HI-A20-E-H Generator Management Relay – 489 Series

GE Multilin 489-P1-HI-A20-E-H: Multi-Function Generator Management Relay for High-Demand Industrial Power Systems

The GE Multilin 489-P1-HI-A20-E-H is a purpose-built generator management relay that consolidates protection, metering, control, and communications into a single 4U panel-mount chassis. Within a generator protection loop, this relay occupies the role of primary protective device and real-time data concentrator simultaneously — eliminating the discrete relay arrays that were standard practice in legacy switchgear designs. Its architecture is built around a dual-processor core: one processor handles time-critical protection algorithms at a 1 ms sampling resolution, while a second processor manages communications, event logging, and analog output scaling without introducing latency into the protection execution path.

The P1 designation confirms standard CT input rating (5 A secondary), the HI suffix specifies a wide-range auxiliary power supply accepting 100–240 V AC or 88–300 V DC, the A20 option equips the relay with 20 analog output channels for direct SCADA/DCS integration, the E suffix adds a 10/100 Mbps Ethernet port supporting IEC 61850, Modbus TCP, and DNP3 over TCP/IP, and the H suffix denotes conformal-coated PCBs for operation in corrosive or high-humidity environments. This combination makes the 489-P1-HI-A20-E-H one of the most fully specified variants in the 489 product family.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 489-P1-HI-A20-E-H is built on a modular backplane architecture where the main CPU board, I/O expansion boards, and the communications processor board communicate over an internal high-speed parallel bus. This physical separation of protection logic from I/O and communications is not cosmetic — it ensures that a communications bus fault or an analog output channel fault cannot propagate into the protection execution thread. The protection processor operates on a deterministic real-time operating system (RTOS) with a fixed 1 ms task cycle, independent of Ethernet traffic load.

Optical Isolation on Digital Inputs: All 16 digital inputs use opto-coupler isolation with a minimum 2,500 V RMS dielectric withstand between field wiring and internal logic. The input threshold is factory-set for 24–250 V DC wet contact, with a debounce filter of 4 ms to suppress contact bounce without masking genuine state transitions. This design prevents ground-loop currents from corrupting binary input states — a common failure mode in substations with poor earthing.

EMC Design: The relay meets IEC 61000-4-5 (surge immunity, 4 kV line-to-earth) and IEC 61000-4-4 (electrical fast transient, 4 kV) without external surge suppressors. The PCB layout uses a multi-layer ground plane strategy with separate analog and digital ground domains joined at a single star point, minimizing common-impedance coupling. The conformal coating (H suffix) adds a secondary barrier against conductive contamination that could otherwise create leakage paths across high-impedance analog input traces.

Analog Output Architecture (A20): The 20 analog output channels are driven by a dedicated 12-bit DAC array with individual output amplifiers per channel. Each channel is independently scalable in firmware, allowing simultaneous output of current (kA), voltage (kV), active power (MW), reactive power (MVAR), frequency (Hz), and RTD temperatures — all without multiplexing delays. The 4–20 mA output range is compatible with all standard DCS analog input cards, and the 0–1 mA option supports legacy galvanometer-type panel instruments.

Differential Protection (87G) Implementation: The generator differential element uses a percentage-restrained characteristic with a dual-slope bias curve. The minimum pickup is set at 10% of rated current (adjustable), and the restraint slope increases from 25% to 60% above a configurable breakpoint to maintain security during CT saturation on external faults. An adaptive CT saturation detector monitors second-harmonic content in the differential current and temporarily raises the restraint threshold during the first 30 ms of an external fault — preventing false trips while maintaining sensitivity for internal faults.

System Integration Benefits

• Deterministic Protection Execution: The 1 ms RTOS task cycle guarantees that overcurrent, differential, and frequency protection elements execute within a fixed time window regardless of communications load, ensuring trip times are predictable and compliant with IEEE C37.102 coordination requirements.
• IEC 61850 GOOSE Messaging: The Ethernet port supports GOOSE (Generic Object-Oriented Substation Event) publish/subscribe messaging with a typical transmission time of <4 ms, enabling peer-to-peer interlocking between relays without hardwired auxiliary contacts — reducing panel wiring by 30–50% in modern digital substations.
• 20-Channel Analog Output Eliminates Transducers: Direct 4–20 mA outputs for all metered quantities remove the need for separate power transducers, reducing BOM cost, panel space, and potential failure points in the measurement chain.
• RTD-Based Thermal Model: The 12 RTD inputs feed a stator thermal model that tracks winding hot-spot temperature in real time, providing earlier warning of thermal stress than a current-based thermal image alone — particularly valuable during overload conditions or blocked-ventilation scenarios.
• Oscillography for Root-Cause Analysis: 15 fault records at 64 samples/cycle capture pre-fault and post-fault waveforms with 1 ms timestamp resolution. This data is retrievable via Ethernet using EnerVista 489 Setup software, enabling post-event analysis without relay downtime.
• Wide-Range Auxiliary Supply (HI): The 100–240 V AC / 88–300 V DC power supply eliminates the need for a dedicated DC/DC converter in mixed-voltage substations, reducing auxiliary panel complexity and improving overall system reliability.
• Negative Sequence Protection (46): The negative sequence overcurrent element detects unbalanced loading conditions — caused by single-phasing, unbalanced loads, or open-delta transformer configurations — before they produce rotor heating damage, which is not detectable by positive-sequence overcurrent elements alone.
• Loss-of-Excitation Detection (40): The mho-characteristic loss-of-excitation element monitors the generator’s impedance trajectory in the R-X plane. When the impedance enters the mho circle, the relay initiates an alarm and, after a configurable time delay, a trip — preventing the generator from absorbing reactive power from the system and entering an unstable operating region.

Quality Assurance & Global Logistics

Every GE Multilin 489-P1-HI-A20-E-H unit supplied by siemensplc.com is sourced through verified industrial distribution channels and undergoes a structured incoming inspection protocol before dispatch:

• Physical label verification against GE factory serial number format and date code
• Firmware version identification and cross-reference with GE Grid Solutions release notes
• Functional power-on test: auxiliary supply energization, LED status check, and communications port response verification
• Anti-counterfeit check: hologram label inspection and serial number cross-reference
• Original GE anti-static and moisture-barrier packaging confirmed intact before shipment

All units are dispatched from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard in-stock orders ship within 1–3 business days. Emergency replacement orders can be dispatched same-day upon order confirmation before 14:00 CST. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment to facilitate smooth customs clearance. A 12-month warranty covering manufacturing defects in materials and workmanship is included with every unit.
