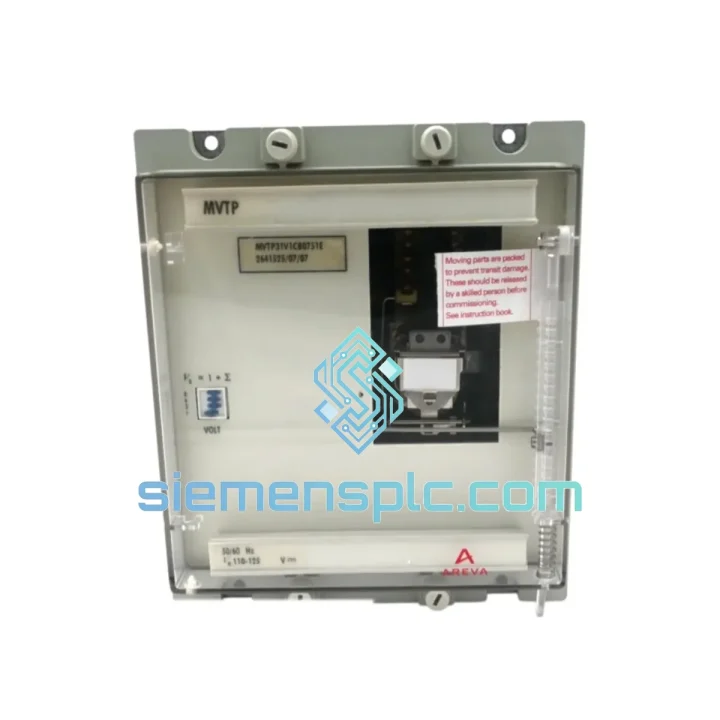

GE MVTP31V1CB0751E Protection Relay

GE MVTP31V1CB0751E – Stop the Clock on Your Downtime. Ship Today.

Every minute a pilot-wire differential protection scheme sits degraded or unmonitored, your substation is exposed. A failed buswire supervision relay doesn’t just trigger an alarm — it silently disables the protection logic that stands between normal operation and a catastrophic fault. The GE MVTP31V1CB0751E is the exact module you need to restore scheme integrity fast. We stock it. We ship it. We’ve done this before — and we know you can’t wait.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on protection panels, here’s what actually matters when you’re swapping an MVTP31V1CB0751E under pressure:

1. Verify the firmware variant before you pull the old unit. The suffix V1CB0751E encodes both the firmware version and hardware I/O configuration. Fitting a unit with a mismatched suffix into an existing scheme can cause the supervision relay to assert incorrect alarm thresholds or fail to recognize the buswire current loop entirely. Cross-check the part number on the existing relay’s nameplate against your protection scheme documentation before ordering.

2. Buswire current loop calibration. After physical installation, the MVTP31 series requires the supervisory current setpoint to be confirmed against the actual pilot-wire loop resistance. If the loop resistance has changed due to cable aging or a partial fault, the relay’s pickup threshold may need adjustment. Do not assume the previous relay’s settings are still valid — measure the loop resistance first.

3. Check the auxiliary supply voltage. The MVTP31V1CB0751E is available in multiple auxiliary voltage variants. Confirm your panel’s DC supply (typically 48 V, 110 V, or 125 V DC) matches the unit’s rated auxiliary input before energizing. Applying incorrect auxiliary voltage is the most common cause of immediate relay failure on replacement.

4. Common fault codes and what they mean in the field:

• WIRE OPEN / Loop Break alarm: Buswire continuity lost. Check pilot cable terminations at both ends before condemning the relay — 70% of these calls are a loose terminal, not a failed relay.
• WIRE SHORT alarm: Abnormally low loop impedance. Inspect pilot cable insulation for moisture ingress or physical damage, particularly at cable entry glands.
• RELAY FAIL / Self-test fault: Internal hardware fault confirmed. This is the scenario where you need a replacement unit on-site within hours, not days. Call us now.
• No alarm, but differential relay blocking: Check the MVTP31’s output contact wiring to the main differential relay’s blocking input. A failed output relay contact inside the MVTP31 can cause this — the supervision relay appears healthy but its output is open-circuit.

5. Commissioning after replacement. Once the new unit is wired and energized, perform a buswire loop injection test to confirm the relay picks up correctly at the specified current threshold. Do not return the protection scheme to service without this step — a supervision relay that doesn’t alarm on a genuine loop fault is worse than no supervision at all.

Reliability in Harsh Conditions

Substations are not clean environments. The MVTP31V1CB0751E is built to operate where most electronics would fail within months. The relay’s internal construction uses conformal-coated PCBs that resist condensation and airborne contaminants — a non-negotiable requirement in coastal substations and tropical climates where humidity regularly exceeds 95% RH. The housing is designed to IEC 60255 mechanical robustness standards, which means it survives the vibration loads generated by nearby switchgear operations, transformer magnetizing inrush, and the general mechanical stress of a live panel environment.

Thermal performance is equally uncompromising. The relay is rated for continuous operation from -20°C to +60°C ambient — covering everything from unheated outdoor kiosks in northern climates to non-air-conditioned relay rooms in equatorial regions. GE Multilin’s design philosophy for the MVTP31 series prioritizes long mean-time-between-failure (MTBF) over cost reduction, which is why these units routinely outlast the protection schemes they were originally installed to supervise. When you do need a replacement, it’s usually because the scheme has been upgraded, not because the relay has worn out.

Units supplied by siemensplc.com are inspected for physical integrity, label authenticity, and part-number conformance before dispatch. We do not ship units with damaged housings, missing labels, or unverifiable provenance.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-connected cities in Asia, with direct access to DHL, FedEx, and UPS international express networks. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority, depending on destination.
• Transit to Europe (DE, FR, NL, UK): 3–5 business days door-to-door.
• Transit to North America (US, CA): 3–4 business days door-to-door.
• Transit to Middle East (UAE, SA, KW): 3–5 business days door-to-door.
• Transit to Southeast Asia (SG, MY, TH, ID): 2–3 business days door-to-door.
• Transit to Australia / New Zealand: 4–6 business days door-to-door.

All international shipments include a commercial invoice, packing list, and certificate of origin. For orders requiring customs pre-clearance documentation or specific HS code declarations, contact us before placing the order — we handle this routinely and it does not delay dispatch. Export-controlled items are assessed individually; the MVTP31V1CB0751E does not fall under ITAR or EAR restrictions for standard commercial end-use.

Tracking numbers are issued at the time of dispatch and sent directly to your registered email. For shipments to destinations with known customs delays (Brazil, India, Russia), we recommend selecting DHL Express with pre-paid duties (DDP) to avoid clearance holds. Ask us about DDP pricing when you inquire.
