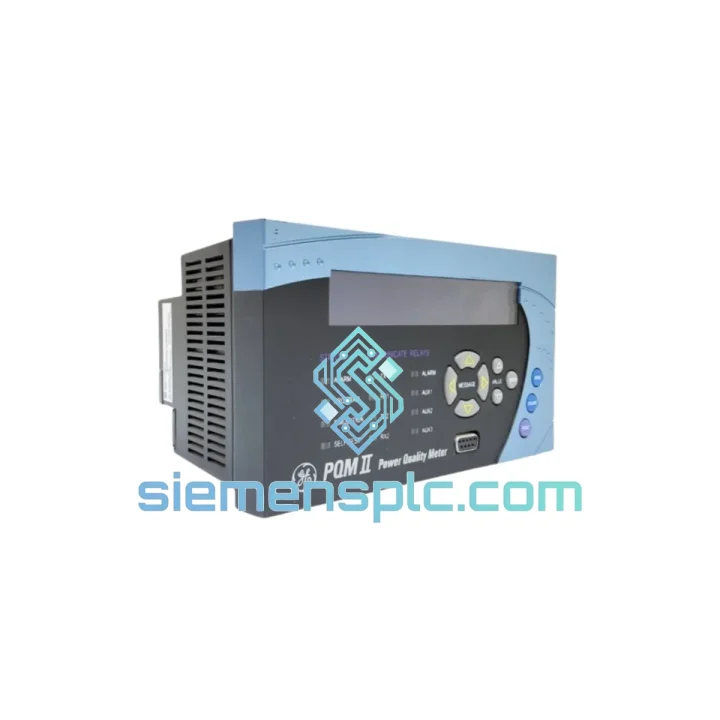

GE PQMII-A Power Quality Meter – PQMII Series

GE PQMII-A: Panel-Mount Power Quality Analyzer for Industrial and Utility-Grade Electrical Networks

The GE PQMII-A is a dedicated power quality measurement instrument engineered for continuous, high-accuracy monitoring of three-phase electrical systems in industrial plants, utility substations, commercial facilities, and critical infrastructure. Operating within the PQMII product family from GE Grid Solutions, this unit delivers IEC 61000-4-30 Class A measurement performance — the highest accuracy tier defined by the standard — making it applicable to both operational diagnostics and regulatory compliance reporting. Its 96 × 96 mm panel-mount form factor integrates directly into standard switchboard cutouts, and its universal auxiliary power supply (85–265 V AC / 88–300 V DC) eliminates the need for dedicated power conditioning in mixed-voltage environments.

Unlike general-purpose energy meters, the PQMII-A is purpose-built around power quality characterization. It captures voltage sags, swells, interruptions, transients, harmonic distortion up to the 63rd order, flicker (Pst/Plt per IEC 61000-4-15), and three-phase unbalance — all simultaneously and with synchronized time-stamping. On-board waveform capture stores disturbance records for post-event forensic analysis, removing the dependency on external data loggers or portable analyzers during fault investigations.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PQMII-A is built on a dedicated signal-acquisition architecture that separates the analog front-end from the digital processing core. Voltage and current inputs are routed through precision burden resistors and isolation transformers before reaching the analog-to-digital conversion stage. This galvanic isolation between the measured circuit and the instrument’s internal logic bus is fundamental to the unit’s EMC performance: it suppresses common-mode noise from high-frequency switching transients generated by variable-frequency drives (VFDs), thyristor converters, and arc furnaces — all common sources of interference in industrial electrical environments.

Sampling is performed at a fixed rate synchronized to the fundamental frequency using a phase-locked loop (PLL) algorithm. This synchronous sampling approach ensures that harmonic calculations remain coherent across measurement cycles, eliminating spectral leakage errors that would otherwise corrupt THD and individual harmonic magnitude readings. The 63rd-order harmonic capture requires a minimum sampling rate of approximately 6.3 kHz at 50 Hz fundamental — the PQMII-A’s ADC architecture is sized to meet this requirement with margin.

Flicker measurement follows the IEC 61000-4-15 flickermeter model, implemented in firmware as a cascaded filter chain: a squaring demodulator, a weighting filter representing the human eye-brain response to luminance variation, and a statistical accumulator that computes short-term (Pst, 10-minute) and long-term (Plt, 2-hour) perceptibility indices. This is not a simplified approximation — it is a full Class A flickermeter implementation, which distinguishes the PQMII-A from lower-tier meters that report only THD and RMS values.

The RS-485 communication interface uses a half-duplex differential signaling scheme with ±15 kV ESD protection on the bus transceiver. This protection level is specified for industrial environments where cable runs may pass through cable trays shared with power conductors, where induced transients can exceed the tolerance of standard RS-485 transceivers. The optional Ethernet module adds a transformer-isolated RJ-45 port, maintaining the same isolation philosophy at the network layer.

System Integration Benefits

• Deterministic Modbus RTU polling: Fixed-length register maps with documented addresses allow SCADA and EMS systems to poll the PQMII-A at predictable cycle times without protocol negotiation overhead, supporting scan rates as fast as 1 second for real-time dashboards.
• Vendor-agnostic protocol support: Modbus RTU and optional Modbus TCP/DNP3 are supported natively by Siemens WinCC, ABB System 800xA, Schneider EcoStruxure, Ignition, and all major DCS platforms — no custom driver development required.
• Waveform-based root-cause isolation: On-board disturbance recording captures pre- and post-fault waveforms with millisecond time resolution, enabling maintenance engineers to distinguish between upstream grid events and locally generated disturbances without deploying portable analyzers.
• Harmonic source attribution: Individual harmonic magnitude and phase angle data (to the 63rd order) allows engineers to apply harmonic fingerprinting techniques to identify specific non-linear load types — a capability that aggregate THD readings cannot provide.
• Alarm relay outputs for automated response: Configurable digital output relays can trigger external alarms, interlock circuits, or PLC inputs when measured parameters exceed defined thresholds, enabling closed-loop power quality management without SCADA intervention.
• Compact retrofit footprint: The 96 × 96 mm panel-mount form factor matches the cutout dimensions of legacy analog meters and older digital meters, allowing direct replacement in existing switchboards without panel modification.
• Wide operating temperature range: The −20°C to +60°C operating envelope covers outdoor switchgear enclosures in temperate climates and indoor motor control centers in high-ambient industrial facilities without supplemental cooling.
• GE EnerVista software compatibility: The optional PC-based EnerVista configuration and data retrieval tool provides a graphical interface for parameter setup, waveform download, and report generation — reducing commissioning time compared to front-panel keypad configuration alone.

Quality Assurance & Global Logistics

Every PQMII-A unit supplied through siemensplc.com is sourced from verified distribution channels with full part-number and revision traceability. Prior to dispatch from our Xiamen, China facility, each unit undergoes visual inspection, label and serial number verification, and packaging integrity check. Original manufacturer packaging and available documentation — including datasheets and instruction manuals — are included with each shipment.

Export documentation (commercial invoice, packing list, certificate of origin) is prepared as standard for all international orders. Shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency. In-stock units typically ship within 2–3 business days of order confirmation. For time-critical requirements, same-day dispatch is available upon request. Our logistics team has direct experience with customs clearance procedures for industrial electrical equipment across North America, Europe, Southeast Asia, and the Middle East.

All units are covered by a 12-month warranty against defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched before return of the defective item for customers with established accounts, minimizing production downtime.
