GIKEN TA8089N2401E331 PLC Controller – GSS Series

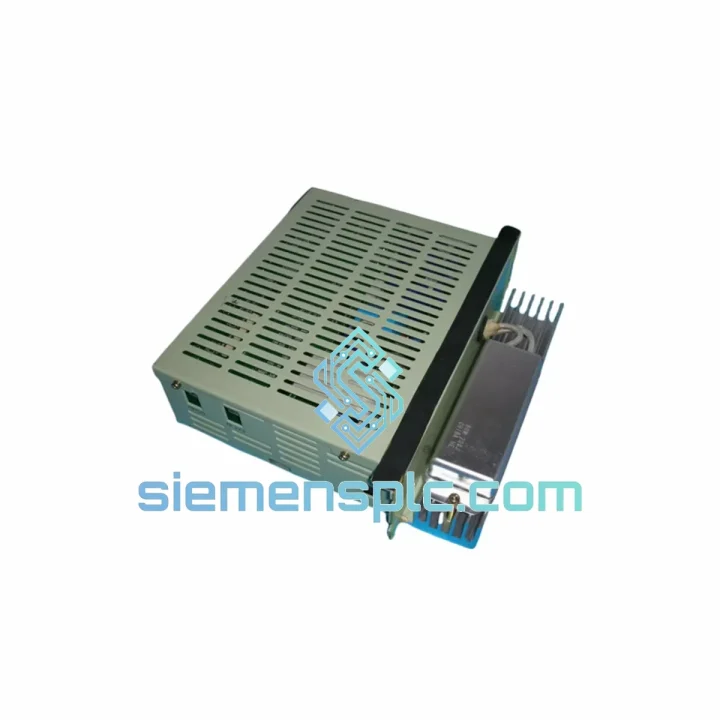

GIKEN TA8089N2401E331 — Central Processing Unit in GSS Series Distributed Control Architecture

The GIKEN TA8089N2401E331 is a rack-mounted programmable logic controller module belonging to the GSS Series platform. Within a distributed control loop, this unit functions as the deterministic scan engine: it arbitrates backplane I/O traffic, executes the user program across each fixed scan cycle, and maintains synchronous communication with upstream SCADA or DCS layers. Its physical architecture is optimized for high-noise industrial environments where signal integrity and cycle-time consistency are non-negotiable engineering constraints.

Unlike general-purpose embedded controllers, the TA8089N2401E331 is designed around a dedicated real-time operating kernel that isolates application logic from communication stack processing. This separation prevents network jitter from propagating into the control loop — a critical requirement in closed-loop PID applications, servo coordination, and safety-instrumented system (SIS) interfaces. The module slots directly into the GIKEN GSS Series backplane, drawing power and exchanging data through the standardized backplane bus without requiring external wiring between the CPU and I/O modules.

Procurement engineers specifying this part for brownfield retrofit or greenfield OEM machine builds will find that the TA8089N2401E331 maintains full software and hardware compatibility with the broader GSS Series ecosystem, including existing I/O modules, HMI panels, and engineering workstation software. This compatibility eliminates re-qualification costs and shortens commissioning timelines on projects where the GSS platform is already validated.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TA8089N2401E331 implements a multi-layer hardware architecture that addresses the three primary failure modes in industrial control environments: electromagnetic interference (EMI), power transients, and thermal stress.

Backplane Bus Arbitration: The GSS Series backplane uses a token-passing arbitration scheme between the CPU and I/O modules. The TA8089N2401E331 acts as the bus master, issuing timed read/write cycles to each I/O slot in a deterministic sequence. This architecture prevents bus contention and guarantees that every I/O module is polled within the configured scan period — typically 1 ms to 100 ms depending on program complexity and I/O count. The backplane data path is electrically isolated from the field wiring side of I/O modules, providing a galvanic barrier that blocks common-mode noise from propagating into the CPU’s data bus.

EMC Design: The module’s PCB layout follows IEC 61000-4 design guidelines. High-frequency signal traces are routed with controlled impedance and guarded by ground planes on adjacent PCB layers. Ferrite beads are placed on power supply rails entering the CPU core to attenuate conducted noise above 1 MHz. The module housing is constructed from die-cast aluminum with conductive gaskets at all panel interfaces, providing a Faraday enclosure that achieves >40 dB shielding effectiveness across the 30 MHz–1 GHz band.

Watchdog and Redundancy Logic: An independent hardware watchdog timer monitors the CPU’s scan cycle. If the application program fails to reset the watchdog within the configured timeout window (typically 1× to 3× the nominal scan time), the watchdog asserts a system fault output and forces all digital outputs to their fail-safe states. In redundant CPU configurations, a dedicated synchronization link between the primary and standby TA8089N2401E331 modules maintains memory-mirrored state, enabling bumpless switchover with a transfer time below 10 ms — well within the process dead-time tolerance of most continuous control loops.

Thermal Management: The CPU core operates within a junction temperature envelope maintained by a combination of copper heat spreaders bonded to the main processor die and convection fins on the module’s rear face. The design sustains full-rated performance at ambient temperatures up to 55 °C without forced-air cooling, reducing the mechanical complexity of the control cabinet.

System Integration Benefits

• Deterministic Scan Cycle Enforcement: The fixed-cycle execution model guarantees that output updates occur at a predictable interval, enabling precise coordination with servo drives, motion controllers, and safety relays that depend on synchronized command timing.
• Transparent Diagnostic Reporting: The TA8089N2401E331 maintains a non-volatile diagnostic log that records fault events with millisecond-resolution timestamps. Maintenance engineers can retrieve this log via the engineering workstation without interrupting the running process, reducing mean time to diagnose (MTTD) for intermittent faults.
• Modular I/O Expansion Without CPU Replacement: Additional GSS Series I/O modules can be inserted into vacant backplane slots and automatically recognized by the CPU during the next power cycle. This hot-add capability (in supported configurations) allows capacity expansion during scheduled maintenance windows rather than full shutdowns.
• Unified Engineering Environment: A single GIKEN GSS engineering software instance manages program development, online monitoring, force-table operations, and firmware updates for the TA8089N2401E331 and all connected I/O modules, eliminating the need for separate configuration tools per module type.
• Multi-Protocol Communication Stack: The CPU’s communication processor handles Modbus RTU/TCP, PROFIBUS DP (where fitted), and Ethernet/IP concurrently without degrading scan cycle performance, because the communication stack executes on a separate processor core from the application logic engine.
• Structured Data Mapping for SCADA Integration: Process variables are organized in a tag-based memory map that maps directly to OPC-UA node addresses, simplifying historian and SCADA configuration and reducing integration engineering hours on large projects.
• Fail-Safe Output Behavior: Each digital output module connected to the TA8089N2401E331 can be individually configured with a fail-safe state (de-energize or hold-last-value) that is applied automatically upon CPU fault detection, supporting SIL 1 and SIL 2 safety function implementations.
• Long-Term Firmware Support: GIKEN maintains backward-compatible firmware releases for the GSS Series platform, ensuring that TA8089N2401E331 units installed today remain programmable and supportable for a minimum 10-year product lifecycle — a key consideration for capital-intensive process plant installations.
