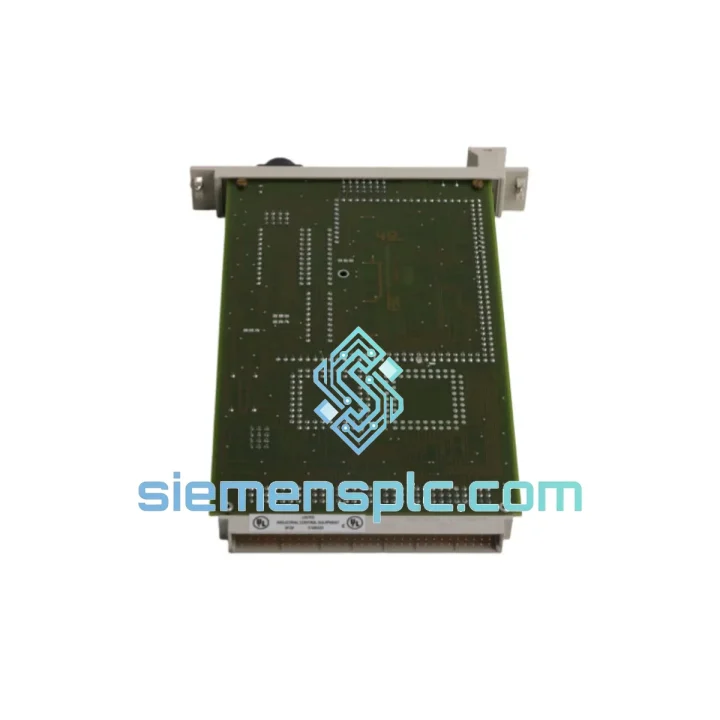

Honeywell 10002/1/2 Run Stop Keyed Module – Safety Manager

Honeywell 10002/1/2 Run Stop Keyed Module – Operator State Control in Safety-Instrumented Architectures

The Honeywell 10002/1/2 is a key-operated run/stop selector module engineered for deployment within Honeywell Safety Manager and compatible Safety Instrumented System (SIS) platforms. Its function is architecturally straightforward but operationally non-negotiable: it enforces physical, hardware-level authority over the transition between the RUN and STOP states of a safety controller. Unlike software-based mode switching, the keyed mechanism introduces a deliberate physical barrier — the key must be present and turned by an authorized operator. This design principle aligns with IEC 61511 Clause 11 requirements for operator interface controls in safety-critical process environments, where unauthorized or inadvertent state changes carry measurable risk to personnel and plant integrity.

In a typical Safety Manager rack assembly, the 10002/1/2 occupies a dedicated slot on the operator panel or front-of-rack interface. Its backplane connection routes the run/stop signal directly to the system controller’s mode arbitration logic, bypassing any software override path. This hardware-enforced signal path is a deliberate architectural choice: it ensures that even in the event of a controller firmware fault or HMI communication loss, the physical run/stop state remains deterministic and operator-controlled.

Procurement of this module in the current market requires careful sourcing discipline. The 10002/1/2 is a legacy-class component — Honeywell’s active production window for this series has closed, and the secondary market carries a documented risk of remarked, refurbished-as-new, or outright counterfeit units. Our supply chain for this part number is traceable to verified distribution channels, and every unit we ship is inspected against Honeywell’s published mechanical and electrical specifications before dispatch.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 10002/1/2’s hardware design reflects a deliberate philosophy: operator interface modules in SIS architectures must not introduce failure modes that can propagate into the safety function. Several design characteristics support this objective.

Key-Interlock Mechanism and Unauthorized-State Prevention: The rotary key switch is mechanically constrained so that the key can only be withdrawn in the STOP position. This is not a software-enforced rule — it is a physical cam-and-detent mechanism. The consequence is that an operator cannot walk away from a panel leaving the system in an ambiguous or transitional state. The key’s physical presence in the RUN position is a visible, auditable indicator of authorized operation.

Hardwired Signal Path and Mode Arbitration: The run/stop signal generated by the 10002/1/2 is routed via the backplane as a discrete hardware signal, not a fieldbus message or software register write. In the Safety Manager controller’s mode arbitration logic, this hardware signal takes precedence over any conflicting software-originated mode request. This architecture ensures that a compromised HMI, a network fault, or a controller firmware exception cannot override a physical STOP command issued at the panel.

EMC Design Considerations: Operator interface modules in industrial SIS environments are exposed to conducted and radiated electromagnetic interference from adjacent power switching equipment, variable-frequency drives, and high-current bus bars. The 10002/1/2’s signal conditioning circuitry incorporates RC filtering on the switch output line to suppress contact bounce and high-frequency transients. The module housing and backplane connector are designed to maintain signal integrity within the EMC envelope defined by Honeywell’s system-level CE certification, which covers radiated emissions per EN 55011 Class A and immunity per EN 61000-4 series.

Contact Integrity and Bounce Suppression: The key switch contacts are rated for the low-energy signal levels present on the backplane interface. Gold-plated contact surfaces are standard in this class of Honeywell operator module to minimize contact resistance variation over the operational life of the switch — a critical parameter when the switch output feeds directly into a safety controller’s discrete input logic without intermediate signal conditioning.

System Integration Benefits

• Deterministic Mode Transitions: Hardware-enforced run/stop authority eliminates race conditions between operator commands and software-originated mode requests, ensuring the controller’s state machine receives an unambiguous, debounced input on every transition.
• IEC 61511 Operator Interface Compliance: The keyed-access design directly satisfies IEC 61511 Clause 11.9 requirements for physical access control on safety system operator interfaces, supporting SIL verification documentation without additional engineering justification.
• Zero-Configuration Replacement: The 10002/1/2 is pin-compatible and firmware-transparent within the 10002-series chassis. Replacement requires no controller reconfiguration, no I/O mapping changes, and no safety function revalidation beyond standard post-maintenance functional testing.
• Diagnostic Transparency: The module’s discrete signal output is directly readable by the Safety Manager controller’s diagnostic logic. A missing or open-circuit signal is distinguishable from a valid STOP command, enabling the controller to generate a differentiated fault alarm rather than defaulting to a generic input failure.
• Reduced Human Factors Risk: Physical key removal in STOP state creates a tangible, portable authorization token. This supports lock-out/tag-out (LOTO) procedures and reduces the probability of inadvertent restart — a human factors benefit that complements the electrical safety function.
• Long-Term Spare Parts Availability: For plants operating Safety Manager systems beyond Honeywell’s active support window, maintaining a verified stock of 10002/1/2 modules is a maintenance continuity requirement. Our strategic inventory position supports multi-year spare parts planning for brownfield SIS installations.
• Supply Chain Traceability: Every unit we supply is accompanied by a Certificate of Conformance (COC) and, on request, a Certificate of Origin (COO) declaration. This documentation supports plant maintenance records, insurance audits, and regulatory inspection requirements in regulated industries.
• Consistent Electrical Performance Across Operating Life: Gold-contact switch technology and the module’s low-power signal interface maintain consistent contact resistance across the rated operational life, reducing the probability of intermittent faults that are disproportionately difficult to diagnose in safety system maintenance contexts.

Quality Assurance & Global Logistics

Every Honeywell 10002/1/2 unit we supply passes a structured four-stage verification process before dispatch. Stage one is a supply-chain origin audit: we cross-reference each unit’s part markings, date codes, and batch identifiers against Honeywell’s published part numbering conventions and, where available, against distributor batch records. Stage two is a physical and visual inspection conducted by trained technicians: housing integrity, label adhesion and print quality, connector pin condition, PCB marking consistency, and key mechanism operation are all evaluated against reference units and Honeywell’s published mechanical drawings.

Stage three is a functional bench test: the module is powered via a compatible backplane interface and cycled through multiple RUN/STOP transitions. Contact closure timing, signal level, and backplane communication response are measured and logged. A test report is available for qualified buyers on request. Stage four is packaging and documentation: units are sealed in anti-static ESD bags, placed in rigid foam-lined cartons, and shipped with a packing list and COC. All documentation is retained in our records for post-sale traceability.

Logistics operations are managed from Xiamen, China. In-stock units ship within 1–3 business days of order confirmation via DHL Express, FedEx International Priority, or SF Express for domestic China destinations. Export documentation — commercial invoice, packing list, COO declaration, and HS code classification support — is prepared for every international shipment. Primary service regions include Mainland China, Southeast Asia, the Middle East, Europe, and North America. Packaging meets ISTA 2A transit testing standards for electronic components.
