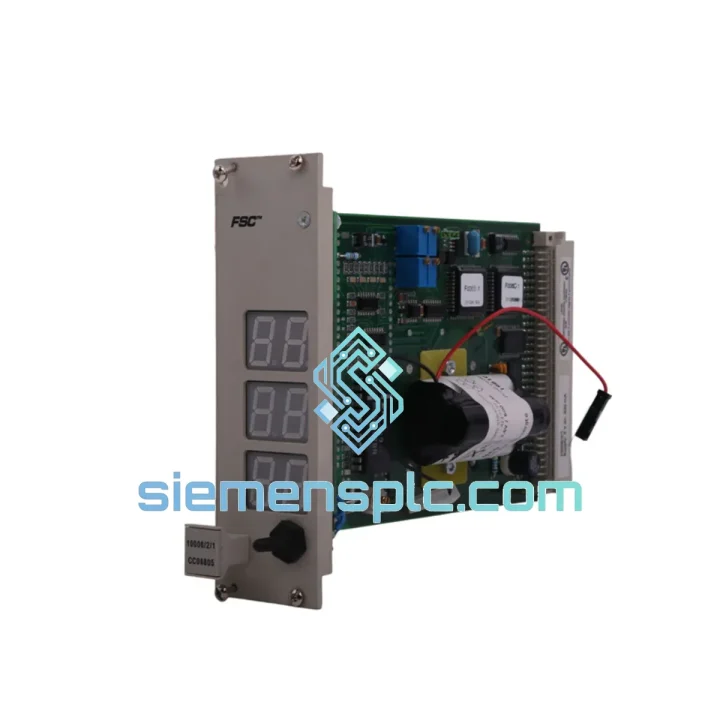

Honeywell 10006/2/1 DCS Module

Honeywell 10006/2/1 – Stop the Clock on Your Downtime. Ship Today.

Your TDC 3000 node just dropped its data backup module. The historian is drifting. Operators are staring at a blank configuration screen. Every minute the line stays down, you’re burning through production budget. The 10006/2/1 is the single card standing between a 20-minute swap and a 6-hour cold-restart nightmare — and we have it on the shelf right now, tested and ready to go.

We’ve seen this failure mode dozens of times across refineries, ethylene crackers, and power generation facilities. The DBM fails silently — often the first sign is a timestamp anomaly in the historian or a “DBM FAULT” alarm on the LCN console. By the time the alarm escalates to a work order, the plant is already losing money. That’s why we stock the 10006/2/1 as a priority line item: because when you need it, you need it today, not in three weeks.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common Fault Indicators Before the 10006/2/1 Fails Completely:

• DBM FAULT or DBM OFFLINE alarm on the LCN Universal Station — this is the most direct indicator. Don’t dismiss it as a nuisance alarm; it’s a countdown to data loss.
• RTC drift: If your process historian timestamps start diverging from the plant master clock by more than a few seconds per day, the RTC oscillator on the DBM is degrading. Lithium cell voltage is dropping.
• Configuration restore failures: After a power cycle, if the APM or HPM cards take longer than usual to reload parameters, or if operators report “default values” appearing in tuning constants, the SRAM backup is compromised.
• Intermittent “NODE RESTART” events logged in the system event journal without a corresponding power event — the DBM may be losing its backup integrity mid-cycle.

Step-by-Step Replacement Procedure:

1. Pre-work: Export a full system configuration backup via the TDC 3000 Universal Station before touching anything. Even if the DBM is degraded, you may still be able to pull a partial backup. Don’t skip this step.
2. Controlled node shutdown: The 10006/2/1 slot does not support hot-swap in standard TDC 3000 configurations. Coordinate with the control room to place affected loops in manual mode and execute a controlled node shutdown. Typical window: 15–30 minutes.
3. Physical swap: Discharge static, use the card extraction tool, and seat the replacement module firmly until the front-panel locking tab engages. Verify the backplane slot assignment matches your system configuration document — some later TDC 3000 builds reserve specific slots for the DBM.
4. RTC synchronization: On first power-up with a new DBM, the RTC will need to be set. Use the TDC 3000 system time synchronization utility from the Universal Station. Do not skip this — an unsynchronized RTC will corrupt historian timestamps from the moment the node comes back online.
5. Configuration reload verification: After node restart, confirm that all APM/HPM cards have successfully reloaded their parameter sets from the new DBM. Check tuning constants on at least three representative control loops before returning to automatic mode.
6. Battery baseline: Log the installation date of the new module. The internal lithium cell has a finite service life — typically 5–7 years under normal operating conditions. Schedule a proactive replacement before the next major turnaround.

Revision Compatibility Note: The 10006/2/1 is the /2 hardware revision with /1 firmware. If your system documentation specifies a different revision suffix, contact us before ordering — we can verify cross-compatibility or source the exact revision you need.

Reliability in Harsh Conditions

The TDC 3000 platform was engineered for continuous-process industries where the control room environment is anything but benign. Vibration from rotating machinery, thermal cycling from HVAC systems fighting summer heat loads, and humidity ingress during monsoon seasons in Southeast Asian and Middle Eastern facilities — the 10006/2/1 was designed to handle all of it.

Every unit we supply undergoes a four-stage inspection before it leaves our facility. First, a board-level visual inspection covering component condition, PCB trace integrity, connector pin alignment, and counterfeit screening against known reference units. Second, a functional power-on test in a live TDC 3000 test chassis: RTC oscillator frequency is measured, battery voltage is checked against the minimum threshold for reliable SRAM retention, and SRAM read/write cycles are exercised across the full address space. Third, a thermal soak at elevated temperature to screen for early-life failures — capacitors and oscillator crystals that are going to fail will fail in our test rack, not in your plant. Fourth, ESD-safe packaging with anti-static foam, a functional test report, and a certificate of conformance attached to the shipment.

We do not supply modules without a traceable inspection record. If a unit cannot pass our test protocol, it does not ship — period. In a decade of supplying TDC 3000 spares, our field return rate on DBM modules is under 1%.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. For plant-down emergencies, this geography matters: we can hand off to DHL Express or FedEx International Priority within hours of order confirmation, not days.

Standard Express Timeline (DHL / FedEx IP):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Kuwait, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, France): 4–5 business days
• North America (USA, Canada): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Australia / New Zealand: 3–4 business days

For genuine plant-down situations, contact us directly via WhatsApp before placing an order. We can confirm real-time stock availability, arrange same-day dispatch for orders confirmed before 14:00 CST, and coordinate next-flight-out freight for the most time-critical situations. Full export documentation — commercial invoice, packing list, country-of-origin certificate — is prepared in-house and included with every international shipment. No delays waiting on third-party freight forwarders.

All shipments are tracked end-to-end. You receive the tracking number the same day the package is handed to the carrier, and our team monitors transit status proactively — if there’s a customs hold or routing delay, we flag it before you have to ask.
