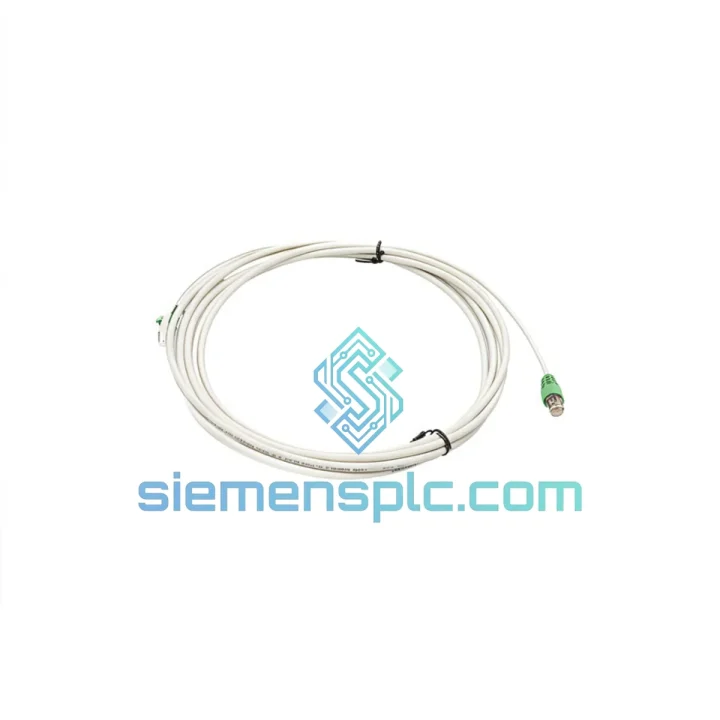

Honeywell 2MLC-E152 Extension Cable

Honeywell 2MLC-E152 Extension Cable — Stop the Clock on Your Downtime

Every minute your TDC 3000 system sits offline, you’re bleeding money. A failed or damaged 2MLC-E152 extension cable is one of the most underestimated causes of unplanned DCS shutdowns — and one of the fastest to fix, if you have the right part on hand. We do. This cable ships from Xiamen within 24 hours of order confirmation, reaching most global destinations in 3–5 business days via DHL or FedEx Express. No waiting on OEM lead times. No production delays stretching into weeks.

The Honeywell 2MLC-E152 is a 152 cm OEM-specified backplane extension cable engineered exclusively for the TDC 3000 and TotalPlant Solution (TPS) distributed control system architecture. It handles module-to-module signal routing inside DCS cabinets — a role that demands zero tolerance for connector degradation, shielding failure, or impedance mismatch. When this cable goes, your I/O communication goes with it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on TDC 3000 and TPS systems, here’s what I’ve seen go wrong with the 2MLC-E152 — and how to handle the swap without making things worse.

Common Fault Signatures Pointing to This Cable:

• Intermittent I/O loss on a specific module slot — not a module fault, but a cable continuity issue. Swap the cable before condemning the module.
• Fault code 0x4A / Communication Timeout on LCN — often traced to a degraded 2MLC-E series cable rather than the Local Control Network card itself.
• Noise spikes on analog I/O channels — shielding failure in the cable allows EMI ingress. Visually inspect the cable jacket and connector boot for cracking or burn marks.
• Module not recognized after cabinet relocation — connector seating issue. The 2MLC-E152 connector is keyed but can partially seat and pass visual inspection while failing electrically.

Replacement Procedure (Field-Tested):

• Step 1 — Confirm system state: Place the affected controller in manual mode before disconnecting. Never hot-swap this cable on a live critical loop without a bypass strategy in place.
• Step 2 — Document routing: Photograph the existing cable routing before removal. The 2MLC-E152 at 152 cm has specific bend radius requirements — improper re-routing causes premature jacket failure.
• Step 3 — Connector extraction: Use the OEM extraction tool or a flat non-conductive spudger. Do not pull by the cable body. The connector locking tab is fragile on aged units.
• Step 4 — Inspect backplane socket: Before inserting the new cable, check the backplane connector for bent pins or oxidation. A failed cable sometimes damages the socket — address this before installing the replacement.
• Step 5 — Seat and verify: Insert until the locking tab clicks. Restore the module, check for fault codes, and verify I/O channel communication in the operator station before returning to auto.
• Step 6 — No firmware action required: The 2MLC-E152 is a passive cable — no firmware update, no address configuration, no DIP switch setting needed. Plug-and-play replacement.

Length Selection Note: If your cabinet geometry requires a different reach, the same connector family is available in 2MLC-E076 (76 cm) and 2MLC-E305 (305 cm). Do not stretch or coil excess length tightly — both degrade signal quality over time.

Reliability in Harsh Conditions

Process plants don’t give cables an easy life. The 2MLC-E152 is built to survive the environment your DCS cabinet actually operates in — not just a clean lab bench.

• Vibration resistance: The cable assembly uses strain-relief construction at both connector ends, preventing the micro-fractures in conductor strands that cause intermittent faults under continuous mechanical vibration — common in compressor stations and rotating equipment areas.
• Thermal cycling tolerance: Rated 0°C to +60°C continuous operation. The jacket compound resists embrittlement through repeated heat-up/cool-down cycles typical of outdoor or poorly climate-controlled control rooms in tropical and desert environments.
• Humidity and condensation: The connector boot provides IP-rated moisture exclusion at the mating interface. In high-humidity coastal or offshore installations, this prevents the creeping oxidation that degrades contact resistance over months of operation.
• EMI shielding integrity: Full-coverage foil and braid shielding with a drain wire terminated at the connector shell. In environments with heavy VFD noise, welding equipment, or high-voltage switchgear nearby, this shielding is the difference between clean analog signals and noise-corrupted process data.
• Chemical resistance: The outer jacket resists common industrial solvents and cleaning agents used during panel maintenance — no jacket swelling or plasticizer migration that could contaminate connector contacts.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international cargo hub with direct DHL and FedEx Express lanes to every major industrial region globally. Here’s how your order moves:

• Order confirmation → same-day picking: Orders confirmed before 14:00 CST are picked, tested, and packaged the same business day.
• Export documentation: Commercial invoice, packing list, and ECCN/HS code classification prepared in parallel with packing — no customs delays caused by missing paperwork.
• Carrier handoff within 24 hours: DHL Express or FedEx International Priority, depending on destination and urgency. Tracking number provided immediately upon handoff.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days | Africa/Oceania 4–6 days.
• Customs clearance support: We provide HS code 8544.42 documentation and can issue a Certificate of Origin on request to facilitate import clearance in regulated markets.
• Emergency freight: For critical shutdowns, contact us directly via WhatsApp for same-day courier options and priority handling. We’ve shipped to offshore platforms and remote refineries — we know how to move fast when it counts.
