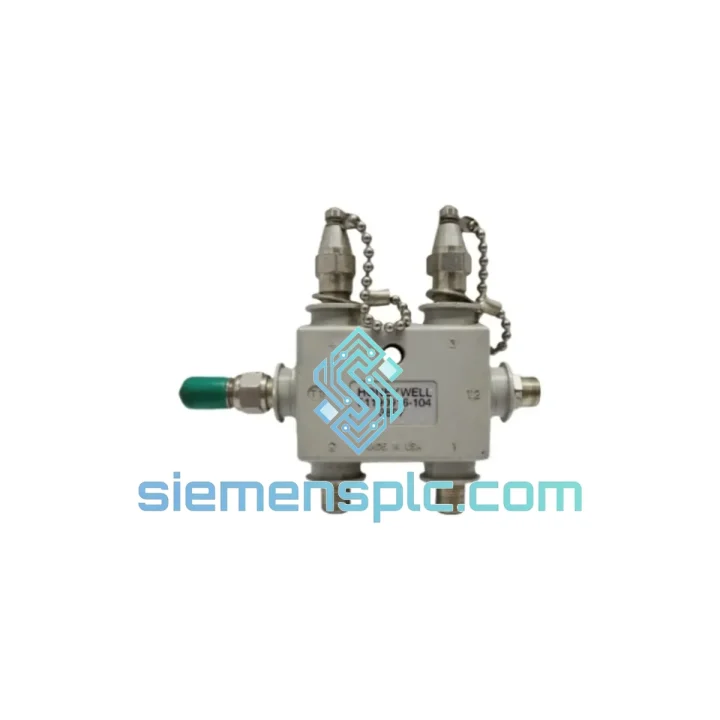

Honeywell 51190916-104 Coax Tap Assembly

Honeywell 51190916-104 Isolating Coax Tap – Stop the Bleed on Your TDC 3000 Downtime

Every minute your LCN or UCN coaxial bus is degraded, you’re bleeding process yield, risking safety interlocks, and watching maintenance costs climb. The Honeywell 51190916-104 Isolating Coax Tap Assembly is the exact OEM component that restores galvanic isolation at the node tap point — and we ship it from Xiamen within 24 hours of order confirmation. No waiting on factory lead times. No compromise on authenticity.

This is not a generic substitute. The 51190916-104 is a passive isolation tap engineered specifically for Honeywell’s TDC 3000 and TotalPlant Solution (TPS) distributed control architecture. It maintains coaxial bus impedance, eliminates ground-loop noise that corrupts loop data, and drops in without any software reconfiguration. If your plant is running TDC 3000 and you’re chasing intermittent communication faults, erratic loop behavior, or a hard node dropout — this component is where the investigation ends.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

When does 51190916-104 fail — and how do you catch it before it takes down a node?

In the field, isolating coax tap failures on TDC 3000 systems rarely announce themselves cleanly. The most common presentation is intermittent: a node that drops off the LCN for 2–5 seconds and recovers, or a UCN segment that starts throwing COMM FAIL alarms on one specific Hiway Gateway without any obvious hardware fault upstream. Engineers often chase firmware, cable continuity, or terminator resistance before landing on the tap assembly — don’t make that mistake.

Fault signatures that point to a degraded 51190916-104:

• Intermittent NODE OFFLINE or LCN COMM ERROR alarms on a single node while adjacent nodes remain stable
• Elevated bit-error rates on the coaxial segment — visible in the TDC 3000 Network Status Display
• Ground-loop induced noise: 50/60 Hz ripple on analog loops tied to that node’s I/O, with no change in field wiring
• Physical inspection reveals discoloration, cracked housing, or corroded coax connector at the tap point
• Isolation resistance between the node drop cable shield and bus trunk shield measures below 1 MΩ

Step-by-step replacement procedure:

1. Notify the control room. Confirm the affected node is in manual or that loops are handed off. Do not pull a tap on an active node without operator acknowledgment.
2. Identify the tap location. Trace the node drop cable from the module cabinet back to the coaxial trunk. The 51190916-104 is the inline assembly at the junction — typically mounted on the cable tray or DIN rail bracket.
3. Disconnect the node drop cable first, then the trunk-side coax connectors. Label both ends before removal — polarity and orientation matter on the trunk side.
4. No DIP switches or address settings required. The 51190916-104 is a passive component — there is no firmware, no self-addressing, and no configuration. Swap and reconnect.
5. Reconnect trunk-side first, then the node drop. Torque coax connectors finger-tight plus a quarter turn — over-torquing damages the center pin.
6. Verify isolation. Before powering the node back up, measure isolation resistance between the drop cable shield and trunk shield. Target: >10 MΩ. Anything below 1 MΩ indicates a wiring fault or a defective replacement unit.
7. Restore the node. Monitor the Network Status Display for 5–10 minutes. Bit-error count should drop to zero within two scan cycles if the tap was the root cause.
8. Document the failure. Log the date code of the removed tap and the measured isolation resistance at failure. This data is critical for predicting remaining life on adjacent taps in the same vintage installation.

Configuration note: Unlike active network components in TDC 3000 (AM, HG, HM), the isolating coax tap carries no firmware version dependency. There is no need to match software revisions or perform a system database update after replacement. The node will rejoin the LCN/UCN automatically once physical connectivity is restored.

Reliability in Harsh Conditions

Honeywell engineered the TDC 3000 platform for continuous operation in the most demanding process environments on earth — and the 51190916-104 tap assembly reflects that design philosophy. The passive isolation transformer at its core is encapsulated in a thermosetting resin compound that resists moisture ingress and maintains dielectric integrity across the full industrial temperature range. In refinery cable trays where ambient temperatures routinely exceed 55°C and humidity cycles between 20% and 95% RH, the encapsulated design prevents the condensation-driven creepage that kills conventional connectors.

Mechanical vibration is the other silent killer in process plant environments — compressor decks, pump rooms, and turbine halls generate continuous broadband vibration that fatigues solder joints and loosens coax connectors over time. The 51190916-104’s coaxial connectors are specified to IEC 61076-3 mechanical endurance standards, with a mating cycle rating that far exceeds the replacement intervals typical in planned maintenance programs. The housing is rated for the IP protection level consistent with Honeywell’s TDC 3000 field component family, providing adequate protection against dust and incidental liquid contact in standard control room and marshalling cabinet installations.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions with humidity below 60% RH and temperature maintained between 15°C and 25°C. Each unit ships in anti-static packaging with a desiccant pack and humidity indicator card — if the card reads above 30% on arrival, contact us immediately before installation.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items confirmed before 15:00 CST. Here’s exactly what happens after you place an order:

• Order confirmation (T+0): You receive a proforma invoice and stock confirmation within 2 hours of inquiry. Payment via T/T, PayPal, or credit card.
• Packing & QC (T+0 to T+1): The unit is pulled from climate-controlled storage, inspected for connector integrity and housing condition, packed in anti-static foam with desiccant, and labeled with your order reference and HS code (8537.10) for customs clearance.
• Export documentation (T+1): Commercial invoice, packing list, and Certificate of Origin are prepared. For customers requiring a Certificate of Conformance, this is issued at the same stage.
• DHL / FedEx dispatch (T+1): Shipment is handed to DHL Express or FedEx International Priority — carrier selection based on your destination and urgency. Tracking number issued within 4 hours of pickup.
• Transit times (typical): Southeast Asia 1–2 days | Middle East & Europe 2–3 days | North America 2–4 days | South America & Africa 3–5 days.
• Customs clearance: We pre-declare HS code and provide all required documentation. For destinations with import licensing requirements for industrial control equipment, contact us in advance — we have experience navigating these requirements across 40+ countries.

For genuine emergency shutdowns where every hour counts, call or WhatsApp us directly. We can arrange airport-to-airport freight or hand-carry courier for critical situations where standard express timelines are not acceptable.
