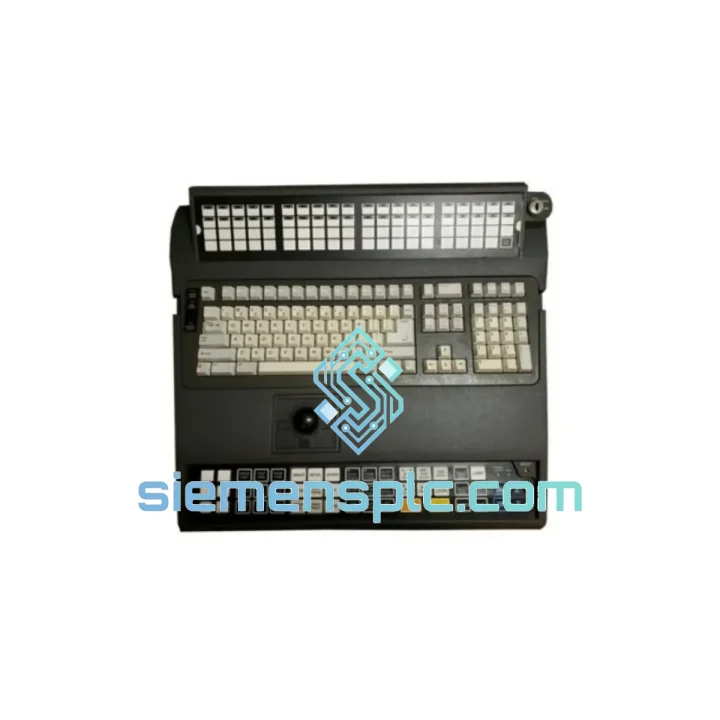

Honeywell 51196694-300 HMI Keypad

Honeywell 51196694-300 Experion PKS HMI Keypad — Stop the Clock on Your Downtime

Your Experion PKS operator station just went dark. The shift supervisor is on the phone. Every minute the console is offline, you’re bleeding production revenue and burning through your maintenance budget. The Honeywell 51196694-300 HMI Keypad is the exact OEM peripheral your workstation needs — and we have it on the shelf in Xiamen, ready to clear customs and land on your dock faster than your procurement team can raise a PO.

This is not a generic substitute. This is the factory-specified operator keypad for Honeywell Experion PKS control room stations — the same tactile, dedicated-function input device your operators have been using for years. Drop it in, reconnect the cable, and your console is back in service. No software reconfiguration. No firmware flash. No guesswork.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling failed HMI peripherals out of live control rooms, here is what actually matters when you’re swapping a 51196694-300 under pressure:

1. Confirm the failure mode before you pull the unit. The most common field failure on this keypad is not the keypad itself — it’s the ribbon cable connector at the operator station chassis. Before condemning the 51196694-300, reseat the cable at both ends. If the console still shows no keypad response and the Experion PKS system log is throwing a Peripheral Communication Fault or HMI Device Not Detected alarm, the keypad is your culprit.

2. Power down the operator station before removal. The 51196694-300 connects via a proprietary bus that is not hot-swap rated. Attempting to disconnect under power risks corrupting the operator station’s peripheral enumeration table, which will require a full HMI station restart to clear — adding 15 to 30 minutes to your recovery time.

3. No address switches, no DIP configuration. Unlike I/O modules in the Experion PKS C300 controller rack, this peripheral does not require manual addressing. The operator station auto-enumerates connected HMI peripherals on boot. Once the replacement unit is seated and the station powers up, Experion PKS will detect the 51196694-300 automatically within the first 60 seconds of the boot sequence.

4. Firmware is embedded — no field flash required. The keypad firmware is factory-loaded and does not need to match a specific Experion PKS software revision for basic operation. If your site is running a heavily customized function key mapping, export your current keypad configuration from the Experion PKS Engineering Station before the swap so you can reload it post-replacement without relying on memory or paper notes.

5. Validate with a live alarm acknowledgment test. After installation, do not sign off the work order until an operator has physically pressed each function key and confirmed alarm acknowledgment response in the Experion PKS alarm summary. A key that registers visually but fails to transmit the acknowledgment signal is a latent fault that will surface at the worst possible moment.

Common fault codes associated with 51196694-300 failure:

• ESVT-HMI-001 — Keypad peripheral not detected on station bus
• ESVT-HMI-004 — Keypad communication timeout, check cable integrity first
• PKS-OPS-017 — Operator input device offline, station running in degraded mode

Reliability in Harsh Conditions

Control rooms are not office environments. Temperature swings between day and night shifts, humidity from cooling system failures, and the constant mechanical vibration from adjacent compressor and pump skids all take a toll on HMI peripherals over time. The Honeywell 51196694-300 is built to survive exactly these conditions.

The keypad housing is constructed from high-impact ABS with an internal steel reinforcement plate that absorbs panel vibration without transmitting it to the internal PCB. The key switches are rated for a minimum of 5 million actuations — at a busy operator station running 24/7 with three shifts, that translates to years of continuous service before mechanical wear becomes a factor.

The internal electronics are conformally coated to resist moisture ingress from humidity spikes and the occasional cleaning fluid splash that is an unavoidable reality in process plant control rooms. Operating range of 0°C to 50°C covers the full envelope of air-conditioned control rooms, including those in tropical climates where HVAC reliability is inconsistent.

Units sourced through siemensplc.com are stored in a climate-controlled warehouse in Xiamen. Each unit is individually bagged in anti-static packaging with desiccant, inspected for physical damage, and verified against Honeywell OEM part markings before dispatch. You are not getting a shelf-worn unit that has been sitting in an uncontrolled environment for three years.

Global Express Logistics

Xiamen is one of China’s primary export hubs, with direct DHL Express and FedEx International Priority services operating daily. From the moment your order is confirmed, here is the actual sequence:

• Hour 0–2: Order confirmed, unit pulled from climate-controlled stock, inspected, and packaged with anti-static wrap and foam-lined outer carton.
• Hour 2–6: Commercial invoice, packing list, and export declaration prepared. HS code 8537.10 applied for customs clearance. Certificate of origin issued on request.
• Hour 6–24: Shipment handed to DHL Express or FedEx International Priority at Xiamen Gaoqi International Airport cargo terminal.
• Day 2–4: Delivery to most destinations in Southeast Asia, the Middle East, and Europe. North America typically Day 3–5 depending on customs clearance speed at destination.

Tracking numbers are sent via email and WhatsApp immediately upon carrier pickup. If your site requires a specific carrier, import broker, or documentation format (e.g., MSDS, fumigation certificate, or specific invoice format for LC payment), advise us at the time of order and we will accommodate.

For orders requiring same-day dispatch, contact us before 14:00 CST. We will confirm stock availability and cut-off time in real time.
