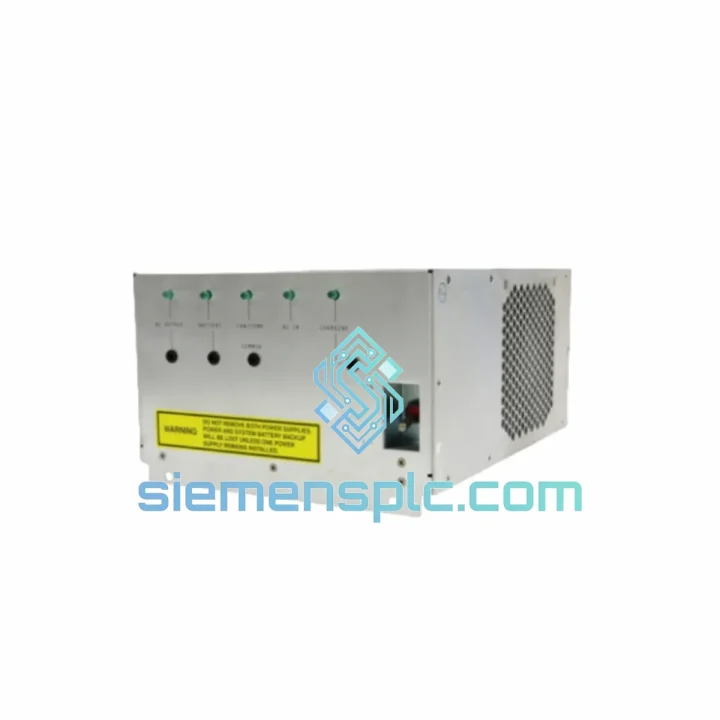

Honeywell 51198947-100 51198651-100 DCS Power Supply Module

Honeywell 51198947-100 / 51198651-100 — Every Minute of Downtime Costs You Money. We Ship Today.

Your TDC 3000 or HC900 rack just lost power. The process is down. The shift supervisor is on your back. You’ve already pulled the failed module and confirmed it: 51198947-100 assembly, board revision 51198651-100. You don’t need a sales pitch — you need the part on a plane tonight.

We stock this module in Xiamen. It clears customs with full commercial documentation. DHL Express or FedEx Priority puts it at your facility in 24–72 hours depending on your region. While your competitors are still waiting on OEM lead times measured in weeks, your line is back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Honeywell DCS platforms, these are the failure patterns and swap pitfalls that actually matter:

Common Failure Signatures Before Full Failure:

• Intermittent “PWR FAIL” or “PSU FAULT” alarms on the HMI — often dismissed as nuisance alarms until the module dies completely. Don’t ignore them. Order a spare the first time you see it.
• Rack modules rebooting spontaneously during peak load — this is the power supply struggling under thermal stress, not a firmware issue.
• Voltage sag on the DC bus measured at the backplane connector — anything more than ±3% of nominal is a red flag.
• Capacitor bulge or discoloration on the 51198651-100 board visible through the module vent slots — if you can see it, the module is already past its service life.

Step-by-Step Replacement Procedure:

1. Verify redundancy status first. Before pulling the failed unit, confirm the standby PSU (if installed) has taken over cleanly. Check the rack status display or HMI for “PSU B ACTIVE” or equivalent. Never pull a module if the standby hasn’t confirmed takeover — you will drop the rack.
2. No DIP switches or address configuration required. The 51198947-100 is not addressable — it is a passive power supply with no firmware or node address. Slot it in, secure the retention latch, and the rack recognizes it automatically. No configuration tool needed.
3. Check backplane connector pins before insertion. Bent or corroded pins on the rack backplane are a common cause of “new module, same fault” callbacks. Use a magnifier and a soft brass brush. Do not use steel tools on the connector.
4. Firmware matching: not applicable. This module carries no embedded firmware. There is no version to match. If a vendor tells you otherwise, they are confusing this with a controller module.
5. Post-swap verification. After seating the new module, monitor DC bus voltage at the backplane for 10 minutes under normal process load. Confirm the HMI clears all PSU fault alarms. Log the swap in your CMMS with the serial number of the replaced unit.
6. Retain the failed module. The 51198651-100 regulation board is sometimes repairable at component level (failed electrolytic caps, blown MOSFETs). Ship it to a qualified repair depot rather than scrapping it — you may recover a usable spare.

Fault Code Reference (TDC 3000 / HC900):

• PSU FAULT — PRIMARY: Primary supply has failed or is below threshold. Standby should be active. Replace primary immediately.
• PSU FAULT — REDUNDANCY LOST: Both supplies are degraded or one has already failed and the other is marginal. Critical — replace both if budget allows.
• RACK POWER LOW: Bus voltage below acceptable range. Could be PSU degradation or excessive load from added I/O modules. Audit rack load before assuming PSU failure.
• PSU COMM ERROR: The power supply’s status reporting circuit has failed. Module may still be supplying power but cannot report health. Replace at next maintenance window — do not wait for full failure.

Reliability in Harsh Conditions

Honeywell engineered the 51198947-100 for the environments where DCS systems actually live — not a climate-controlled lab. Refineries in the Middle East where ambient temperatures hit 55°C. Offshore platforms where salt-laden air attacks every exposed connector. Chemical plants where vibration from pumps and compressors runs 24/7 for years without interruption.

The module’s internal design reflects this: conformal coating on the 51198651-100 regulation board protects against humidity and corrosive atmospheres. The power components are derated to operate well within their thermal limits at maximum rated load, which is why these modules routinely outlast their 10-year design life in well-maintained installations. The rack-mount form factor with positive retention latch prevents vibration-induced connector fretting — a failure mode that kills lesser power supplies in high-vibration environments within 18 months.

Every unit we ship has been bench-tested under load at elevated temperature before packaging. We do not ship modules that have only passed a visual inspection. If a unit doesn’t hold rated output voltage under a 30-minute full-load thermal soak, it doesn’t leave our warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most connected export ports in Asia, with daily DHL Express and FedEx Priority flights to major hubs worldwide. Here is what the logistics chain looks like from your purchase order to your receiving dock:

• Order confirmation: Within 2 hours of payment or PO receipt during business hours (UTC+8, Mon–Sat).
• Packing & documentation: ESD-safe anti-static bag, foam-lined carton, humidity indicator card, desiccant pack. Commercial invoice, packing list, and Certificate of Conformance prepared simultaneously.
• Export clearance: HS code pre-classified, export license not required for this module. Customs clearance typically same-day.
• Transit times (DHL Express / FedEx Priority): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 2–3 days | North America 3–4 days | South America 4–5 days | Africa 4–6 days.
• Tracking: AWB number sent within 4 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Import duties: We provide accurate HS codes and declared values to minimize customs delays. Formal entry documentation available for high-value shipments.

For genuine emergencies — plant down, production stopped — contact us on WhatsApp directly. We have arranged same-day dispatch for critical orders when contacted before 14:00 CST.
