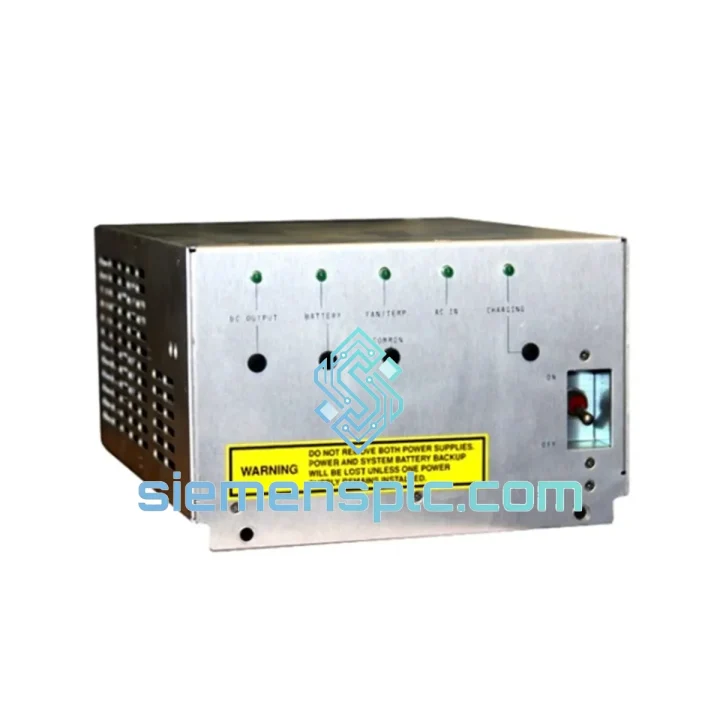

Honeywell ACX631 51198947-100 DCS Power Supply – TDC 3000 UCN

Honeywell ACX631 51198947-100 UCN Power Module — Backbone Power Architecture for TDC 3000 Distributed Control Networks

The ACX631, catalogued under Honeywell part number 51198947-100, is the dedicated power conditioning and distribution module for the Universal Control Network (UCN) segment within Honeywell’s TDC 3000 Distributed Control System. In a UCN topology, every node — from Process Managers (PM) to Application Modules (AM) and Highway Gateway Modules (HGM) — depends on a stable, regulated DC bus delivered by this module. A voltage deviation of more than ±5% on the UCN backplane rail is sufficient to trigger node dropouts, causing the entire control loop to enter a fail-safe hold state. The ACX631 is therefore not a peripheral component; it is the electrical foundation upon which process determinism is maintained.

Deployed across refineries, ethylene crackers, LNG terminals, and thermal power stations, TDC 3000 installations routinely operate 20–30 years beyond their original commissioning date. In this lifecycle context, the ACX631 transitions from a standard spare to a strategic asset. Procurement teams managing aging DCS infrastructure must account for the fact that OEM production of this module has been discontinued; sourcing from verified secondary-market channels is the only viable path to maintaining system uptime without a full platform migration.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ACX631’s internal architecture reflects the power engineering philosophy of late-1980s to 1990s industrial control design: over-engineered margins, conservative thermal derating, and hardware-level fault containment rather than software-managed recovery.

Galvanic Isolation Architecture: The module employs a transformer-isolated forward converter topology. The primary-to-secondary isolation barrier is rated to withstand transient overvoltages consistent with IEC 61000-4-5 Level 3 surge immunity requirements. This means that common-mode noise injected from the AC distribution panel — a frequent occurrence in heavy industrial environments with large motor drives — is attenuated before it reaches the UCN backplane. The isolation barrier also prevents ground loop currents from propagating between the AC supply ground and the DCS signal ground, a critical design requirement in plants where the instrumentation ground and power ground are bonded at different potential reference points.

Output Regulation and Hold-Up Time: The DC output stage uses a linear post-regulator in series with the switching stage to achieve tight load regulation (typically ±1% under full load swing). The bulk capacitance on the output rail is sized to provide a minimum 20 ms hold-up time at full load — sufficient to ride through a single AC cycle dropout without triggering a UCN node reset. This characteristic is particularly important in facilities where the AC supply is subject to momentary interruptions from large motor starts on shared distribution buses.

Thermal Management: The module uses a forced-air cooling path aligned with the TDC 3000 chassis airflow direction. Internal thermal sensors are wired to the chassis fault bus; if the module’s internal temperature exceeds the design threshold, a hardware fault signal is asserted on the backplane before any component enters thermal stress, allowing the system to initiate a controlled shutdown rather than an abrupt power loss.

EMC Design: Input filtering includes a common-mode choke and X/Y capacitor network conforming to CISPR 11 Class A conducted emission limits. This is relevant in environments where the DCS shares AC distribution with variable-frequency drives or high-current switching loads that generate significant conducted interference in the 150 kHz–30 MHz band.

System Integration Benefits

• Deterministic UCN Bus Stability: Regulated output voltage ensures all UCN nodes operate within their specified supply tolerance, preventing non-deterministic communication latency caused by brownout conditions on the backplane rail.
• Zero-Impact Replacement Procedure: The ACX631 is designed for hot-swap replacement in redundant power configurations. In dual-PSU chassis arrangements, one module can be extracted and replaced without interrupting UCN network traffic, eliminating the need for a planned maintenance window.
• Fault Transparency via Chassis Bus: Hardware fault signals are propagated to the TDC 3000 system status display in real time. Maintenance personnel receive a specific fault code identifying the power module as the failure source, reducing mean time to diagnose (MTTD) from hours to minutes.
• Surge Immunity for Field-Adjacent Installations: The IEC 61000-4-5 compliant isolation barrier protects downstream UCN modules from surge events originating in the AC distribution network, reducing the risk of cascade failures across multiple control nodes.
• Long-Term Spare Parts Compatibility: The ACX631 is backward and forward compatible across TDC 3000 UCN chassis revisions, meaning a single spare unit covers multiple chassis generations in a multi-train plant — simplifying spare parts inventory management.
• Reduced MTTR Through Standardized Form Factor: The module’s rack-mount form factor and keyed connector arrangement prevent incorrect installation. Field technicians can complete a replacement in under 15 minutes without consulting wiring diagrams, directly reducing mean time to repair (MTTR).
• Diagnostic Data Retention: The module’s fault latch circuit retains the last fault state even after power cycling, allowing post-incident analysis without requiring a data historian record — useful in plants where historian coverage of power module status is incomplete.
• Compliance with Plant Safety Architecture: The galvanic isolation and hardware fault signaling design are compatible with IEC 61511 functional safety requirements for DCS power supply subsystems, supporting SIL-rated loop integrity assessments during plant safety audits.

Quality Assurance & Global Logistics

Every ACX631 51198947-100 unit supplied through our Xiamen operations undergoes a structured verification protocol before dispatch. Units sourced from decommissioned plant inventories or authorized secondary-market channels are subject to visual inspection for PCB corrosion, capacitor bulge, and connector pin integrity. Functional units are powered up and output voltage levels are measured under load to confirm regulation performance within specification. Test data is recorded and available upon request.

Packaging follows anti-static and mechanical protection standards appropriate for international air freight: ESD shielding bag, 30 mm foam cushioning on all six faces, and double-wall corrugated outer carton. Each shipment includes a commercial invoice, packing list, and certificate of origin — standard documentation for customs clearance in the EU, Middle East, Southeast Asia, and the Americas.

From our Xiamen, China facility, standard international express delivery (DHL / FedEx / UPS) reaches most destinations within 3–5 business days. For urgent plant shutdowns requiring same-day dispatch, contact us before 14:00 CST to confirm cut-off eligibility. Sea freight consolidation is available for bulk orders exceeding 50 kg. All units carry a 12-month warranty covering functional failure under normal operating conditions.
