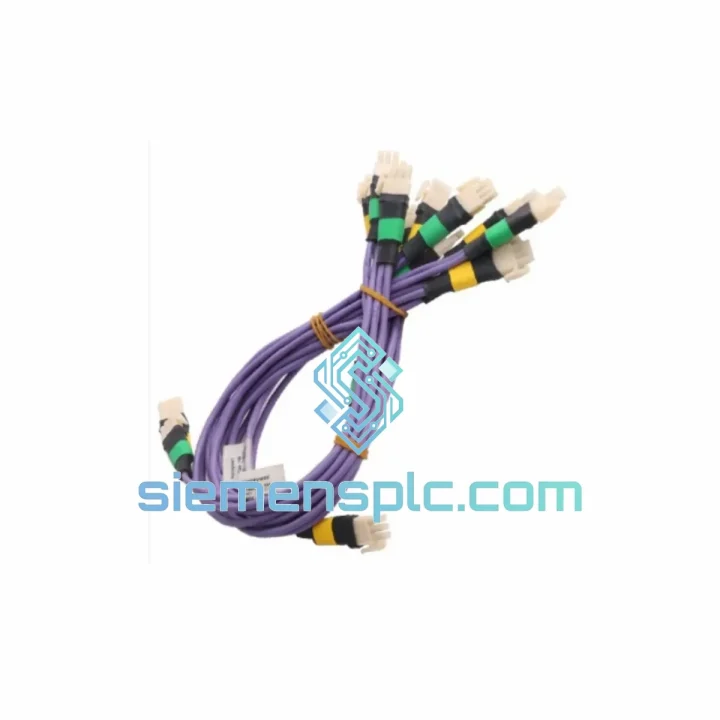

Honeywell 51202329-101 I/O Link Cable

Honeywell 51202329-101 I/O Link Cable — Stop the Clock on Your Downtime

Every minute a TDC 3000 node sits offline, your process unit is bleeding money. A failed I/O Link cable between the High-Performance Process Manager (HPM) and its field termination assembly is one of the most deceptively simple faults that can halt an entire train. We stock the Honeywell 51202329-101 (alternate PN: 51232029-100) precisely because procurement lead times from OEM channels routinely stretch to 6–12 weeks — time you do not have during an unplanned outage.

Our Xiamen warehouse holds verified units ready for same-day dispatch. DHL Express or FedEx International Priority gets this cable to your plant gate in 2–5 business days, anywhere on the planet. No waiting on factory allocation, no minimum order quantity, no bureaucratic RFQ cycle that burns another week.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience shows the 51202329-101 fails in three predictable scenarios. Knowing which one you are dealing with cuts diagnostic time from hours to minutes.

Fault Pattern 1 — Intermittent I/O Link Communication Errors (Alarm: IOP or BAD PV on multiple points simultaneously)
This is the classic symptom of a degraded shield or a cracked drain-wire connection near the HPM backplane connector. The fault is temperature-sensitive — it often clears when the cabinet cools overnight and returns when the enclosure heats up during the day shift. Do not waste time re-tuning loops. Pull the cable, inspect the connector boot for micro-cracks, and swap the assembly. Continuity alone will not catch a high-impedance intermittent fault; use a TDR or measure shield resistance end-to-end under flex.

Fault Pattern 2 — Hard I/O Link Failure After Maintenance Activity (Alarm: IOLINK FAIL, node drops off LCN)
Ninety percent of post-maintenance I/O Link failures are connector-seating issues, not cable damage. Before condemning the cable, reseat both ends with the HPM powered down. If the node does not recover within 60 seconds of power-up, swap the cable. Note: the HPM performs automatic I/O Link address assignment on power-up — no DIP switch or jumper configuration is required on the cable itself. The address is stored in the HPM’s non-volatile memory. After cable replacement, the node should self-recover without a database reload.

Fault Pattern 3 — New Cable, Node Still Offline (Alarm persists after swap)
If the replacement cable does not restore the node, shift focus to the HPM I/O Link driver card (51304485-100 series) or the FTA termination block. Check the I/O Link terminator resistor (51201420-xxx) at the far end of the segment — a missing or failed terminator causes reflections that prevent link establishment even with a perfect cable. Also verify firmware revision compatibility between the HPM and the I/O modules on that link segment; a firmware mismatch after a partial upgrade can mimic a cable fault.

Replacement Procedure (Condensed):

• Notify the control room — place affected I/O points in manual or fallback mode before disconnecting.
• Power down the HPM I/O Link segment (do not hot-swap the cable under live I/O Link signal).
• Label both ends of the old cable with the segment ID before removal.
• Install 51202329-101, torque connector screws to Honeywell-specified finger-tight + ¼ turn.
• Power up HPM — monitor LCN console for node recovery within 90 seconds.
• Verify all I/O points return to GOOD status before releasing to automatic control.
• Retain the failed cable for root-cause analysis and photographic documentation.

Reliability in Harsh Conditions

Process plants are not laboratory environments. The 51202329-101 is engineered to survive the conditions that destroy generic cable assemblies within months.

The foil-plus-drain-wire shield construction provides 100% EMI/RFI coverage, critical in refineries and chemical plants where variable-frequency drives, high-voltage bus bars, and radio transmitters create broadband interference that corrupts unshielded signal cables. The PVC jacket is UV-stabilised and rated for continuous operation at 70 °C ambient — relevant in hot-climate installations where cable trays run through unventilated pipe racks.

Connector bodies are keyed and latched to prevent mis-mating during vibration events. In rotating-equipment environments — compressor trains, turbine halls, pump stations — cable connectors that rely solely on friction or a single latch screw work loose over months of continuous vibration. The OEM connector design on this assembly uses a positive mechanical lock that maintains contact integrity under IEC 60068-2-6 vibration profiles.

Humidity resistance is equally important in coastal and tropical installations. The cable jacket and connector boot materials are selected to resist moisture ingress at the 95% RH non-condensing rating of the TDC 3000 platform. Units stored in our climate-controlled Xiamen warehouse are individually bagged with desiccant and inspected for jacket integrity before shipment — we do not ship cables that have been stored in open shelving exposed to warehouse humidity cycles.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. This geography is not accidental; it gives us the shortest possible transit time to Southeast Asia, the Middle East, Europe, and the Americas compared to inland Chinese suppliers.

Standard Export Flow:

• Day 0 (Order Confirmed): Unit pulled from climate-controlled stock, photographed, and packed. Commercial invoice, packing list, and certificate of origin prepared. Export customs declaration filed same day for orders confirmed before 14:00 CST.
• Day 1: DHL Express or FedEx International Priority pickup. Tracking number issued to buyer within 2 hours of collection scan.
• Day 2–5: Delivery to plant gate depending on destination. Singapore, Malaysia, Thailand: 2–3 days. Middle East, Europe: 3–4 days. Americas: 4–5 days.

All shipments include a full export documentation package: commercial invoice with HS code 8544.42, packing list, certificate of origin (Form E available for ASEAN buyers), and our inspection report. For buyers in regulated industries requiring a certificate of conformance, this is prepared at no additional charge and included in the shipment envelope.

We do not consolidate urgent orders into economy freight to save cost. If you need it fast, it ships fast — the logistics cost is a rounding error compared to the cost of one additional day of unplanned downtime in a process unit.
