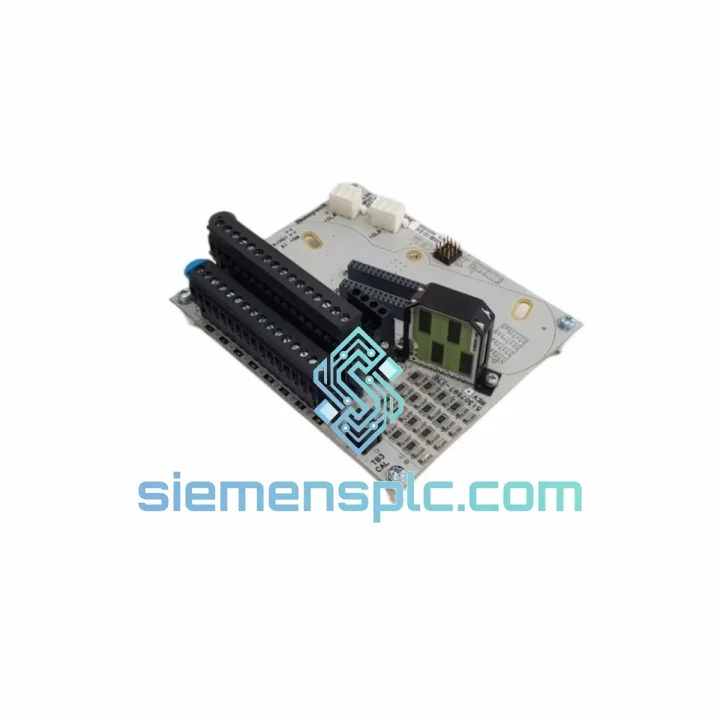

Honeywell DC-TAIX01 Analog Input Module

DC-TAIX01 In Stock Now — Every Hour of Downtime Costs You More Than This Module

Your TPS or TDC 3000 system just threw a fault. The analog input card is dead. The process is down. You’ve already called your OEM and they quoted you 8–14 weeks. That’s not an option. We ship the Honeywell DC-TAIX01 (P/N: 51307597-176) from Xiamen within 24 hours of order confirmation — DHL Express or FedEx International Priority, door to door, with full export documentation. This is the module. This is the source. Let’s get your plant back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The DC-TAIX01 fails in predictable ways. Knowing the failure signature before you pull the card saves you from chasing ghosts in the wiring or the FTA. Here’s what 10 years of field calls on TPS systems actually looks like:

Common Fault Codes & Root Causes:

• IOP FAIL / Module Offline: The card has lost communication with the backplane. First check the card seating — TPS cards are notorious for partial ejection after vibration events. Re-seat firmly. If the fault persists after a cold restart, the card’s backplane interface logic has failed. Replace the DC-TAIX01.
• BAD PV on all channels simultaneously: This is almost never a field wiring issue. It points to the card’s A/D converter or reference voltage circuit. Swap the card first, then verify FTA continuity if the fault follows the slot.
• Single-channel BAD PV with others healthy: Check the FTA terminal block for that channel — corrosion, loose screw terminal, or a blown input protection fuse on the FTA. If FTA checks out clean, the channel’s input multiplexer on the DC-TAIX01 has failed. Card replacement required.
• Intermittent signal drift / noisy readings: Capacitor aging on the analog front-end. Common in cards over 10 years old. Refurbished units from our stock have reconditioned analog stages — ask us to confirm before ordering.
• Card powers up but shows INIT loop: Firmware mismatch between the card revision and the IOP/HPM firmware version running in your cabinet. Confirm your HPM firmware revision before ordering — the -176 revision of 51307597 is compatible with HPM firmware R500 and above. Earlier revisions may require a different card suffix.

Step-by-Step Hot-Swap Replacement Procedure (TPS/HPM):

• Step 1 — Confirm redundancy status: If this I/O module is part of a redundant pair, verify the secondary is healthy and in control before touching the primary. Do not assume — check the HPM status display.
• Step 2 — Place the point in manual: From the operator console, place all process points associated with this card in manual mode. Document current setpoints before you touch anything.
• Step 3 — Inhibit the card: Use the Engineering Console to inhibit the IOP slot. This prevents nuisance alarms during the swap and avoids triggering any interlock logic tied to BAD PV states.
• Step 4 — Physical extraction: Squeeze the card ejector levers simultaneously and pull straight out. Do not rock the card — the backplane connector is fragile on aged cabinets. Inspect the slot connector pins for bent contacts before inserting the replacement.
• Step 5 — Insert the DC-TAIX01 replacement: The card is keyed — it only seats in the correct orientation. Push firmly until both ejector levers click. There is no address DIP switch on this card; the IOP address is assigned by slot position in the HPM cabinet, not by hardware configuration. No jumper setting required.
• Step 6 — Re-enable and verify: Un-inhibit the slot from the Engineering Console. The card will go through a self-test sequence (approximately 45–90 seconds). Monitor the IOP status. Once the card shows GOOD, verify PV readings against your field instruments before returning points to auto.
• Step 7 — Document: Log the card serial number, replacement date, and failure mode in your CMMS. TPS legacy systems are approaching end-of-support — tracking spare consumption helps you plan your next maintenance window.

Reliability in Harsh Conditions

The DC-TAIX01 was designed for continuous operation inside HPM cabinets in oil refineries, chemical plants, and power stations — environments where ambient temperature swings, vibration from rotating machinery, and humidity from coastal or tropical locations are daily realities, not edge cases.

The card’s analog front-end uses shielded signal traces and hardware filtering to reject common-mode noise from variable-frequency drives and high-current motor starters running in adjacent cable trays. The backplane connector is gold-plated to resist oxidation in humid environments. The PCB conformal coating — standard on the -176 revision — provides protection against condensation and airborne contaminants including H₂S, which is a known killer of uncoated electronics in refinery environments.

Units in our inventory that are designated as refurbished have been inspected under magnification for PCB delamination, solder joint fatigue, and electrolytic capacitor bulging — the three most common age-related failure modes on analog I/O cards that have been in service for 10–20 years. We do not resell cards that show any of these indicators. If a card passes our bench test but shows cosmetic wear, we disclose it. You get what we describe.

For installations in particularly aggressive environments — offshore platforms, coastal chemical plants, or high-vibration compressor stations — ask us about card condition grading and whether a new-old-stock unit is available for your specific application.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This matters when your plant is down and every hour of delay has a dollar figure attached to it.

Standard export process for the DC-TAIX01:

• Order confirmation: We confirm stock condition and quantity within 2–4 hours of your inquiry during business hours (CST).
• Export documentation: Commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10) prepared same day. For customers requiring a formal inspection report or test certificate, allow one additional business day.
• ESD packaging: The card is packed in anti-static shielding bag, foam-lined rigid carton, and outer corrugated box rated for air freight handling. No bubble wrap shortcuts.
• Carrier handoff: DHL Express or FedEx International Priority pickup from our facility within 24 hours of payment confirmation. Both carriers provide real-time tracking from Xiamen to your door.
• Transit times (estimated): Southeast Asia 1–3 days | Middle East 2–4 days | Europe 3–5 days | North America 3–5 days | South America / Africa 5–8 days.
• Customs clearance: We provide all documentation required for smooth customs clearance. For customers in countries with specific import licensing requirements for industrial electronics, contact us before ordering so we can advise on documentation.
• Bulk orders: For orders of 3+ units or combined shipments with other DCS spare parts, we can consolidate into a single shipment to reduce per-unit freight cost. Sea freight is available for non-urgent bulk orders.

We have shipped DCS spare parts to refineries in Saudi Arabia, chemical plants in Germany, power stations in India, and offshore platforms in Southeast Asia. The logistics process is not new to us. Your module will arrive properly packed, properly documented, and on time.
