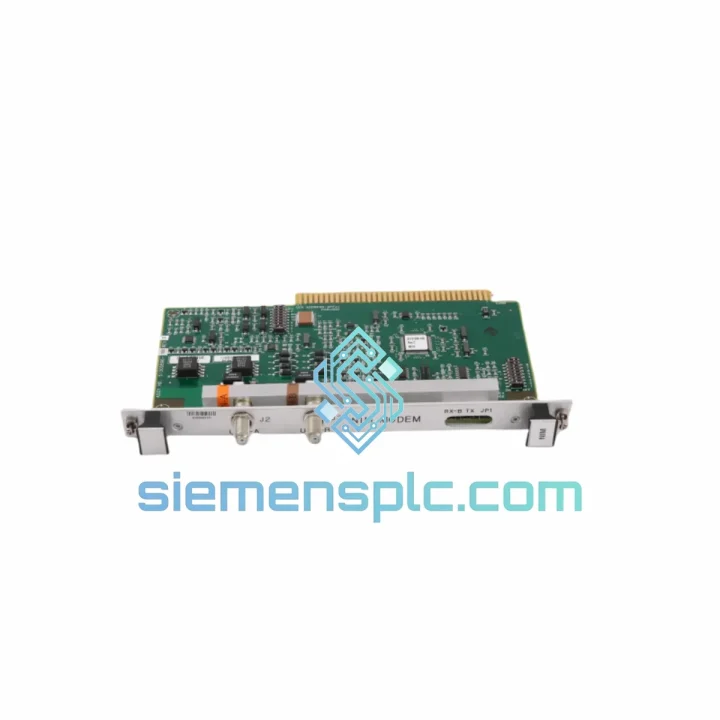

Honeywell 51305896-100 LCN Modem Board

Honeywell 51305896-100 LCN Modem Board — Your TDC 3000 Serial Link Is Down. We Ship Today.

It’s 02:00. The night shift supervisor just called. LCN Segment 2 is dark — three nodes offline, the historian is blind, and the operator station is throwing NODE LOST alarms across the board. You’ve already ruled out the cable and the termination resistors. The fault is the modem board. You need a Honeywell 51305896-100 on-site before the morning handover, not in ten business days.

We have it. It’s on the shelf in Xiamen. DHL Express picks up at 15:00 CST. If you confirm before that cutoff, this board is on a plane tonight.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you one thing: the difference between a two-hour fix and a twelve-hour nightmare is preparation. Here is what you need to know before you pull the 51305896-100 out of the rack.

Confirming the Fault Is the Modem Board

The 51305896-100 handles serial modulation on the LCN segment. When it degrades, the failure signature is almost always communication-layer, not process-layer. You will see one or more of the following before the board dies completely:

• Intermittent COMM FAIL alarms on specific LCN nodes — not all nodes, just those downstream of the failing board’s segment.
• Rising CRC error counts in the system historian. Pull the diagnostic log and look for a trend over the past 48–72 hours. A healthy segment runs near-zero CRC errors. Anything climbing above 50 errors per hour is a board in distress.
• SYS-047 — serial link CRC error rate exceeding threshold. This is your early warning. The board is still passing data but degrading. You have a window — use it.
• LCN-001 / LCN-003 — node communication timeout. At this stage the segment is dropping nodes intermittently. Replacement is no longer optional.
• HW-FAIL-12 — hardware self-test failure on power-up. The board has failed its internal loopback. It will not recover. Replace immediately.
• NIM-OFFLINE — Network Interface Module reporting a downstream node as permanently offline after cable and termination checks have been cleared.

Before You Pull the Board

• Verify the redundancy path is active on the affected segment before touching anything. If the segment is not redundant, coordinate with the control room to put the affected loops in manual. Do not assume the process is safe — confirm it.
• Photograph the existing board in-situ before removal. Pay specific attention to any DIP switches or jumper blocks. The 51305896-100 carries node address configuration on some TDC 3000 revisions. The replacement must be set identically or the node will enumerate with a conflicting address and the segment will fault again.
• Check the firmware revision suffix. The -100 suffix designates a specific hardware revision. If your system is running LCN software R500 or later, confirm the board revision is compatible with your system’s hardware matrix before ordering. A mismatched revision will power up, pass self-test, and still fail to exchange data — a frustrating callback scenario that is entirely avoidable.
• Inspect the backplane connector on the chassis side before seating the new board. Bent or oxidized pins on the chassis are the leading cause of “new board, same fault” field callbacks. A dental pick and contact cleaner take two minutes. Skip this step and you may be back on-site tomorrow.

Installation and Verification

• Seat the board firmly and evenly. The edge connector on the 51305896-100 is a 96-pin DIN 41612 format — it requires deliberate, even pressure. A partially seated board will pass visual inspection and fail under vibration.
• After insertion, allow 60–90 seconds for the node to complete its power-on self-test and re-enumerate on the LCN. Do not cycle power or force a system restart during this window. The initialization sequence is time-dependent.
• Monitor the node status display on the Universal Station. All nodes on the segment should return to green within 2 minutes of successful board initialization. If a node remains amber after 3 minutes, check the DIP switch configuration against your pre-removal photograph.
• Run a 30-minute communication stability check before returning the segment to automatic control. Pull the CRC error counter from the diagnostics screen and establish a new baseline. If errors resume within the first hour, the fault source is upstream of the board — cable shield continuity and termination resistance are the next items to check.

Reliability in Harsh Conditions

The TDC 3000 was not designed for a server room. It was designed for a refinery control building in Saudi Arabia, a chemical complex in the Rhine Valley, and a paper mill in northern Canada — environments where ambient temperature swings 30 degrees between day and night, where the air carries hydrogen sulfide or paper pulp dust, and where the floor vibrates at 12 Hz from the compressors running next door.

The 51305896-100 reflects that design intent. The PCB substrate is rated across the full 0–60 °C operating range without derating. Conformal coating on the board’s signal layers provides a barrier against condensation and airborne chemical contaminants — a real concern in coastal installations and chemical processing environments where humidity and corrosive vapors coexist.

Through-hole construction on the critical LCN signal path components is a deliberate choice. Surface-mount solder joints fail under sustained vibration through fatigue cracking at the pad interface. Through-hole joints distribute mechanical stress through the barrel and into the PCB substrate — a fundamentally more robust construction for rotating equipment environments and installations near large motors or compressors.

Every unit dispatched from our Xiamen warehouse passes a structured pre-shipment test sequence: power-on self-test verification, serial loopback communication check at rated speed, edge connector inspection under 10x magnification, and visual examination for micro-cracks, lifted pads, or corrosion. Refurbished units additionally receive ultrasonic PCB cleaning, capacitor ESR testing, and contact re-plating where required. The 90-day functional warranty is the output of that process — not a marketing claim.

Storage conditions matter for long-term reliability. Our warehouse maintains temperature at 18–24 °C and relative humidity below 50% RH year-round. Boards held in long-term stock are sealed in nitrogen-purged ESD bags to prevent oxide formation on the edge connector contacts. When the 51305896-100 arrives at your facility, the connector should be clean and bright. If it is not, that is a quality failure on our end and we want to hear about it immediately.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport — one of South China’s primary air cargo hubs with daily freighter connections to Frankfurt, Dubai, Chicago O’Hare, Singapore Changi, and Sydney. That geography was chosen deliberately. Industrial spare parts buyers in production-down situations cannot wait for a slow boat from a distribution center that is three time zones away from its own airport.

How the Dispatch Process Works:

• Order Confirmed Before 15:00 CST: The board is pulled from stock, tested, packed in anti-static foam with ESD bag, and handed to DHL Express or FedEx International Priority the same afternoon. No exceptions, no “we’ll try.”
• Export Documentation: Commercial invoice, packing list, and Certificate of Origin are prepared in parallel with packing. HS Code 8537.10 applies to DCS communication modules in most jurisdictions. For destinations requiring specific export documentation or commodity classifications, our logistics team handles it — you do not need to manage this.
• AWB Tracking: Airway bill number is sent to your procurement contact within 2 hours of carrier pickup. Real-time tracking link included. You will know exactly where the board is at every point in transit.
• Transit Times (Air Express): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days.
• Customs Clearance: We provide the full documentation set required for import clearance in all major industrial markets. Our documentation is clean and correctly classified. Your customs broker will not be calling you with problems at 06:00 on a Monday.
• Emergency Next-Flight-Out: For genuine production-down situations where standard express is not fast enough, contact us via WhatsApp. We can arrange next-flight-out courier coordination in real time. This is not a standard service — it is a capability we maintain for the situations where it matters.

We have shipped Honeywell TDC 3000 spare parts to refineries in Saudi Arabia, chemical complexes in Germany, power stations in India, LNG terminals in Qatar, and pulp mills in Canada. The logistics process is proven. The documentation is clean. The parts arrive on time.
