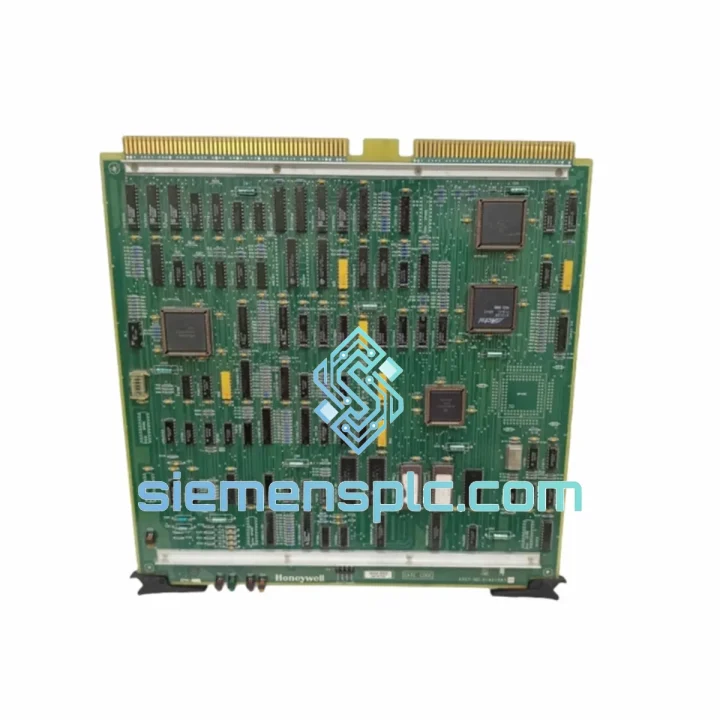

Honeywell 51401583-100 DCS Processor Board – TDC 3000

Honeywell 51401583-100 DCS Processor Board – Core Controller Module for TDC 3000 Distributed Control Systems

The Honeywell 51401583-100 is a processor/controller board engineered for deployment within Honeywell’s TDC 3000 and TotalPlant Alcont distributed control system (DCS) architectures. In a DCS topology, the processor board occupies the apex of the field-to-control hierarchy: it arbitrates all scan-cycle execution, manages the deterministic data exchange across the proprietary backplane bus, and maintains the real-time process database that downstream operator stations and historian servers depend upon. The 51401583-100 revision specifically targets the -100 hardware baseline, meaning its firmware image, EEPROM configuration map, and inter-module handshake protocol are aligned to the original TDC 3000 rack specification without requiring migration scripts or hardware adapters.

Unlike generic embedded controllers, this board was designed from the ground up for continuous 24/7 process environments — refineries, power generation facilities, pharmaceutical batch reactors, and pulp-and-paper mills — where a single scan-cycle overrun or unhandled interrupt can cascade into a process trip. Its internal watchdog timer architecture enforces a hard deadline on task execution; if the primary processor thread fails to reset the watchdog within the configured interval, the board asserts a controlled fault state and signals the redundancy manager to initiate a bumpless transfer to the standby controller. This deterministic fault-response mechanism is what separates purpose-built DCS hardware from COTS computing platforms adapted for industrial use.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 51401583-100 board architecture reflects the design philosophy of late-generation TDC 3000 hardware: determinism over raw throughput, fault isolation over fault tolerance through software alone.

Backplane Bus Arbitration: The board interfaces with the TDC 3000 backplane via a dedicated bus arbitration circuit that implements a token-passing protocol. Each module in the rack holds the bus token for a fixed time slice before passing it to the next node. This eliminates bus contention entirely — a critical property in process control where a delayed I/O read can corrupt a PID calculation mid-execution. The arbitration logic is implemented in discrete gate-array hardware rather than firmware, meaning it cannot be disrupted by a software fault on the processor itself.

EMC and Signal Integrity: The PCB layout employs a multi-layer stackup with dedicated ground planes separating the digital logic layers from the analog signal conditioning layers. Decoupling capacitors are placed at each power rail entry point on the board, suppressing high-frequency transients that would otherwise couple into the processor’s address and data buses. The board’s edge connector uses a gold-plated contact finish to maintain low-resistance mating across thousands of insertion cycles — a detail that matters in maintenance environments where boards are swapped during planned shutdowns.

Fault Isolation Architecture: Each functional block on the board — processor core, memory subsystem, backplane interface, and communication controller — is powered through individual fused rails. A fault in the communication controller, for example, does not collapse the processor core’s supply voltage. This partitioned power architecture allows the board’s self-diagnostic firmware to identify the failed subsystem and report it via the backplane status register before asserting a board-level fault, giving the operator station a precise fault code rather than a generic hardware alarm.

Memory Subsystem: The board uses battery-backed SRAM for the real-time process database and configuration parameters. The battery circuit includes a low-voltage detection comparator that writes a dirty-flag to a protected register before the supply drops below the SRAM retention threshold, ensuring the redundancy manager can distinguish between a clean shutdown and an uncontrolled power loss when evaluating whether to accept the board’s stored state on restart.

System Integration Benefits

• Zero-configuration slot replacement: The -100 revision matches the original hardware baseline, allowing direct slot substitution without firmware re-flashing or configuration file migration — critical for minimizing planned outage duration.
• Deterministic scan-cycle execution: Hardware watchdog enforcement guarantees that the control loop execution period does not drift under high-load conditions, preserving PID tuning parameters calibrated to a fixed scan rate.
• Bumpless redundancy transfer: When paired with a redundancy manager module, the board participates in a synchronized hot-standby pair. Switchover occurs within one scan cycle, with no process variable discontinuity visible to the control algorithm.
• Granular fault diagnostics: Partitioned power rails and per-subsystem status registers allow the operator station to display a specific fault location (e.g., “communication controller fault”) rather than requiring a board swap to diagnose an ambiguous hardware alarm.
• Battery-backed state retention: SRAM retention across power cycles eliminates the need to re-download the control strategy from the engineering workstation after an unplanned power interruption, reducing restart time in emergency scenarios.
• EMC-hardened signal paths: Multi-layer PCB ground planes and rail-level decoupling suppress conducted and radiated interference from adjacent variable-frequency drives, contactors, and high-current bus bars common in process plant electrical environments.
• Long-term spare parts availability: The -100 revision remains the most widely stocked hardware baseline for TDC 3000 systems still in active service, ensuring procurement teams can source verified replacements without accepting untested cross-revision substitutes.
• Audit-compliant part traceability: Original Honeywell part number and revision suffix simplify maintenance record-keeping for ISO 9001, FDA 21 CFR Part 11, and IEC 61511 functional safety audit trails.
• Reduced commissioning risk: Like-for-like replacement eliminates the need for loop checkout, re-tuning, or factory acceptance testing that would be required when substituting a different revision or alternative manufacturer’s board.

Quality Assurance & Global Logistics

Every Honeywell 51401583-100 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Boards are powered on a Honeywell-compatible test bench and exercised through a full self-diagnostic cycle, verifying backplane communication, memory integrity, and watchdog timer function before packaging. New surplus units are shipped in original Honeywell anti-static packaging where available; refurbished units are repackaged in ESD-shielded bags with foam-lined cartons rated for international air freight handling.

Xiamen’s geographic position — direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for most orders placed before 15:00 CST. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. Sea freight consolidation is available for bulk spare-parts orders where air freight cost is prohibitive.

All shipments include a commercial invoice with accurate HS code classification (8537.10 for programmable controller boards), a packing list, and a certificate of conformance. Export documentation for dual-use goods is prepared in compliance with Chinese export control regulations and the destination country’s import requirements. Customers in regulated industries (pharmaceutical, nuclear, defense-adjacent) can request additional traceability documentation including board serial numbers, test bench reports, and photographic inspection records.
