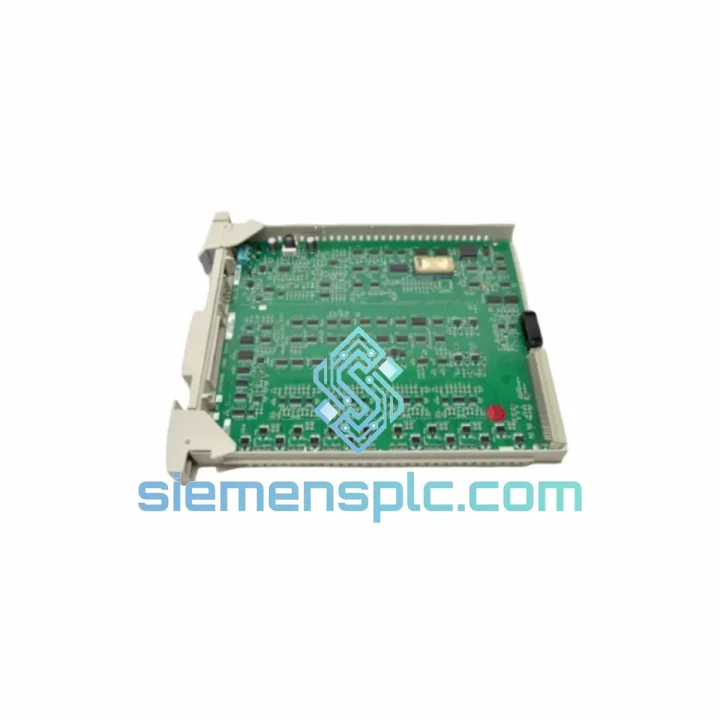

Honeywell 51403645-100 TP-ZSBHM2-100 Safety Manager Module

Honeywell 51403645-100 / TP-ZSBHM2-100 — Stop the Clock on Your Unplanned Shutdown

Every minute a safety instrumented system sits in forced shutdown, the losses compound — lost throughput, emergency labor, regulatory scrutiny, and the very real risk of a delayed restart audit. The Honeywell 51403645-100 / TP-ZSBHM2-100 Safety Manager module is the exact card that stands between your process and that scenario. We stock it. We ship it today from Xiamen. No broker delays, no grey-market guesswork.

This module is the backbone communication and safety bus handler within Honeywell’s TotalPlant Solution (TPS) Safety Manager architecture — a platform still running live in hundreds of refineries, LNG terminals, and chemical complexes worldwide. When it fails, there is no workaround. You need the card, and you need it fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The TP-ZSBHM2-100 is the Safety Highway Manager card — it handles the high-speed safety bus communication between the Safety Manager controller and the I/O modules. When this card degrades or fails, the symptoms are rarely a clean hard fault. Here is what field experience actually looks like:

Common Failure Signatures:

• Intermittent SBUS communication faults — The SM controller logs sporadic “Safety Bus Timeout” or “SBUS Redundancy Mismatch” alarms. These often appear during high-process-load periods or after a power transient. Engineers frequently chase the I/O modules first — wrong call. Start with the highway manager card.
• Redundancy switchover failures — In a dual-redundant SM configuration, if the primary controller switches to secondary but the secondary fails to take control cleanly, the TP-ZSBHM2-100 on the primary chassis is the first suspect. Check the card’s LED status: a solid amber on the SBUS indicator with no green heartbeat is a dead giveaway.
• Firmware mismatch after controller upgrade — If the SM controller firmware was updated but the highway manager card was not reflashed to a compatible revision, you will see “Module Version Incompatible” faults in the SM diagnostics. Always cross-check the card firmware revision against the SM controller release notes before hot-swapping.
• Partial I/O dropout on one safety loop — Not all I/O modules going offline simultaneously, but a specific subset tied to one safety bus segment. This points directly to the highway manager card losing one of its dual-port bus interfaces.

Replacement Procedure — Field Checklist:

• ☐ Confirm the SM system is in a safe state or bypass mode per your site MOC (Management of Change) procedure before pulling the card. Never hot-swap a safety module without authorization.
• ☐ Document the current card firmware revision from the SM diagnostics screen before removal — you will need this to match or upgrade the replacement.
• ☐ The TP-ZSBHM2-100 does not have user-configurable DIP switches. Configuration is held in the SM controller database and downloaded automatically on card insertion — but only if the firmware revision is compatible. Verify first.
• ☐ After insertion, allow 90–120 seconds for the card to complete its self-test and synchronize with the safety bus before declaring it healthy. Do not force a manual restart during this window.
• ☐ Confirm both SBUS LEDs (primary and secondary bus) show solid green before releasing the system from bypass. A single green with one amber indicates a bus wiring issue, not a card fault.
• ☐ Log the replacement in your SIS maintenance record with the new card serial number and firmware version. This is mandatory for SIL certification audit trails.

Note on Addressing: Unlike some older TPS I/O cards that required manual slot addressing via rotary switches, the TP-ZSBHM2-100 uses automatic slot recognition from the chassis backplane. No address configuration is required on the card itself — the SM controller assigns the module identity during the download sequence.

Reliability in Harsh Conditions

Safety Manager installations do not live in air-conditioned server rooms. They live in pressurized control buildings adjacent to crackers, in offshore platform control rooms with constant vibration, and in desert facilities where ambient temperatures swing 40°C between day and night. The 51403645-100 was designed for exactly these environments.

Honeywell’s TPS Safety Manager hardware undergoes qualification testing that covers continuous vibration profiles matching IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), ensuring the card’s solder joints, connector pins, and onboard components maintain integrity under the mechanical stress of rotating machinery nearby. The card’s conformal coating on the PCB provides a barrier against humidity ingress — critical in coastal and tropical installations where relative humidity regularly exceeds 85% RH.

Thermal cycling is the silent killer of aging DCS hardware. The TP-ZSBHM2-100’s components are rated for the full industrial temperature range, and the card’s power regulation circuitry is designed to handle the voltage transients common in facilities with large motor starts on shared power buses. Units we ship from our Xiamen warehouse are stored in climate-controlled conditions and inspected for any signs of thermal stress or electrolytic capacitor degradation before dispatch.

Every refurbished unit in our inventory goes through a 48-hour burn-in cycle under load before it is cleared for shipment. Infant mortality failures — the ones that would kill your process on day three — are caught in our facility, not yours.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international cargo gateway with direct DHL Express and FedEx International Priority connections to every major industrial hub globally. Here is how the logistics chain works from the moment you confirm your order:

• Order Confirmed → Same Day: The module is pulled from climate-controlled storage, inspected, photographed, and packed in ESD-safe anti-static packaging inside a double-walled export carton with foam cushioning. Export documentation (commercial invoice, packing list, HS code declaration) is prepared in parallel.
• Day 1: Shipment handed to DHL Express or FedEx International Priority at Xiamen pickup. Tracking number issued to you within 2 hours of handover.
• Transit Times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days.
• Customs: We declare accurately and provide all supporting documentation to minimize customs hold risk. For destinations with known clearance complexity (Brazil, India, certain GCC states), we advise on import requirements upfront — no surprises at the border.
• Emergency Freight: For genuine plant-down situations, we can arrange next-flight-out courier options. Contact us directly on WhatsApp for real-time coordination.

We have shipped industrial automation spares to refineries in Saudi Arabia, chemical plants in Germany, power stations in India, and offshore platforms in Southeast Asia. The logistics process is not new to us — it is a core part of what we do.
