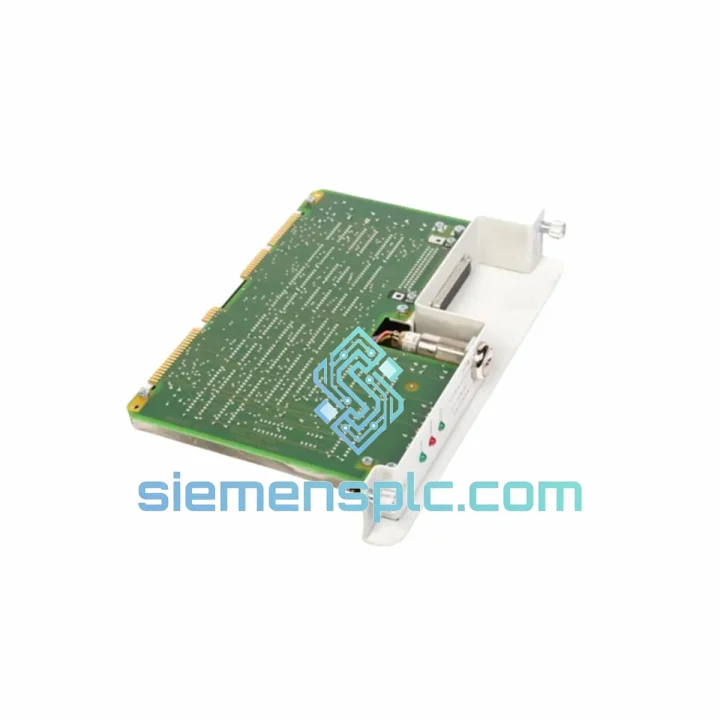

Honeywell 620-0088 PLC Communication Module – 620 Series

Honeywell 620-0088 Parallel Link Drive Module — Backbone of Distributed 620 Series Control Architecture

The Honeywell 620-0088 is a dedicated parallel link drive module engineered for the 620 Series Programmable Controller platform. Its primary function is to sustain deterministic, high-throughput data exchange across the parallel backplane between the central processor rack and distributed I/O subsystems. In multi-rack 620 Series deployments — common in petrochemical, power generation, and continuous process industries — the 620-0088 acts as the physical and logical bridge that maintains scan-cycle coherence across geographically separated rack assemblies. Without a properly functioning parallel link driver, the processor loses visibility into remote I/O states, triggering fault conditions and forcing controlled shutdowns.

Unlike generic communication adapters, the 620-0088 is purpose-built for the 620 Series backplane protocol. It operates at the hardware layer, managing parallel bus arbitration, data framing, and signal drive levels that conform to Honeywell’s proprietary rack interconnect specification. This tight hardware-software co-design is what allows the module to deliver consistent sub-millisecond inter-rack update cycles — a performance characteristic that generic retrofit solutions cannot replicate.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 620-0088 implements a parallel bus driver architecture that interfaces directly with the 620 Series backplane at the TTL/CMOS signal level. The module’s output stage uses buffered tri-state drivers, which allow it to assert or release the parallel data bus without contention — a critical requirement in multi-master rack configurations where more than one module may attempt bus access within the same scan cycle.

Bus Arbitration Logic: The 620-0088 incorporates on-board arbitration circuitry that monitors bus request and grant signals from the processor module. This hardware handshake prevents data collision on the parallel link, ensuring that each inter-rack transfer completes atomically before the next is initiated. The arbitration latency is fixed in hardware, contributing to the deterministic timing behavior that process control applications require.

EMC Design: The module’s PCB layout follows a ground-plane segmentation strategy that isolates the high-frequency parallel bus signals from the lower-frequency control logic. Ferrite bead filtering is applied at the backplane connector interface to suppress common-mode noise ingress from adjacent power supply switching transients — a known interference source in densely populated industrial control panels. The front panel is bonded to chassis ground through a low-impedance path, providing a Faraday shield effect against radiated EMI from external sources such as variable frequency drives and high-current contactors operating in the same enclosure.

Signal Integrity: Parallel bus traces on the 620-0088 are length-matched to within ±0.5 ns of propagation delay, preventing skew-induced data corruption at the receiving end of the inter-rack cable. Termination resistors at the cable interface maintain characteristic impedance matching, reducing reflections that would otherwise cause setup and hold time violations at the destination rack’s input registers.

Thermal Management: The module’s power dissipation profile is managed through component selection — low-dropout regulators and CMOS logic families are used throughout to minimize self-heating. This allows the 620-0088 to operate continuously at the upper end of its rated temperature range without requiring forced-air cooling, a practical advantage in sealed enclosure installations.

System Integration Benefits

• Deterministic Inter-Rack Scan Synchronization: The 620-0088 maintains a fixed-latency parallel link that keeps remote I/O scan data aligned with the processor’s program scan cycle, eliminating the variable-delay artifacts that asynchronous serial links introduce into closed-loop control calculations.
• Zero-Configuration Backplane Plug-In: The module is recognized automatically by the 620 Series processor upon rack power-up. No software configuration or address DIP switch setting is required, reducing commissioning time and eliminating the risk of address conflicts during replacement.
• Transparent Fault Diagnostics: The 620-0088 drives status indicators that reflect link health in real time. A loss of parallel link synchronization is immediately flagged to the processor, which can then execute a pre-programmed fault response — such as transitioning outputs to a safe state — before the watchdog timer expires.
• Full Backward Compatibility with Legacy 620 Configurations: The module maintains electrical and protocol compatibility with all 620 Series rack generations, protecting capital investment in existing control system infrastructure and eliminating the need for system-wide upgrades when replacing a failed link driver.
• High Noise Immunity in Mixed-Signal Environments: The EMC design described above allows the 620-0088 to maintain error-free parallel link operation in environments where VFDs, motor starters, and high-current switching loads generate significant conducted and radiated interference — conditions that routinely degrade less robustly designed communication modules.
• Reduced Mean Time to Repair (MTTR): Because the 620-0088 is a direct form-fit-function replacement, a trained technician can swap a failed unit and restore parallel link operation within a single maintenance window, without requiring re-engineering of rack wiring or software reconfiguration.
• Support for Multi-Rack Distributed I/O Topologies: The module enables the 620 Series processor to address I/O points distributed across multiple remote racks, supporting large-scale process control architectures where I/O density requirements exceed the capacity of a single local rack.
• Long-Term Spare Parts Availability: siemensplc.com maintains verified stock of the 620-0088 to support facilities operating legacy 620 Series systems beyond the original manufacturer’s active production period, providing a reliable source for planned maintenance and emergency replacement scenarios.
