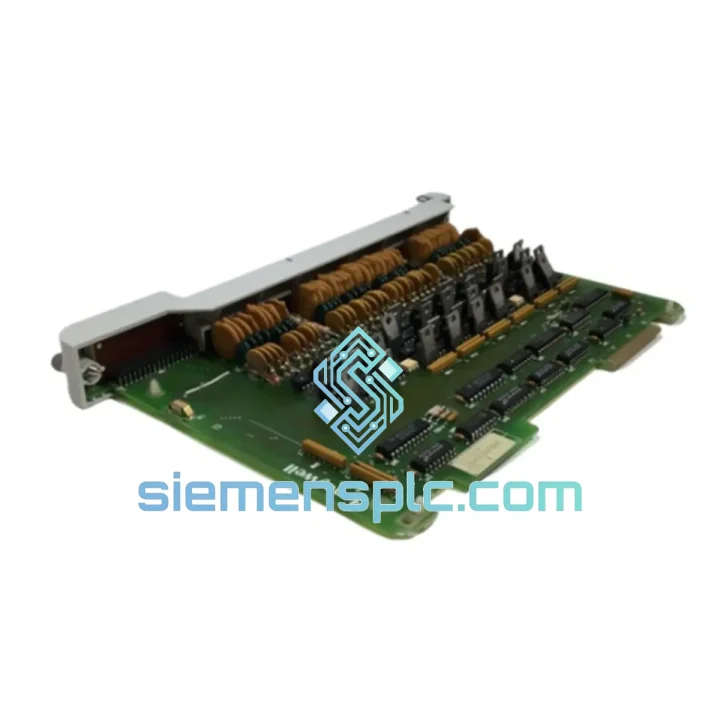

Honeywell 621-2200RC Output Module

Honeywell 621-2200RC: Stop the Bleed — Get Your Line Back Online Before the Next Shift

Every minute your process sits idle costs real money. A failed output module in a Honeywell 620 Series rack doesn’t just halt one machine — it can cascade into a full production stoppage, missed batch targets, and penalty clauses on delivery contracts. The 621-2200RC is a discrete output module that sits at the heart of your control rack, and when it fails, there is no workaround. You need an exact replacement, fast.

We stock the Honeywell 621-2200RC in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 15:00 CST typically leave our warehouse the same day. That means your replacement module can be on a plane tonight and on your bench within 24–72 hours, depending on your location. No waiting weeks for a factory order. No scrambling through grey-market channels with zero traceability. Just a verified, shelf-ready unit dispatched with full documentation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the 621-2200RC fails in predictable ways. Knowing the failure signature before you pull the module saves you from chasing phantom faults in the field wiring or the CPU.

Common Failure Signatures:

• Outputs stuck ON or OFF with no CPU fault: Internal triac or relay driver failure. The CPU sees the module as healthy because the backplane communication is intact, but the output driver stage is dead. Check with a clamp meter on the field terminal — if the CPU is commanding ON but you read zero voltage at the terminal, the output driver has failed. Replace the module.
• Intermittent outputs on one group of 8 points: The 621-2200RC groups outputs in banks of 8. A blown group fuse or a failed common driver IC will take out exactly half the points. Check the group fuse first (accessible without removing the module on some rack revisions). If the fuse is intact, the driver IC is gone — replace the module.
• Module LED shows FAULT on power-up: Usually a backplane seating issue or a slot address conflict. Power down the rack, reseat the module firmly, and power back up. If the fault persists, swap the module to an adjacent slot. If the fault follows the module, the module is defective. If the fault stays in the slot, you have a backplane pin issue.
• Erratic outputs during high-load switching: Capacitive coupling from adjacent high-current output modules can cause false triggering. Ensure the module is not seated directly adjacent to a high-current AC output module. Insert a blank filler plate between them if rack layout allows.

Replacement Procedure — Step by Step:

1. Place the CPU in STOP mode via the programming terminal or the keyswitch on the CPU module. Confirm all outputs de-energize before proceeding.
2. Document the slot position of the 621-2200RC. The 620 Series uses slot-based auto-addressing — the replacement module will inherit the same I/O address automatically when seated in the same slot. No software reconfiguration is required.
3. Disconnect field wiring from the terminal block. The 621-2200RC uses a removable terminal block — label each wire before removal or photograph the terminal layout.
4. Release the module locking tabs (top and bottom) and slide the module straight out of the rack. Do not rock or twist — the backplane connector is fragile.
5. Inspect the backplane connector pins in the rack slot for bent or corroded pins before inserting the replacement.
6. Seat the replacement 621-2200RC firmly until both locking tabs click. Reconnect the terminal block.
7. Power up the rack and observe the module status LED. Green = healthy. Return the CPU to RUN mode and verify all 16 output points via a forced I/O test from the programming terminal.
8. Log the replacement in your maintenance record with the date, slot number, and the serial number of the replacement unit.

No DIP switches, no firmware flashing, no address configuration required. The 620 Series rack handles all of this automatically at power-up. This is one of the fastest hot-swap-capable module replacements in the legacy PLC world — total swap time for an experienced technician is under 15 minutes.

Reliability in Harsh Conditions

The 621-2200RC was engineered for continuous-duty industrial environments, not climate-controlled server rooms. Honeywell designed the 620 Series for deployment in petrochemical plants, power generation facilities, and heavy manufacturing — environments where ambient temperatures swing, humidity condenses on enclosure walls, and vibration from nearby machinery is a constant background stress.

The module’s optical isolation barrier (rated 1500 VAC) protects the backplane logic from field-side voltage transients — a critical feature in plants where inductive loads like solenoids and motor starters share the same field wiring infrastructure. Without this isolation, a single inductive kick from a failed solenoid can propagate back through the output terminal and damage the backplane bus, turning a $400 module replacement into a $4,000 rack replacement.

The conformal coating applied to the PCB provides resistance to humidity and airborne contaminants — relevant in coastal facilities, food processing plants, and any environment where cleaning agents or process vapors are present. Units that have been stored correctly in sealed anti-static packaging retain their coating integrity and are functionally equivalent to freshly manufactured stock.

Vibration tolerance is achieved through a combination of the module’s rigid housing, the positive-locking backplane connector, and the removable terminal block design that eliminates stress on solder joints from field wiring tension. In high-vibration environments (compressor rooms, press lines), we recommend verifying that the locking tabs are fully engaged after installation and re-checking at the first scheduled maintenance interval.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to major global hubs.

Standard Express Routing:

• DHL Express Worldwide: Xiamen → Hong Kong hub → destination country. Transit time: 1–3 business days to most of Asia, Europe, and North America. Real-time tracking from pickup to delivery.
• FedEx International Priority: Xiamen → FedEx APAC hub → destination. Transit time: 2–4 business days. Preferred for shipments to the Americas and Middle East where FedEx has stronger last-mile coverage.
• Customs Documentation: Every shipment includes a commercial invoice, packing list, and HS Code classification (HS 8537.10 for PLC modules). For countries requiring additional import permits or end-user declarations, contact us before ordering so we can prepare the correct paperwork in advance.
• Cut-off Time: Orders confirmed with payment before 15:00 CST are processed for same-day dispatch. Orders received after cut-off ship the following business day.
• Tracking: AWB number provided via email within 2 hours of dispatch. You can track your shipment directly on the DHL or FedEx website using the provided number.

For plant shutdowns, turnaround maintenance windows, or emergency breakdowns where every hour counts, contact us directly on WhatsApp for real-time stock confirmation and priority dispatch coordination.
