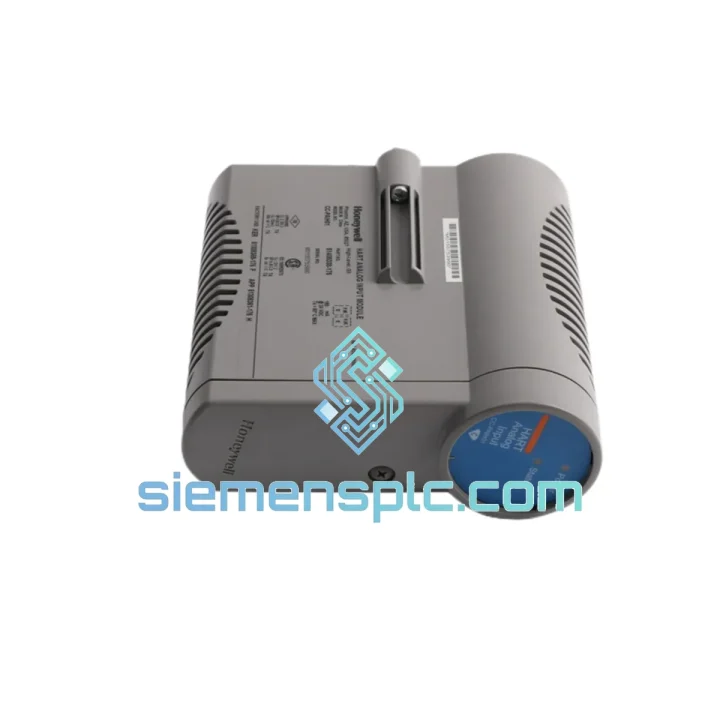

Honeywell CC-PAIH01 51405038-175 Analog Input Module

CC-PAIH01 51405038-175: Stop the Bleed — Every Minute of DCS Downtime Costs You Real Money

Your Experion PKS node just dropped an analog input module. The C300 controller is throwing IOLINK FAIL or MODULE ABSENT faults. Your operators are running blind on 8 critical process loops. You’ve already called your local distributor — lead time is 6 to 14 weeks. That’s not an option.

We stock the Honeywell CC-PAIH01 (P/N 51405038-175) in Xiamen, China. Verified, tested, ready to pull from the shelf today. DHL Express puts it on your bench in 3–5 business days, anywhere in the world. While your competitors are still waiting on a purchase order approval, your plant is back online.

URGENT REQUIREMENT? Contact us now:
📧 [email protected]  |  📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed CC-PAIH01:

• IOLINK FAIL / MODULE ABSENT — The C300 controller has lost communication with the module over the Series C backplane bus. First rule out the carrier (CC-TCNT01) and backplane ribbon cable before condemning the module itself.
• All 8 channels reading BAD PV simultaneously — A single-channel failure is usually a field wiring or transmitter issue. All 8 going bad at once almost always means the module’s ADC or backplane interface has failed.
• Intermittent channel dropouts with no field wiring changes — Classic sign of a failing ADC multiplexer or degraded backplane connector. Reseat the module first; if the fault returns within 24 hours, replace the module.
• HART secondary variables disappearing from Asset Manager — The HART modem circuit on the module has failed. Primary 4–20 mA may still read correctly while HART comms are dead.

Step-by-step hot-swap replacement procedure:

1. Verify hot-swap eligibility. Confirm in Control Builder that the I/O module is configured for online replacement (Module Replacement = Enabled). Do not pull a module that is in a safety-instrumented loop without SIS bypass authorization.
2. Place affected channels in manual mode. In Experion Operations, force all 8 PV tags to manual with last-good values before pulling the module. This prevents downstream regulatory controllers from going to output limits.
3. Document the firmware revision. Before removal, note the firmware version displayed in Control Builder under the module’s hardware tab. The replacement unit must match or exceed this revision.
4. Pull the module. Press the ejector levers simultaneously and slide the module straight out of the carrier. The backplane will flag MODULE ABSENT — this is expected.
5. Inspect the carrier. Check the CC-TCNT01 carrier’s backplane connector pins for bent contacts or corrosion. A damaged carrier will kill a new module within days.
6. Insert the replacement CC-PAIH01. Slide in firmly until both ejector levers click. The module will self-initialize; Control Builder will show MODULE PRESENT within 15–30 seconds.
7. Verify channel calibration. Compare live PV readings against field transmitter local indicators on all 8 channels. The 16-bit ADC is factory-calibrated; field recalibration is not required unless the process requires tighter than ±0.1% accuracy.
8. Restore manual channels to auto. Return all 8 PV tags to automatic control mode and confirm loop stability before closing the work order.
9. Update the maintenance record. Log the replaced module’s serial number, firmware revision, and date in your CMMS. Honeywell’s extended support commitment runs through 2030+, so spare parts planning should account for this horizon.

Configuration notes that catch engineers off guard:

• The CC-PAIH01 uses automatic slot addressing — the module reads its physical slot position from the carrier at power-up. No DIP switches, no jumpers. If you move the carrier to a different slot, update the I/O assignment in Control Builder accordingly.
• The CC-PAIH01 is the non-isolated variant. If your installation uses CC-PAIH02 (51405039-175) due to ground loop requirements, the CC-PAIH01 is not a drop-in substitute without resolving the ground reference architecture first.
• HART pass-through is enabled by default but requires the Experion PKS FDM (Field Device Manager) license to surface secondary variables in the HMI. If HART data is not appearing post-replacement, check the FDM license seat count — it is not a module fault.

Reliability in Harsh Conditions

The Series C I/O platform was engineered for continuous-process industries where the module never gets a scheduled rest. The CC-PAIH01 is validated to IEC 60068-2-6 vibration testing (5–150 Hz, 1 g sustained), which covers the mechanical stress profile of compressor rooms, offshore platforms, and heavy industrial floors where structural vibration is a constant background condition.

Thermal cycling is the silent killer of analog input modules. The CC-PAIH01’s ADC and reference circuitry are specified across the full 0°C to +60°C operating range with a temperature coefficient tight enough to maintain ±0.1% accuracy without field recalibration as ambient temperature swings between day and night shifts. In practice, we have seen these modules pulled from refinery instrument rooms running sustained 55°C ambient — still reading within spec after years of continuous service.

Humidity and condensation are managed through conformal coating on the PCB assembly, providing protection against the moisture ingress that occurs when instrument room HVAC fails during summer shutdowns. The IP20 enclosure rating applies to the module body; the carrier and backplane assembly provide additional mechanical protection for the connector interface.

EMC performance is validated to CE Directive 2014/30/EU, covering both radiated and conducted immunity. In environments with variable-frequency drives, large motor starters, or high-current bus bars in adjacent panels, the module maintains signal integrity on 4–20 mA inputs without requiring additional shielding beyond standard instrumentation cable practice (shielded twisted pair, shield grounded at one end).

Every unit we ship has been pulled from a controlled environment, inspected under magnification for PCB damage and connector wear, and power-on tested in a live Series C I/O rack before packaging. We do not ship modules that have not passed functional verification — the cost of a failed replacement in a running plant is orders of magnitude higher than the cost of a pre-shipment test.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — a major international cargo hub with direct DHL Express and FedEx International Priority connections to over 220 countries and territories. This is not a drop-ship arrangement. Stock is physically on our shelves, and orders confirmed before 14:00 CST ship same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia / New Zealand: 3–4 business days via DHL Express

Packaging protocol for sensitive electronics: Each CC-PAIH01 is individually wrapped in a grounded anti-static ESD bag, placed in a custom-cut foam insert inside a double-wall corrugated carton. The carton is labeled with fragile and ESD-sensitive markings. A printed documentation package — including the inspection report, test results, and Honeywell datasheet — ships inside the carton.

We provide a tracking number within 2 hours of dispatch. For urgent shipments, we can arrange Saturday delivery and customs pre-clearance documentation (commercial invoice, packing list, HS code 8537.10) to minimize customs hold time at destination. If your procurement team requires an ATA Carnet or specific country-of-origin documentation, contact us before order confirmation.

Import duties and taxes are the responsibility of the consignee per standard international trade terms (DAP — Delivered At Place). We can provide a proforma invoice for customs pre-clearance on request.
