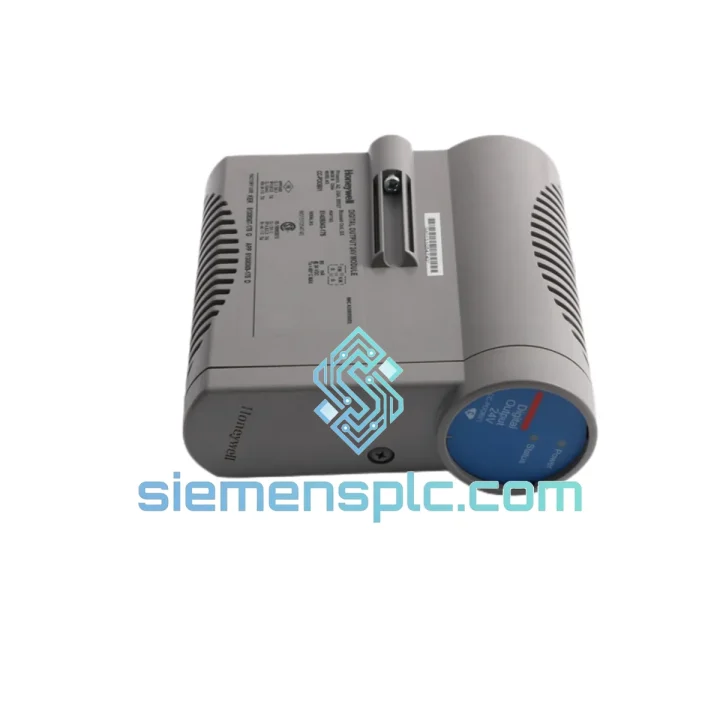

Honeywell CC-PDOB01 51405043-176 Digital Output Module – Experion PKS

Honeywell CC-PDOB01 51405043-176 — 16-Channel 24 VDC Digital Output Module for Experion PKS C300 Architecture

In distributed control system architecture, the digital output layer is the final enforcement point between a controller’s computed decision and a physical field device. Every solenoid valve, motor starter relay, and actuator coil depends on a DO channel that delivers a clean, verified 24 V DC signal within a deterministic time window. When that channel degrades — through contact wear, wiring fault, or firmware mismatch — the consequence propagates upstream: spurious trips, failed proof tests, and unplanned shutdowns that cost mid-scale process plants an average of USD 50,000 per incident.

The Honeywell CC-PDOB01, part number 51405043-176, is a 16-channel solid-state digital output module engineered exclusively for the Experion PKS C300 controller platform. Its architecture addresses the three failure modes that account for the majority of DO-related process interruptions: channel-level fault isolation, continuous open-load diagnostics, and hot-swap replacement without controller shutdown. Each of these capabilities is implemented at the hardware layer — not as a software workaround — which is why the module carries a published MTBF exceeding 500,000 hours under Honeywell’s reliability engineering program.

The module occupies a single slot in the C300 I/O chassis and communicates over Honeywell’s proprietary backplane bus. Field wiring terminates on a CC-TCNT01 or CC-TCNT11 terminal block that mates via a 40-pin connector, maintaining galvanic isolation between the control-side logic and the 24 V DC field loop. Output transistors are solid-state, eliminating the mechanical wear that limits relay-based DO modules to approximately 100,000 switching cycles. In high-cycle applications — conveyor sequencing, batch valve actuation, burner management — this distinction directly affects maintenance intervals and lifecycle cost.

On-board diagnostics run continuously at the channel level. The module monitors each output for open-load conditions (broken wire or disconnected actuator), short-circuit faults, and blown-fuse events. Fault status is reported to the Experion PKS alarm server in real time, enabling operators to identify and isolate a wiring fault before it escalates to a process deviation. This diagnostic transparency is a prerequisite for IEC 61511 SIL 2 proof-test documentation, where the ability to detect dangerous undetected failures within a defined interval is a quantitative requirement, not a design preference.

Hot-swap capability is implemented at the backplane level. When a module is extracted from a live C300 chassis, the controller maintains the last commanded state of all 16 channels and continues executing the associated control strategy. The replacement module is inserted, firmware is verified automatically against the controller’s configuration database, and channels are re-enabled — a procedure that typically completes in under ten minutes without interrupting the process. This architecture is directly aligned with ISA-84 proof-test procedures that require periodic validation of safety output channels without process shutdown.

The CC-PDOB01 operates across an ambient temperature range of 0 °C to +60 °C and a humidity envelope of 5–95 % RH non-condensing, covering the full range of indoor control-room and marshalling-cabinet environments encountered in oil and gas, refining, power generation, chemical, pharmaceutical, and water treatment facilities. The module’s conformal coating meets IEC 60068-2-60 mixed-gas corrosion resistance requirements, making it suitable for installations in H₂S-rich or chemically aggressive atmospheres where uncoated PCBs degrade within months.

From a system integration perspective, the CC-PDOB01 is backward-compatible with all current Experion PKS releases and all C300 chassis revisions. The 51405043-176 part number designates a specific hardware and firmware revision that Honeywell maintains in its compatibility matrix, ensuring that replacement modules sourced for DCS migration or spare-parts programs will interoperate with existing infrastructure without requiring controller firmware updates or engineering workstation reconfiguration.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CC-PDOB01’s output stage uses N-channel MOSFET transistors rather than electromechanical relays. This choice has measurable consequences for system behavior. MOSFET switching time is in the microsecond range, which means the 5 ms end-to-end latency figure is dominated by backplane communication and controller scan cycle — not by the output device itself. In burner management and emergency shutdown applications where IEC 61511 mandates a maximum response time from safety function demand to field-device actuation, this architecture provides substantial margin.

Each channel’s open-load detection circuit applies a low-level sense current to the output when the transistor is in the off state. If the field wiring is intact and the actuator coil is connected, the sense current returns a measurable voltage drop. If the wire is broken or the actuator is disconnected, the sense current finds no return path and the diagnostic register flags an open-load fault. This mechanism operates continuously — not only during scheduled proof tests — which means wiring degradation is detected between proof-test intervals, directly reducing the probability of dangerous undetected failure (PFD) in SIL-rated loops.

The module’s EMC design follows IEC 61000-4 series test requirements. The field-side output circuits are separated from the backplane logic by an isolation barrier rated to withstand 1,500 V AC for one minute, preventing ground loops and common-mode noise from industrial power equipment from coupling into the C300 controller’s logic domain. Transient suppression diodes on each output channel clamp inductive kickback from solenoid coils — a critical protection mechanism in valve-dense marshalling cabinets where multiple coils switch simultaneously and generate voltage spikes that can exceed 100 V on a 24 V DC bus.

The backplane communication protocol implements a watchdog mechanism: if the C300 controller fails to update the module’s output register within a configurable timeout window, the module drives all channels to a defined fail-safe state (de-energized by default, configurable per channel). This behavior is independent of the controller’s CPU state and is implemented in the module’s local firmware, ensuring that a controller fault does not leave field actuators in an indeterminate state — a requirement under IEC 61511 for safety instrumented system output modules.

System Integration Benefits

• Deterministic output latency under 5 ms — solid-state switching eliminates relay contact bounce and arc suppression delays, meeting IEC 61511 response-time requirements for SIL 2 emergency shutdown loops without additional timing margin.
• Continuous per-channel open-load diagnostics — wiring faults are detected between proof-test intervals, reducing PFD contribution from the DO layer and extending allowable proof-test intervals in SIL calculations.
• Hot-swap without process interruption — module replacement in a live C300 chassis completes in under 10 minutes; controller maintains channel state throughout, eliminating the need for a planned shutdown to replace a degraded module.
• Electronic short-circuit protection per channel — a shorted field device does not propagate to adjacent channels or trip the module; the affected channel is isolated and flagged while the remaining 15 channels continue operating normally.
• Inductive kickback suppression on every output — transient suppression diodes protect output transistors from solenoid coil back-EMF, extending module service life in valve-dense installations without requiring external surge protection on each channel.
• Configurable fail-safe state per channel — each output can be independently configured to de-energize or hold last state on controller communication loss, enabling application-specific fail-safe logic without external relay logic.
• Native Experion PKS alarm integration — all diagnostic events (open-load, short-circuit, module health) are reported directly to the Experion PKS alarm server with timestamp and channel address, eliminating the need for external diagnostic hardware or manual inspection rounds.
• IEC 60068-2-60 conformal coating — PCB protection against mixed-gas corrosion (H₂S, SO₂, Cl₂ environments) extends module service life in refinery and chemical plant marshalling cabinets where uncoated boards require replacement within 18–24 months.
• Backward compatibility across all C300 chassis revisions — the 51405043-176 revision integrates with existing Experion PKS infrastructure without firmware updates, reducing DCS migration and spare-parts program risk.
• SIL 2 FMEDA documentation available — Honeywell’s published failure mode and effects analysis data supports IEC 61511 loop calculations, reducing functional safety engineering effort and accelerating SIS validation documentation.

Quality Assurance & Global Logistics

Every CC-PDOB01 unit shipped from our Xiamen, China facility undergoes a structured four-stage verification process before dispatch. Visual and physical inspection confirms connector pin integrity, housing condition, label legibility, and revision marking against Honeywell’s published engineering drawings. Firmware revision is verified via Experion PKS engineering workstation to confirm the 51405043-176 designation and compatibility with current PKS releases. Functional bench testing exercises all 16 output channels at rated voltage and current, with short-circuit protection and open-load diagnostics confirmed active on each channel. Final packaging uses anti-static bags, foam-lined cartons, and desiccant packs, with outer labeling that includes part number, revision, serial number, and test date for full traceability.

Available documentation includes certificate of conformance (CoC), functional test report, original Honeywell datasheet, unit photographs, and full export documentation (commercial invoice, packing list, certificate of origin) for customs clearance in any destination country. Shipping is via DHL Express or FedEx International Priority for standard orders, with delivery to most global destinations in 3–7 business days. Sea freight consolidation is available for bulk orders. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
