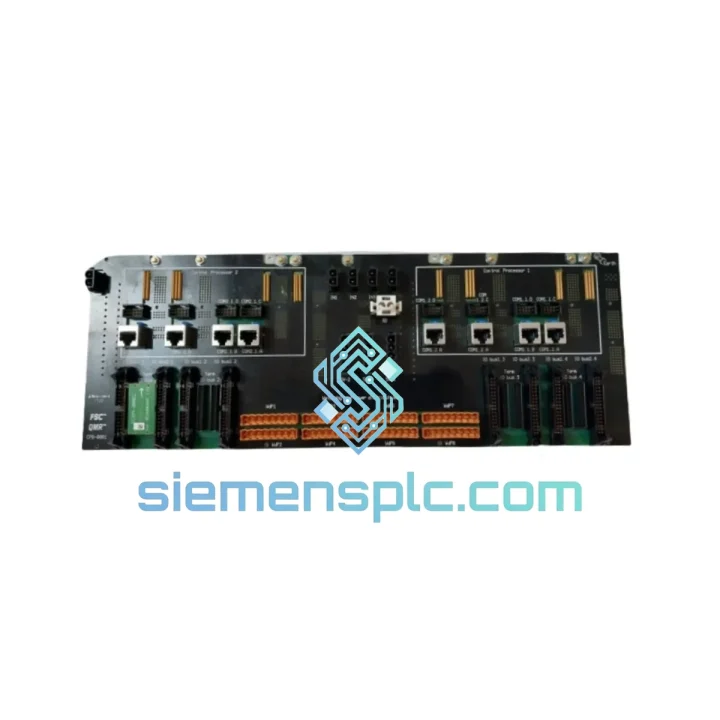

Honeywell FS-CPB-0001 Safety Manager Backplane

FS-CPB-0001 Backplane Down? Every Minute of SIS Downtime Costs You — We Ship Today

A failed Safety Manager backplane doesn’t just halt one loop — it takes your entire SIL 3 safety layer offline. Whether you’re staring at a tripped ESD system in a refinery, a dead F&G controller on an offshore platform, or a BMS that won’t come back online, the FS-CPB-0001 is the single point of failure you cannot afford to wait weeks for. We stock it in Xiamen. We ship it today via DHL Express or FedEx International Priority. Your plant gets back online — that’s the only metric that matters.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The FS-CPB-0001 is the structural spine of the Safety Manager chassis. When it fails, symptoms are rarely subtle — you’ll typically see one or more of the following before a hard shutdown:

• Fault Code SM-BPL-001 / SM-BPL-003: Backplane communication loss between CPU and I/O modules. Often misdiagnosed as a CPU fault. Pull the CPU first, reseat it, and if the fault persists across a cold restart, the backplane bus is the culprit.
• Intermittent I/O dropout on multiple channels simultaneously: If you’re losing inputs or outputs across non-adjacent cards at the same time, the backplane power rail or signal bus is degraded — not the individual I/O modules.
• SM platform fails to enter RUN mode after power cycle: The CPU initializes but cannot enumerate the I/O bus. This is a classic backplane connector oxidation or trace failure symptom, especially in high-humidity coastal installations.
• Redundancy switchover failure: In redundant SM configurations, if the standby CPU cannot take over cleanly, check the backplane inter-CPU communication path before replacing the standby CPU itself.

Replacement Procedure — Field Notes:

• Before pulling the backplane, export your SM configuration via Safety Builder and verify the project file is backed up. The backplane itself holds no configuration data, but this is non-negotiable protocol.
• Power down the entire SM chassis — do not attempt hot-swap on the backplane. This is not a hot-swappable component.
• Label every module position before removal. The FS-CPB-0001 slot assignments are physically fixed, but re-insertion errors under pressure are common.
• After installing the new backplane, perform a full I/O bus diagnostic from Safety Builder before attempting to bring the system to RUN. Do not skip this step even if the plant is screaming for restart.
• Check firmware compatibility: the SM CPU firmware version must match the backplane hardware revision. Mismatches between hardware revision A and B backplanes with newer CPU firmware have caused initialization failures in the field. Confirm the hardware revision label on the new unit matches your existing chassis documentation.
• Torque all module retention screws to spec — loose modules on a new backplane will generate intermittent faults within weeks in high-vibration environments.

Reliability in Harsh Conditions

The FS-CPB-0001 was engineered for environments where failure is not an option. Honeywell’s Safety Manager platform is deployed in some of the most demanding industrial sites on the planet — offshore platforms in the North Sea, petrochemical complexes in the Middle East, and LNG terminals in Southeast Asia. The backplane reflects that design philosophy.

The PCB substrate uses high-Tg laminate material rated for continuous operation at elevated ambient temperatures, maintaining signal integrity on the I/O bus even when cabinet temperatures climb during summer shutdowns or HVAC failures. Conformal coating on the board assembly provides protection against condensation and salt-laden air in coastal and offshore installations — a failure mode that kills uncoated boards within 18 months in those environments.

Vibration resistance is addressed through the module retention system and the backplane’s rigid chassis mounting points, which isolate the PCB from the mechanical stress transmitted by compressor skids, pump stations, and other rotating equipment nearby. Units sourced through our supply chain are inspected for connector pin integrity and PCB delamination before dispatch — two failure modes that appear only under vibration stress and are invisible to a basic visual check.

Every unit we ship has been stored in climate-controlled, ESD-safe conditions. We do not pull from open-shelf warehouse stock that has been exposed to humidity cycling. For a component that sits at the heart of a SIL 3 system, storage conditions matter as much as the original manufacturing quality.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a consolidation point; it is a dedicated industrial parts dispatch facility with same-day processing capability.

• DHL Express Worldwide: Transit times of 2–4 business days to most destinations in Europe, the Middle East, and Southeast Asia. 1–2 days to Hong Kong, Singapore, and South Korea.
• FedEx International Priority: Available for time-critical shipments to the Americas and Australia. Typical transit 3–5 business days door-to-door.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and ESD-safe packaging declaration provided with every shipment. Customs HS code pre-classified for smooth clearance.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds immediately.
• Emergency freight: For genuine plant-down situations, contact us directly on WhatsApp for after-hours coordination. We have handled weekend dispatches for refinery shutdowns — we understand what plant-down means.

If your procurement team requires a formal proforma invoice, we turn those around within 2 business hours of inquiry. We do not make you wait 48 hours for a quote when your plant is offline.
