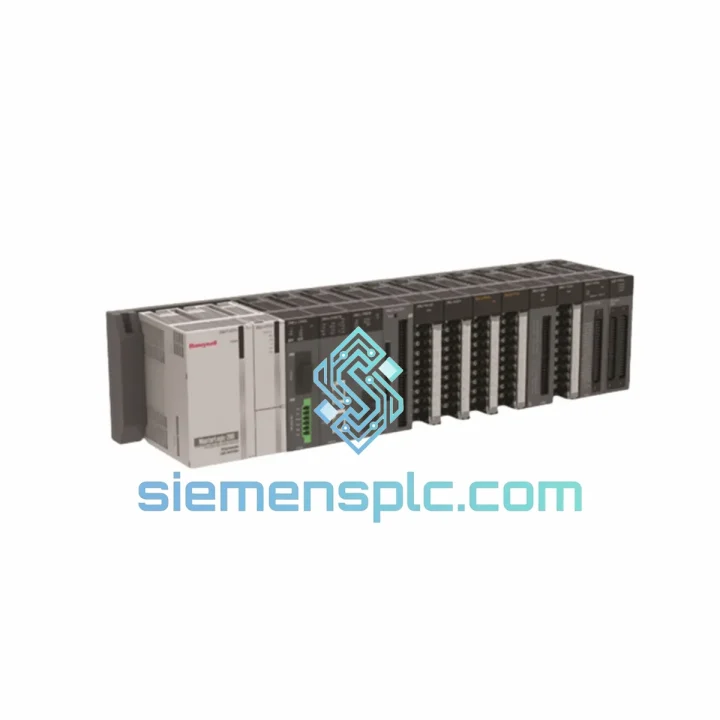

Honeywell FS-CPCHAS-0003 Safety PLC Module – Safety Manager FS Series

Honeywell FS-CPCHAS-0003 Safety Manager FS Control Processor Module — Procurement Strategy & Control Loop Architecture

The FS-CPCHAS-0003 is the central processing chassis assembly within Honeywell’s Safety Manager FS platform — a SIL 3-rated, IEC 61508-certified programmable safety system deployed across oil & gas, petrochemical, power generation, and offshore process industries. This module does not function as a peripheral; it is the arbitration core of the entire safety instrumented system (SIS), executing the safety application logic, managing I/O bus communication, and maintaining continuous self-diagnostic coverage across all connected field devices.

From a control loop perspective, the FS-CPCHAS-0003 occupies the highest tier of the safety architecture. It receives process variable data from field transmitters via certified I/O modules, evaluates that data against pre-configured safety logic (compiled in Honeywell Safety Builder), and issues deterministic output commands to final control elements — all within a bounded, verifiable scan cycle. The chassis-integrated design consolidates the processor, backplane interconnect, and power distribution into a single validated assembly, reducing inter-module wiring complexity and eliminating a class of potential single-point failures that arise in distributed processor architectures.

For procurement managers and reliability engineers sourcing replacement or expansion units, understanding the module’s role in the control hierarchy is essential. This is not a commodity I/O card — it is a certified safety function executor whose substitution requires documented change management under IEC 61511 MOC procedures. Availability, lead time, and provenance verification are therefore critical procurement parameters.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FS-CPCHAS-0003 chassis assembly integrates the processor board, backplane interconnect, and power conditioning into a mechanically unified structure. This design choice is deliberate: by eliminating the card-edge connector interface between processor and backplane that exists in modular rack systems, Honeywell reduces the impedance variability and contact resistance drift that can introduce timing jitter in high-frequency bus transactions. For a safety system where scan cycle determinism is a certified parameter, this matters.

Processor Redundancy and Voting Architecture: The Safety Manager FS platform supports 1oo2D (one-out-of-two with diagnostics) and 2oo3 (two-out-of-three) voting configurations. In 1oo2D mode, two processor channels execute identical logic in parallel; their outputs are compared on every scan cycle by an independent arbitration circuit. Any divergence between channels triggers a diagnostic alarm before a spurious trip or dangerous failure can propagate. The FS-CPCHAS-0003 chassis provides the physical housing and backplane routing for this dual-channel architecture, with galvanic isolation between channel power domains to prevent common-cause electrical failures.

EMC Design and Signal Integrity: Industrial process environments — particularly oil & gas facilities with variable-frequency drives, high-current motor starters, and RF-emitting field instruments — impose severe electromagnetic interference (EMI) conditions on control hardware. The FS-CPCHAS-0003 chassis incorporates multi-layer PCB ground planes, ferrite suppression on backplane signal lines, and a conductive chassis enclosure bonded to the system earth. These measures collectively attenuate conducted and radiated EMI to levels compliant with IEC 61000-4 series immunity standards, ensuring that processor clock signals and inter-module data transfers remain uncorrupted under field conditions.

Backplane Bus Architecture: The Safety Manager FS backplane operates as a deterministic, time-division multiplexed bus. Unlike Ethernet-based fieldbus architectures where message latency is probabilistic, the FS backplane assigns fixed time slots to each I/O module, guaranteeing that the processor receives all field data within a bounded window on every scan. This is a fundamental requirement for SIL 3 certification — the safety function response time (SFRT) must be calculable and verifiable, not statistically estimated.

Thermal Management: The chassis integrates passive thermal spreading structures that distribute heat from the processor board across the chassis body, reducing localized hot spots that accelerate electrolytic capacitor aging and solder joint fatigue. This design extends mean time between failures (MTBF) in ambient temperatures approaching the 60°C operating limit — a condition common in non-air-conditioned field enclosures in tropical or desert process facilities.

System Integration Benefits

• Deterministic Safety Response: Fixed-cycle backplane bus architecture guarantees calculable safety function response times, enabling SIL verification without probabilistic assumptions about communication latency.
• Unified Change Management: Chassis-integrated design means firmware and hardware revisions are co-validated by Honeywell, eliminating the compatibility matrix complexity that arises when processor and backplane are sourced as separate components.
• Continuous Self-Diagnostics: The module executes internal diagnostic routines on every scan cycle, covering RAM integrity, CPU clock accuracy, and backplane communication health — faults are annunciated to the engineering workstation before they affect safety function availability.
• Redundant Power Domain Isolation: Galvanic separation between processor channel power rails prevents a single power supply fault from simultaneously corrupting both voting channels, maintaining the independence required for SIL 3 architectural constraints.
• Hot-Standby Processor Switchover: In redundant configurations, the standby processor maintains a synchronized state image of the active processor’s memory. Switchover on active processor fault occurs within one scan cycle, with no interruption to safety output states.
• Integrated Diagnostic Transparency: Fault codes, channel health status, and communication error counters are accessible via the Safety Manager engineering interface without requiring physical access to the chassis — reducing diagnostic time during plant turnarounds.
• IEC 61511 MOC Compatibility: The module’s certified hardware revision documentation supports the Management of Change process required when replacing safety system components in operating plants, reducing the administrative burden on process safety engineers.
• Scalable I/O Expansion: The FS backplane architecture supports incremental I/O module addition without processor replacement, protecting the capital investment in the FS-CPCHAS-0003 chassis as process safety scope expands.
• Experion PKS Integration: Native gateway compatibility with Honeywell’s Experion PKS DCS platform enables unified alarm management and safety system status visibility from the control room SCADA layer, without third-party protocol conversion middleware.
• Long-Term Parts Availability: As a chassis-level assembly, the FS-CPCHAS-0003 is a long-lifecycle component. siemensplc.com maintains sourcing relationships across global industrial surplus and authorized distribution channels to support plants operating legacy Safety Manager FS installations beyond OEM active production periods.

Quality Assurance & Global Logistics

Every FS-CPCHAS-0003 unit supplied by siemensplc.com undergoes a structured pre-shipment verification protocol. Physical inspection confirms label authenticity, housing integrity, connector pin condition, and the absence of counterfeit indicators — including holographic label verification against known-genuine reference units. Where functional testing is applicable, modules are powered and queried for self-diagnostic response prior to packaging.

All units are shipped in anti-static, shock-absorbing packaging rated for international air freight handling. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. Multi-currency payment is supported: USD, EUR, CNY, and HKD via T/T bank transfer, with PayPal and credit card available for smaller orders.

Shipping from Xiamen, China: Xiamen Gaoqi International Airport and Xiamen Port together form one of South China’s primary logistics hubs, with direct cargo connections to major industrial centers in Europe, the Middle East, Southeast Asia, and the Americas. DHL Express, FedEx International Priority, and UPS Worldwide Express services from Xiamen typically deliver to Western Europe in 3–5 business days and to North America in 4–6 business days. For bulk or heavy shipments, sea freight via Xiamen Port offers cost-effective transit to major global ports with full container and LCL options. All shipments are tracked end-to-end, with proactive status updates provided to the buyer.

The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a replacement-first policy — a replacement unit is dispatched upon receipt and inspection of the returned item, minimizing plant downtime exposure during the claims process.
