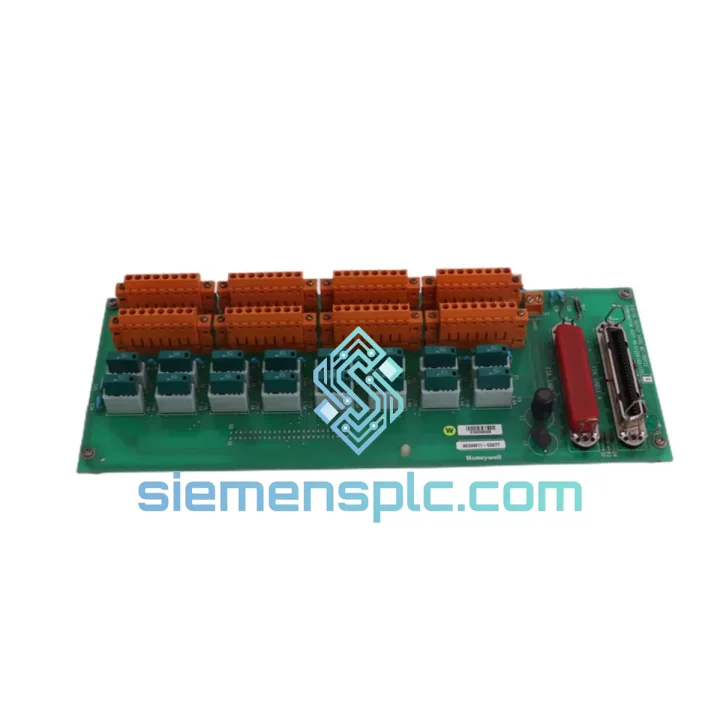

Honeywell MC-TDOY22 51204162-175 Digital Output HD Termination PCB

Honeywell MC-TDOY22 (51204162-175): Stop the Clock on Your Unplanned Shutdown

Every minute your Experion PKS or TDC 3000 system sits offline, the losses compound — lost throughput, idle crews, penalty clauses, and the pressure of a control room waiting on one board. The MC-TDOY22 (51204162-175) is the HD Digital Output Termination PCB that sits between your field wiring and your I/O processor card. When it fails, your discrete output loop goes dead. We stock it. We ship it today. From Xiamen to your plant gate via DHL or FedEx Express — that is the only timeline that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the MC-TDOY22 is the failed component — not the processor card:

Before you pull anything, check Experion Station for the fault code. A Channel Fault or Field Wiring Open diagnostic on a DO channel points to the termination PCB or field wiring — not the MC-PDOY22 processor card. A Module Failure or I/O Card Offline alarm points upstream to the processor. Swap the termination board first; it is the lower-cost, zero-configuration component.

Step-by-step hot-swap procedure (non-redundant loop — coordinate with operations before proceeding):

1. Notify the control room. Place the affected DO channels in manual or inhibit state at the DCS workstation to prevent spurious output commands during the swap.
2. De-energize the field supply to the affected carrier section if your plant safety procedure requires it. On 24 VDC DO loops, many sites permit live-carrier termination board swaps — confirm with your site electrical safety authority.
3. Photograph the existing field wiring termination layout before disconnecting a single wire. The MC-TDOY22 screw terminals are numbered; document the mapping against your loop drawings.
4. Loosen and remove field wiring from the screw terminals. Keep wires labeled — use terminal number tape if you do not have pre-labeled cables.
5. Release the termination PCB from the carrier by pressing the retention latch and sliding the board out. No tools required on standard HD I/O carriers.
6. Seat the replacement MC-TDOY22 firmly until the latch clicks. Verify the board is fully engaged — a partially seated termination board will cause intermittent channel faults that are difficult to diagnose.
7. Reconnect field wiring to the correct terminals per your loop drawings. Torque screw terminals to the specified value (typically 0.5–0.6 N·m for this terminal block type) — undertorqued terminals are a leading cause of intermittent DO faults in high-vibration environments.
8. Re-energize field supply. Return channels from manual/inhibit to automatic at the DCS workstation. Verify output state matches commanded state for each channel before leaving the cabinet.
9. Clear the fault in Experion Station and confirm no residual alarms on the replaced channels.

Common fault codes associated with MC-TDOY22 failure:

• DO Channel Fault / Field Wiring Open: Broken field wire, failed screw terminal contact, or degraded PCB trace on the termination board. Replace termination PCB and re-torque terminals.
• Output Stuck / No Field Response: Internal relay or solid-state switch on the termination PCB has failed open. Confirmed by commanding the output ON and measuring 0 VDC at the field terminals. Replace MC-TDOY22.
• Intermittent Channel Dropout: Typically caused by a partially seated termination board or undertorqued field terminal. Re-seat board and re-torque before condemning the PCB.
• Multiple Channel Failure on Same Board: Indicates a common-mode failure — check field supply voltage to the carrier. A sagging 24 VDC supply will cause multiple DO channels to drop simultaneously and is frequently misdiagnosed as a termination board failure.

Configuration notes — no firmware, no addressing: The MC-TDOY22 is a passive termination PCB. It carries no firmware, no DIP switches, and no node address. There is zero configuration required on the replacement board itself. All channel assignments, I/O tags, and output logic reside in the Experion PKS controller and are unaffected by the termination board swap. This is a straight mechanical replacement — the only risk is wiring error during reconnection.

Reliability in Harsh Conditions

Refinery DCS cabinets are not benign environments. Ambient temperatures swing with seasonal HVAC failures. Compressor stations generate continuous broadband vibration that works screw terminals loose over 18-month maintenance cycles. Coastal petrochemical plants push humidity and salt-laden air into every unsealed cabinet penetration. The MC-TDOY22 was qualified to IEC 60068-2 vibration and shock profiles, operates across a 0°C to +60°C ambient range, and tolerates 95% relative humidity without condensation. The screw-terminal field wiring interface — when properly torqued — maintains contact resistance within specification across thousands of thermal expansion cycles. The PCB substrate and conformal coating are selected for resistance to the airborne contaminants common in process plant environments: H₂S, SO₂, and chlorine-bearing atmospheres that accelerate copper trace corrosion on unprotected boards. Units in our stock are stored in anti-static packaging with desiccant, inspected for corrosion and mechanical damage before dispatch, and shipped with ESD protection intact. What arrives at your site is ready to install — not a board that has been sitting in an uncontrolled warehouse for three years.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures. Here is what the timeline looks like from the moment you confirm your order:

• Order confirmed before 14:00 CST: Same-day dispatch. Export documentation — commercial invoice, packing list, HS code declaration — prepared in parallel with packaging.
• DHL Express / FedEx IP transit times: Southeast Asia 1–2 days. Middle East, India 2–3 days. Europe 3–4 days. North America 3–5 days. These are door-to-door estimates under normal customs clearance conditions.
• Customs documentation: We provide a correctly classified commercial invoice (HS code 8537.10 for industrial control modules) with accurate declared value. Misdeclared shipments get held. Ours do not.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement or maintenance contact.
• Emergency freight: For genuine plant-down situations, contact us via WhatsApp for same-day courier booking confirmation and priority handling. We have shipped to operating refineries in the Middle East with 36-hour door-to-door delivery. It is possible. Tell us your deadline.
