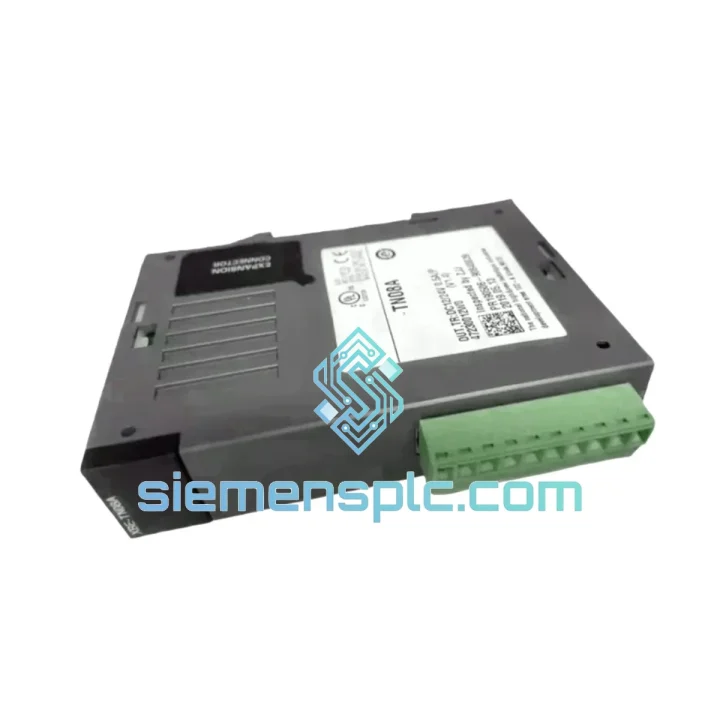

Honeywell MLETN08A DCS Digital Output Module – TDC 3000 Series

Honeywell MLETN08A 8-Channel Digital Output Module — Discrete Control Interface for TDC 3000 Distributed Control Systems

The MLETN08A is an 8-channel discrete output module engineered for the Honeywell TDC 3000 Distributed Control System platform. Within a TDC 3000 architecture, this module occupies a dedicated slot in the High-Performance Process Manager (HPM) card cage and interfaces directly with the Local Control Network (LCN) backplane. Its primary function is to translate digital command signals from the process manager into discrete 24 VDC switching outputs, driving field devices such as solenoid valves, motor starters, relay coils, and indicator lamps. Each of the eight output channels operates independently, with individual channel addressing managed through the HPM’s I/O link protocol, allowing the process manager to assert, de-assert, or read-back the state of each output point at scan rates consistent with the HPM’s configured execution period — typically 100 ms to 500 ms depending on the control strategy.

The module’s backplane connector provides both power and communication through a single 96-pin DIN 41612 interface. Power is drawn from the card cage’s regulated 24 VDC bus, and the LCN data path is carried over the HPM’s proprietary serial I/O link. The MLETN08A does not require external field power wiring to the backplane; field-side 24 VDC is supplied through the module’s field termination assembly (FTA), which connects via a dedicated cable to the marshalling cabinet. This architecture cleanly separates the control-side logic from the field-side power domain, a deliberate design choice that simplifies fault isolation during maintenance.

Optocoupler isolation is implemented at each output channel. The isolation barrier between the LCN logic side and the field output side is rated at 1,500 VAC, providing protection against ground loops and transient voltage spikes originating from inductive field loads. When a solenoid valve de-energizes, the collapsing magnetic field generates a back-EMF spike; the MLETN08A’s output driver circuitry incorporates transient suppression diodes on each channel to clamp these spikes below the MOSFET gate threshold, preventing false state transitions on adjacent channels. This is particularly relevant in oil and gas applications where multiple solenoid-operated safety valves may switch simultaneously during an emergency shutdown sequence.

The module supports channel-level diagnostics accessible through the HPM’s Universal Station (US) or GUS (Global User Station) interface. Each output channel reports its commanded state versus its actual field-side state, enabling the control system to detect open-circuit field wiring, blown fuses in the FTA, or a welded relay contact — conditions that would otherwise be invisible to the process manager. This diagnostic transparency is a core requirement in SIL-rated safety instrumented systems where proof-test intervals must be documented and verified.

From a mechanical standpoint, the MLETN08A is a single-width, full-height card conforming to the TDC 3000 card cage form factor. The PCB uses a four-layer stackup with dedicated ground and power planes, which reduces radiated emissions and improves immunity to conducted interference on the backplane bus. The card edge connector is gold-plated to resist oxidation in humid industrial environments, and the PCB conformal coating provides additional protection against condensation and airborne contaminants in non-purged enclosures.

Availability: In stock at our Xiamen, China facility. Units are inspected, tested, and shipped with a 12-month warranty. Contact [email protected] or WhatsApp +86 18359268345 for real-time stock confirmation and pricing.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MLETN08A’s hardware architecture reflects the design philosophy of the TDC 3000 platform: deterministic execution, fault containment at the module boundary, and maintainability without process interruption.

Optocoupler Isolation Architecture: Each of the eight output channels uses a dedicated optocoupler device to cross the logic-to-field isolation barrier. The LED side of the optocoupler is driven by the HPM’s I/O link controller ASIC, which asserts a current-limited drive signal proportional to the commanded output state. The phototransistor side drives a MOSFET output stage that switches the field-side 24 VDC load. This two-stage topology ensures that a field-side fault — including a short circuit or a sustained overvoltage — cannot propagate back through the isolation barrier to corrupt the HPM’s logic bus or damage adjacent modules in the card cage.

EMC Design: The four-layer PCB stackup places the ground plane on layer 2 and the 24 VDC power plane on layer 3, sandwiching the signal layers (1 and 4) between low-impedance reference planes. This geometry minimizes the loop area of high-frequency switching currents, directly reducing radiated emissions in the 30 MHz – 1 GHz band. The card cage’s backplane provides a common chassis ground reference, and the MLETN08A’s PCB connects to this reference through a low-inductance ground stitch at the card edge connector. Ferrite beads are placed in series with the field-side power traces to attenuate conducted emissions from inductive switching transients before they reach the backplane bus.

Output Driver Fault Containment: Each MOSFET output driver includes a current-limiting resistor in the gate drive path and a thermal shutdown circuit. If a channel’s load draws sustained current above 500 mA — indicating a wiring fault or a failed field device — the thermal shutdown disables that channel’s driver without affecting the remaining seven channels. The HPM detects the channel’s failure to assert its commanded state through the diagnostic feedback path and generates a system alarm at the operator station within one scan cycle.

Hot-Swap Mechanical Design: The card cage slot includes a keying mechanism that prevents incorrect module insertion. The backplane connector sequence is designed so that the ground pins make contact before the power and signal pins during insertion, preventing transient voltage spikes on the logic bus during live card replacement — a critical feature in continuous-process industries where card cage power cannot be interrupted.

System Integration Benefits

• Deterministic Output Latency: The MLETN08A’s output update is synchronized to the HPM’s execution clock, ensuring that a control algorithm’s output command reaches the field device within one execution period — no asynchronous buffering or queuing that could introduce variable latency in time-critical sequences such as emergency shutdown initiation.
• Per-Channel Diagnostic Transparency: Commanded state versus actual field state is reported to the operator station on every scan, enabling maintenance teams to identify open-circuit field wiring, blown FTA fuses, or welded output contacts without removing the module from service or interrupting the process.
• Isolation-Preserved Ground Loop Immunity: The 1,500 VAC isolation barrier per channel eliminates ground loop currents between the control system’s logic ground and the field device’s power ground — a common source of spurious output transitions in large plants where multiple earthing points exist across the facility.
• Inductive Load Compatibility: Built-in TVS transient suppression on each output channel allows direct connection to solenoid valves, relay coils, and motor starter coils without external snubber circuits, reducing FTA wiring complexity and eliminating a common source of field-side component failure.
• Seamless HPM Integration: The module is natively addressed by the HPM’s I/O link controller with no additional configuration hardware. Point addresses are assigned through the HPM’s configuration database, and the module’s presence is automatically detected during HPM initialization — reducing commissioning time compared to third-party I/O solutions requiring separate gateway configuration.
• SIL Proof-Test Support: The per-channel diagnostic feedback path provides the data required to execute and document proof tests for SIL-rated output functions without requiring physical access to the field device. The operator station can log the commanded and actual state transitions with timestamps, satisfying IEC 61511 proof-test documentation requirements.
• Reduced Spare Parts Inventory Complexity: A single MLETN08A module covers eight discrete output points. In a typical HPM card cage with 15 I/O slots, a single spare module provides coverage for 8 field output points, reducing the number of spare part line items required in the plant’s MRO inventory compared to single-channel relay output modules.
• Long-Term Platform Continuity: The TDC 3000 platform has an installed base spanning multiple decades in refining, petrochemical, and power generation industries. Sourcing genuine MLETN08A modules from verified supply channels extends the operational life of existing TDC 3000 systems without requiring a full DCS migration — preserving the plant’s existing control strategy, operator training investment, and historian data continuity.

Quality Assurance & Global Logistics

Every MLETN08A unit supplied by siemensplc.com is a genuine Honeywell OEM component. We do not supply cloned, counterfeit, or unauthorized reproductions. Each unit undergoes a structured inspection protocol before shipment:

• Visual & Marking Verification: PCB, connector, label, and housing examined against OEM reference documentation. Counterfeit indicators — including incorrect font, label adhesive type, and PCB trace geometry — are checked against known-genuine reference units.
• Functional Bench Test: Where applicable, modules are powered in a compatible card cage and each output channel is exercised through its full on/off cycle. Channel diagnostic feedback is verified against expected response.
• ESD-Safe Packaging: Units are packed in anti-static bags, foam-lined cartons, and outer corrugated boxes rated for international air freight handling. Humidity indicator cards are included for long-transit shipments.
• 12-Month Warranty: All units carry a 12-month warranty from the date of shipment. DOA units are replaced or refunded within 30 days of receipt upon photographic confirmation.

Logistics from our Xiamen, China facility: DHL Express, FedEx International Priority, and UPS Worldwide Express are available for urgent plant-down scenarios. Standard international transit is 3–7 business days. Export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment for customs clearance. We ship to the USA, EU, Middle East, Southeast Asia, Australia, and South America.
