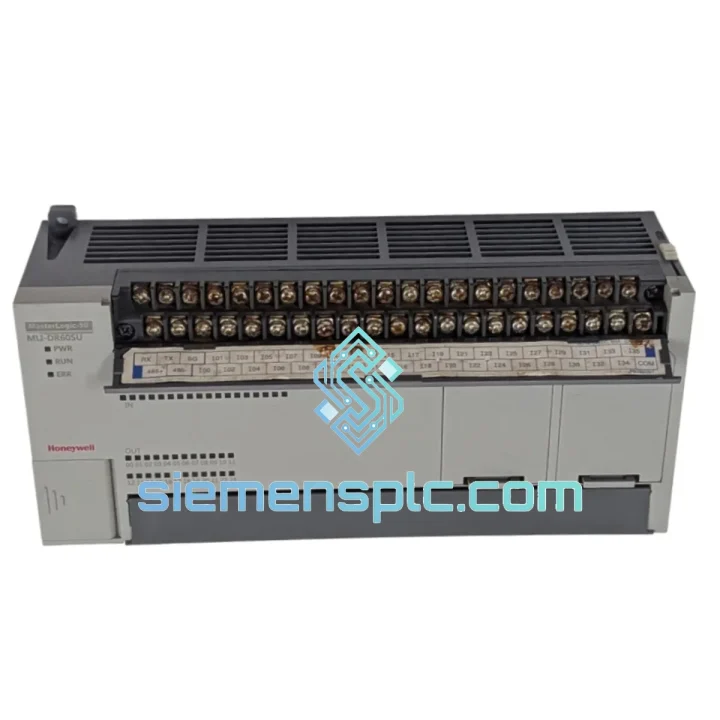

Honeywell MLI-DR60SU Digital I/O Module – MLI Series

Honeywell MLI-DR60SU: Discrete I/O Interface Module for MLI-Based Distributed Control Architectures

The Honeywell MLI-DR60SU is a discrete digital I/O module engineered for deployment within the Modular Logic Interface (MLI) subsystem of Honeywell’s TDC 3000 and TPS distributed control platforms. Its primary function is to serve as the physical boundary between field-level discrete signals and the controller’s logic execution layer — translating 24 VDC on/off field states into backplane-compatible digital data frames that the MLI processor can act upon within a deterministic scan cycle.

Unlike general-purpose relay output cards, the MLI-DR60SU is architected specifically for the MLI backplane bus protocol. Each channel’s signal path is routed through optocoupler isolation stages that maintain a minimum 1,500 V_rms galvanic barrier between field wiring and the logic side. This isolation topology prevents ground-loop currents, transient voltage spikes from inductive field devices (solenoids, motor contactors), and common-mode noise from propagating into the backplane data bus — a critical design requirement in process plants where cable runs may span hundreds of meters across electrically noisy environments.

The module occupies a single MLI chassis slot and draws its operating power from the backplane’s regulated 5 VDC rail, eliminating the need for a dedicated field-side power supply for the module logic itself. Field-side 24 VDC is sourced externally and applied to the terminal block, where it drives the optocoupler LED stages for input channels or powers the output driver transistors for output channels. This dual-rail architecture — logic power from backplane, field power from external 24 VDC — is a deliberate design choice that allows the module to remain powered and communicating with the controller even during field-side power interruptions, enabling the controller to log the power-loss event and execute the appropriate safe-state logic.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture: Each discrete input channel on the MLI-DR60SU uses a dedicated optocoupler device — typically a phototransistor-output type with a current transfer ratio (CTR) selected for stable operation across the full 18–30 VDC field voltage range. The LED drive current is set by a series resistor calculated to maintain the optocoupler in saturation at 18 VDC (worst-case low supply) while limiting dissipation at 30 VDC (worst-case high supply). This resistor-LED-phototransistor chain is the primary EMC defense mechanism: because there is no direct electrical path between field and logic, conducted interference on the field wiring cannot reach the backplane data lines.

Output Driver Stage: Digital output channels use solid-state driver transistors rather than mechanical relays, which eliminates contact bounce, arc erosion, and the mechanical wear-out failure mode associated with relay-based output modules. The transistor output stage is protected by a transient voltage suppressor (TVS) diode across the output terminals, clamping inductive kickback from solenoid coils to a safe level within nanoseconds of de-energization. This protection is essential in process plant environments where solenoid-operated valves are the dominant field load.

EMC Design Compliance: The module’s PCB layout follows Honeywell’s internal EMC design rules, which include ground plane segmentation between the field-side and logic-side circuits, ferrite bead filtering on the backplane data lines, and conformal coating on the PCB surface to resist moisture ingress and conductive contamination. These measures collectively allow the module to meet IEC 61000-4 series immunity requirements — including 4 kV contact discharge (ESD), 2 kV/1 kV fast transient burst (EFT), and 1 kV/2 kV surge immunity — without requiring additional external filtering in the field cabinet.

Backplane Bus Arbitration: The MLI backplane uses a time-division multiplexed (TDM) communication scheme in which each module slot is assigned a fixed time slot for data exchange with the MLI processor. The MLI-DR60SU’s onboard bus interface logic latches the current state of all I/O channels into a local register at the start of each scan cycle and presents this register to the backplane bus during its assigned slot. This deterministic slot-based arbitration ensures that I/O scan latency is bounded and predictable — a fundamental requirement for process control loops where excessive I/O latency can cause controller instability.

System Integration Benefits

• Deterministic I/O scan latency: The TDM backplane arbitration scheme guarantees a fixed, bounded scan time for each module slot, enabling the MLI processor to execute control algorithms with consistent timing — critical for fast-response interlock logic in safety-instrumented functions.
• Galvanic isolation eliminates ground loops: The 1,500 V_rms isolation barrier between field wiring and backplane prevents ground-loop currents from corrupting digital signal states, reducing nuisance trips caused by common-mode voltage differences between field devices and the control room ground reference.
• Solid-state outputs extend service life: Transistor-based output drivers have no mechanical wear-out mechanism, supporting millions of switching cycles without degradation — compared to the 100,000–500,000 cycle life typical of relay contacts in equivalent applications.
• Dual-rail power architecture supports fault logging: Because module logic power is sourced from the backplane independently of field 24 VDC, the controller can detect and log field power failures in real time, enabling maintenance teams to distinguish between field wiring faults and process upsets.
• Single-slot form factor maximizes chassis density: Occupying only one MLI chassis slot, the MLI-DR60SU allows engineers to maximize I/O point density within a given cabinet footprint — reducing panel space requirements and associated installation costs.
• Conformal-coated PCB resists harsh environments: The conformal coating applied to the module’s PCB provides resistance to humidity, condensation, and airborne conductive particulates — extending reliable service life in process plant environments where ambient conditions may not meet standard office-grade specifications.
• Direct backplane compatibility eliminates adapter hardware: As a native MLI-series module, the MLI-DR60SU connects directly to the MLI backplane without adapter cards, protocol converters, or firmware modifications — reducing integration complexity and potential failure points.
• Diagnostic transparency via controller status registers: The module’s bus interface logic supports channel-level status reporting to the MLI processor, allowing the controller’s HMI to display individual channel states, fault conditions, and communication errors — providing maintenance personnel with actionable diagnostic data without requiring physical access to the field cabinet.

Quality Assurance & Global Logistics

Every Honeywell MLI-DR60SU unit supplied through siemensplc.com is sourced exclusively from verified industrial supply channels with full traceability documentation. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of the PCB, connector pins, and label integrity; verification of the Honeywell part number and date code against the physical unit; and a functional power-on test where test equipment is available. Units are packed in anti-static bags, placed in foam-lined cartons, and sealed with tamper-evident tape to ensure they arrive in the same condition they left our facility.

Our logistics operation is based in Xiamen, China — a major international port city with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and SF International freight services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. For customers requiring expedited delivery, DHL Express typically achieves transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty is provided on all units from the date of shipment. Warranty coverage includes functional failure under normal operating conditions as specified in the Honeywell product datasheet. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility.
