Honeywell MU-TLPA02 51309204-125 Power Supply Module – TDC 3000

Honeywell MU-TLPA02 51309204-125 — Power Adapter Board in the TDC 3000 Control Architecture

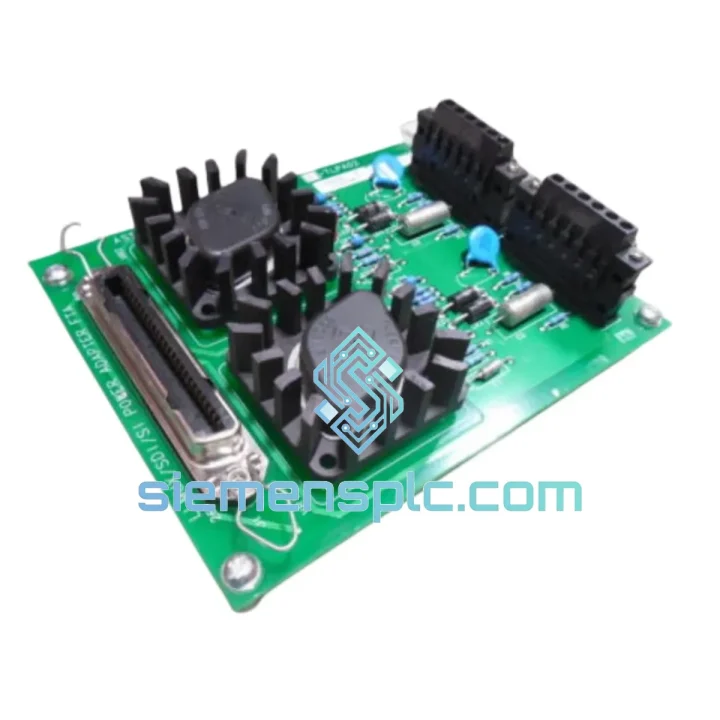

The MU-TLPA02 (reference P/N 51309204-125) is a dedicated power adapter board engineered for the Honeywell TDC 3000 distributed control system. Within the TDC 3000 card cage, this board occupies the power interface layer between the chassis backplane bus and the downstream I/O termination assemblies. Its primary function is to receive unregulated or semi-regulated DC input from the main power supply module, condition it through onboard filtering and regulation stages, and distribute stable voltage rails to adjacent control and communication cards. Without a properly functioning power adapter board, the entire card cage segment loses its regulated supply, causing cascading module faults across the affected node.

The TDC 3000 platform, deployed extensively in petroleum refining, ethylene production, power generation, and pulp-and-paper industries since the early 1980s, remains operational in hundreds of critical process facilities globally. Honeywell’s long-term support posture for this platform has shifted toward managed obsolescence, making verified surplus components such as the MU-TLPA02 the primary procurement path for maintenance engineers managing aging installations. Each unit available through siemensplc.com is sourced from documented plant decommissions or certified surplus channels and undergoes pre-shipment functional verification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MU-TLPA02 operates at the power distribution layer of the TDC 3000 card cage, a position that demands both electrical precision and mechanical reliability. Several hardware design characteristics define its performance envelope:

Galvanic Isolation Architecture: The board employs transformer-coupled isolation between the chassis backplane input and the regulated output rails. This topology prevents ground loop currents — a common failure mode in industrial environments where multiple earthing points exist across large process areas — from propagating into the logic supply of I/O and communication modules. The isolation barrier is rated to withstand transient overvoltages consistent with IEC 61000-4-5 surge immunity requirements.

Multi-Rail Linear Regulation: Downstream TDC 3000 modules require both digital (+5 VDC) and analog (±15 VDC) supply rails. The MU-TLPA02 generates these independently through discrete regulation stages, ensuring that load transients on the digital rail — caused by processor activity or communication bursts — do not induce ripple on the analog supply feeding signal conditioning circuits. Cross-rail isolation is maintained through separate filter networks on each output branch.

EMC Suppression Design: The PCB layout incorporates decoupling capacitor arrays at the input and output stages, with ferrite bead filtering on high-frequency noise paths. This passive EMC architecture suppresses conducted emissions in the 150 kHz–30 MHz band, consistent with the electromagnetic environment of heavy industrial facilities where variable-frequency drives, high-current switchgear, and RF equipment operate in proximity to control panels.

Thermal Management: Power dissipation in the regulation stages is managed through copper pour areas on the PCB and, where applicable, direct thermal contact with the card cage frame. The board is rated for continuous operation at ambient temperatures up to 60°C without derating, which accommodates the thermal conditions typical of enclosed control room cabinets in tropical or desert process plant environments.

Backplane Connector Integrity: The edge connector interface is designed for repeated insertion cycles consistent with maintenance schedules. Gold-plated contact fingers resist oxidation in humid or mildly corrosive atmospheres, maintaining low-resistance connections over the operational life of the installation.

System Integration Benefits

• Zero-modification replacement: The MU-TLPA02 is a direct form-fit-function substitute for the original OEM component. No firmware updates, jumper reconfiguration, or backplane wiring changes are required — the board seats into the existing card cage slot and resumes normal power distribution immediately upon system restart.
• Elimination of extended lead times: Honeywell’s managed obsolescence policy for TDC 3000 hardware means new OEM orders, where accepted, carry lead times of 12 to 26 weeks. Verified surplus stock from siemensplc.com ships within 1–3 business days, directly reducing unplanned downtime duration.
• Deterministic power delivery for real-time control loops: Stable, low-ripple voltage rails are a prerequisite for deterministic scan cycle execution in TDC 3000 controllers. Voltage sag or ripple on the +5 VDC rail can introduce jitter into the controller’s internal clock, degrading the timing accuracy of PID loop execution and process variable sampling.
• Diagnostic transparency preservation: TDC 3000 modules report power supply status through the system’s Universal Control Network (UCN) diagnostics. A correctly functioning MU-TLPA02 ensures that power fault flags remain clear, allowing operators and maintenance engineers to trust the diagnostic display as an accurate reflection of system health rather than chasing spurious power alarms.
• Reduced cascading fault risk: An under-voltage condition on the adapter board output does not simply cause the affected module to fail — it can trigger a cascade of module resets across the card cage segment, interrupting multiple control loops simultaneously. Replacing a degraded MU-TLPA02 proactively eliminates this failure vector before it propagates to process upsets.
• Compatibility across TDC 3000 node types: The MU-TLPA02 / 51309204-125 is applicable across multiple TDC 3000 node configurations including High-Performance Process Manager (HPPM) and Advanced Process Manager (APM) card cage assemblies, subject to chassis revision verification.
• ESD-safe handling and packaging: Each unit is shipped in anti-static packaging with foam cushioning and outer carton protection, preserving the integrity of CMOS and bipolar components on the PCB during transit — a critical consideration for boards that may be stored as spares before installation.
• Full traceability documentation: Shipments include commercial invoice, packing list, and functional test report. This documentation supports maintenance record requirements under ISO 55000 asset management frameworks and plant safety management systems.

Quality Assurance & Global Logistics

Every MU-TLPA02 unit listed on siemensplc.com is sourced exclusively from documented plant decommissions, certified surplus dealers, or verified OEM channels. The procurement chain is traceable to the original installation site where applicable. Prior to listing, each board undergoes a structured inspection and test protocol:

• Visual inspection of PCB for thermal damage, cracked solder joints, corroded traces, and connector wear
• Component-level check of electrolytic capacitors for bulging or leakage — a primary aging failure mode in power supply boards
• Bench power-up test with load simulation to verify output voltage regulation on all rails within ±2% of nominal
• Connector continuity verification across all backplane contact positions

Logistics operations are managed from Xiamen, China, a major international freight hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times are 3–5 business days to Europe and North America, 2–4 days to Southeast Asia and the Middle East. Export documentation — including commercial invoice, packing list, and HS code declaration — is prepared in compliance with Chinese customs regulations and destination country import requirements. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
