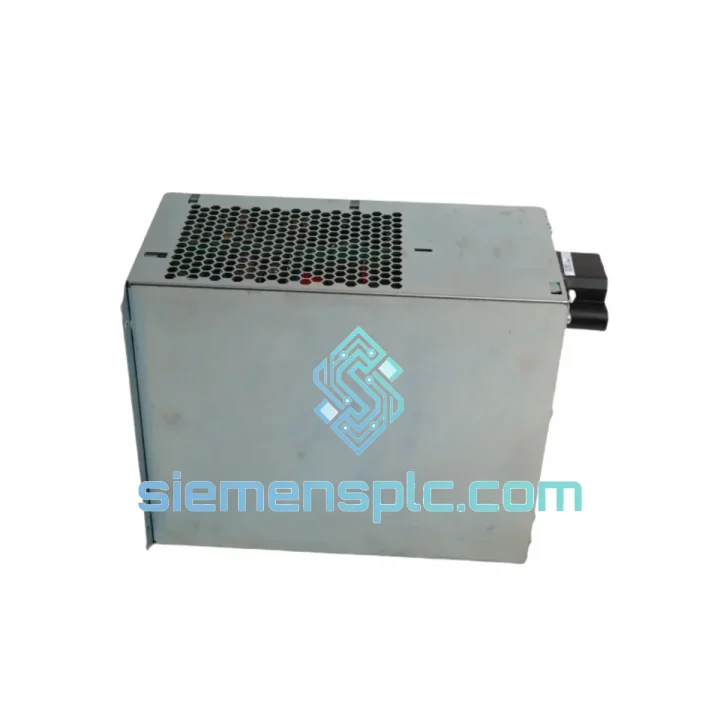

Honeywell SPS5785 51198651-100 DCS Power Supply

Honeywell SPS5785 (51198651-100) — Stop the Clock on Your DCS Downtime

Every minute a Honeywell TDC 3000 or Experion PKS cabinet sits dark because of a failed power supply is money leaving the plant. The SPS5785 — Honeywell part number 51198651-100 — is the backbone of the 5 VDC logic rail in these systems, and when it fails, nothing else in the cabinet matters. We keep verified stock of this module in Xiamen and can have a unit on a DHL Express pallet moving toward your site within hours of order confirmation. No waiting on OEM lead times. No sourcing gamble.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SPS5785 fails in predictable ways. Knowing the pattern cuts your diagnosis time from hours to minutes.

Most Common Failure Modes:

• Capacitor ESR drift: The most frequent cause of intermittent 5 VDC rail sag. Symptoms are random controller resets or spurious I/O faults that clear on power cycle. If your Experion PKS C200/C300 is throwing Controller Offline alarms that self-clear, suspect the PSU before the controller card.
• Inrush protection failure: Cabinet powers up but trips immediately under load. The NTC thermistor on the inrush limiter circuit degrades after repeated cold-start cycles in high-ambient environments. Symptom: breaker trips within 2–3 seconds of energizing.
• Output crowbar latch: PSU enters latched shutdown due to an overvoltage transient on the 24 VDC field rail — often triggered by a shorted field device. The module will not recover on its own. Removing the field wiring and cycling power confirms this fault. Replace the PSU and inspect field wiring before re-energizing.
• Fan bearing seizure (if fan-cooled variant): Thermal shutdown follows. Check the STATUS LED — solid amber with no output is the signature.

Replacement Procedure — Key Steps:

1. Document the revision label before pulling the failed unit. The revision suffix (Rev A, Rev B, etc.) must match your replacement to avoid firmware handshake issues with the cabinet backplane.
2. De-energize the cabinet at the upstream breaker. The SPS5785 does not support hot-swap in standard TDC 3000 configurations — confirm your cabinet’s redundancy status before assuming live removal is safe.
3. Check the backplane connector pins for carbon tracking or bent contacts. A failed PSU that went out hard can leave residue on the backplane edge connector. Clean with isopropyl alcohol before seating the replacement.
4. Verify output voltage at the test points before re-inserting controller cards. 5 VDC ± 2% and 24 VDC ± 5% are the acceptance thresholds. Out-of-tolerance output on a new PSU indicates a backplane short — do not proceed without isolating the fault.
5. No DIP switch or address configuration is required for the SPS5785 — it is a passive supply module. However, if your cabinet uses a redundant PSU pair, confirm the load-sharing jumper on the backplane is set correctly after replacement.
6. Firmware note: The PSU itself carries no firmware. However, after restoration, perform a full controller download from your Experion PKS engineering station to clear any latched diagnostic alarms before handing back to operations.

Reliability in Harsh Conditions

Process plants are not server rooms. The SPS5785 was engineered for environments where ambient temperatures swing 40 degrees between day and night shifts, where vibration from compressors and pumps is constant background noise, and where humidity from steam leaks or coastal air is a daily reality.

The module’s switching topology uses wide-input regulation to maintain stable output across AC input variations of ±15% — critical in regions where grid quality is inconsistent. The PCB conformal coating provides protection against condensation and airborne contaminants, a common failure driver in coastal petrochemical facilities. Vibration tolerance is validated to IEC 60068-2-6 standards, meaning the module will not develop intermittent solder joint failures on a vibrating skid the way consumer-grade power supplies do.

Our refurbished units undergo a 48-hour burn-in cycle at elevated temperature before shipment. Any unit that shows output drift, ripple above specification, or thermal anomaly during burn-in is scrapped — not shipped. The 12-month warranty we provide is backed by this process, not just a label.

Global Express Logistics

Our dispatch hub is in Xiamen — one of China’s primary international cargo airports with direct DHL Express and FedEx Priority freight connections to major industrial hubs worldwide. Here is what the timeline looks like from your purchase order to your receiving dock:

• Hour 0–4: Order confirmed, unit pulled from stock, incoming inspection completed, anti-static packaging applied with humidity indicator card.
• Hour 4–8: Commercial invoice, packing list, and certificate of origin prepared. Export classification confirmed under HS Code 8537.10. Shipment booked with DHL Express or FedEx International Priority depending on destination.
• Hour 8–24: Unit collected by courier and in transit to Xiamen Gaoqi International Airport.
• Day 2–4: Delivery to most destinations in Europe, North America, Southeast Asia, and the Middle East via DHL Express Worldwide or FedEx International Priority.
• Day 3–6: Delivery to South America, Africa, and remote industrial sites via available express routing.

All shipments include real-time tracking, and we proactively notify you at each milestone. For sites with import duty sensitivities, we can provide DAP or DDP Incoterms with pre-paid customs clearance. Sea freight consolidation is available for multi-unit orders where timeline permits.
